Overview

An automated alert flagged unusual XML processing activity on a web server. Analysis of the provided PCAP reveals a full attack chain — port scanning, directory enumeration via Gobuster, XXE injection to read sensitive server files, credential theft leading to MySQL access, and finally webshell upload for persistent RCE.

Investigation

Port Scan Detection

Filtering for completed TCP handshakes identifies the attacker’s initial reconnaissance:

bash

tcp.flags.syn == 1 && tcp.flags.ack == 1

The highest open port discovered on the victim web server was 3306 — MySQL, which becomes significant later in the attack chain.

Directory Enumeration

The attacker used Gobuster 3.6 to brute-force the web server, discovering the vulnerable upload endpoint:

Vulnerable URI: /review/upload.php

XXE Injection — File Read

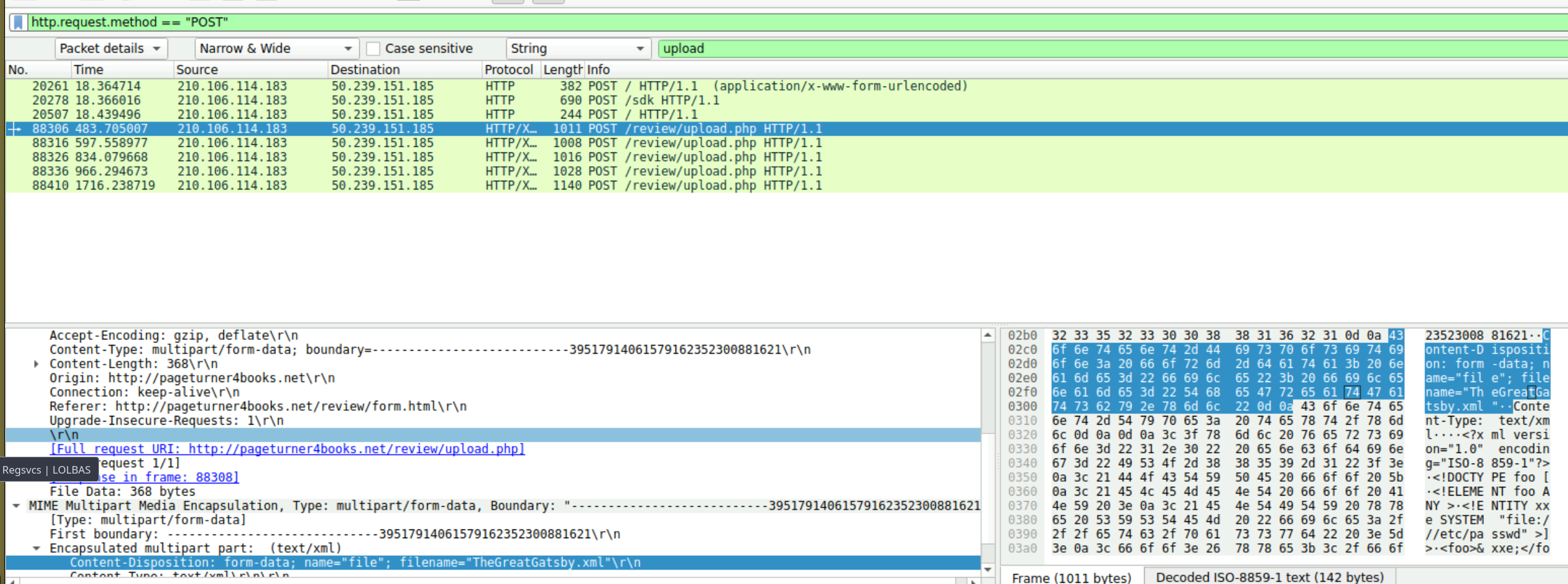

Filtering for POST requests reveals the attacker’s XXE payload delivery:

bash

http.request.method == "POST"


The first malicious XML file uploaded was TheGreatGatsby.xml — containing an XXE payload targeting the server’s filesystem. The payload read the web application configuration file directly from the server:

Target: file:///var/www/html/config.php

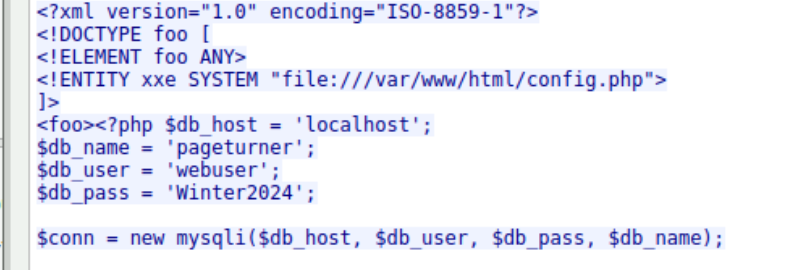

The response exposed database credentials stored in plaintext within config.php:


Credential Value
Database User webuser
Password Winter2024

MySQL Access

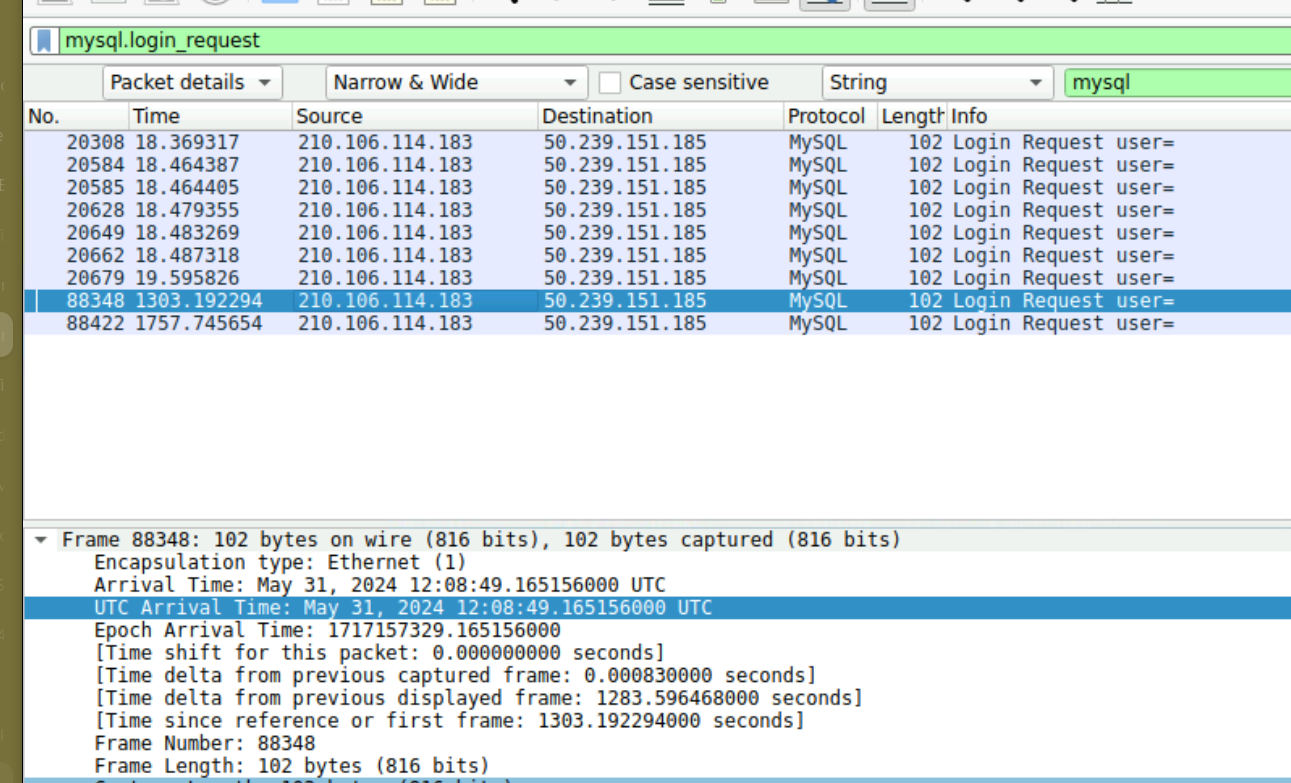

With credentials in hand the attacker connected directly to the MySQL server on port 3306. Filtering for the login request:

bash

mysql.login_request


Initial MySQL connection timestamp: 2024-05-31 12:08

Webshell Upload — Persistence

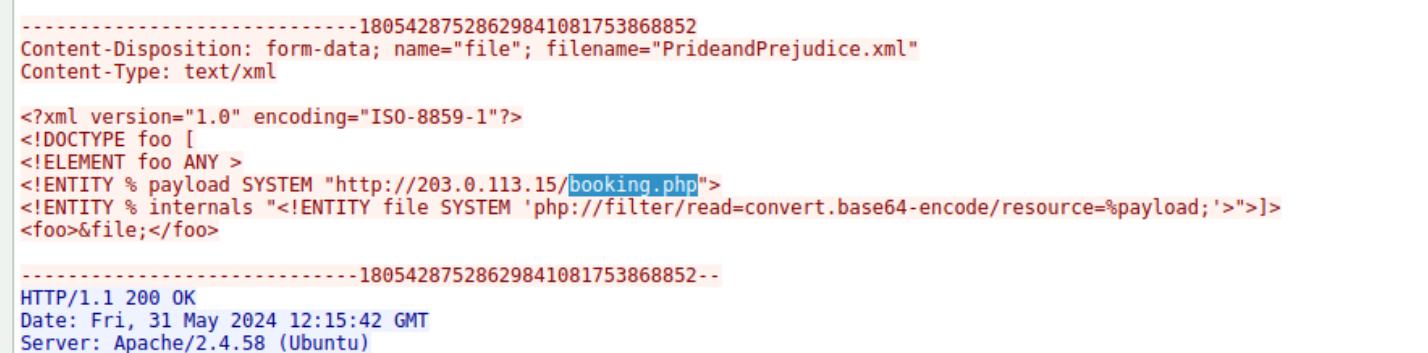

Following database access the attacker uploaded a PHP webshell to establish persistent remote code execution on the server:

Webshell filename: booking.php


booking.php provided the attacker with ongoing RCE capability, surviving any credential rotation that may follow incident response.

IOCs

Type Value
Port 3306
URI /review/upload.php
Filename TheGreatGatsby.xml
Filename config.php
Filename booking.php
Credential webuser:Winter2024

MITRE ATT&CK

Technique ID
Network Service Discovery T1046
Exploit Public-Facing Application T1190
Server Software Component: Web Shell T1505.003
Credentials in Files T1552.001
Command and Scripting Interpreter: PHP T1059.006

Lessons Learned

XXE injection remains a critical risk in any application processing user-supplied XML without disabling external entity resolution. Storing database credentials in plaintext config files within the web root compounds the impact significantly — a single file read vulnerability escalated to full database compromise and persistent access. Detection opportunities exist at each stage: anomalous XML POST requests, unexpected outbound filesystem reads in application logs, and direct database connections from the web server process rather than the application layer.

Identifying the open ports discovered by an attacker helps us understand which services are exposed and potentially vulnerable. Can you identify the highest-numbered port that is open on the victim's web server?
Click flag to reveal 3306
By identifying the vulnerable PHP script, security teams can directly address and mitigate the vulnerability. What's the complete URI of the PHP script vulnerable to XXE Injection?
Click to reveal answer /review/upload.php
To construct the attack timeline and determine the initial point of compromise. What's the name of the first malicious XML file uploaded by the attacker?
Click flag to reveal TheGreatGatsby.xml
Understanding which sensitive files were accessed helps evaluate the breach's potential impact. What's the name of the web app configuration file the attacker read?
Click to reveal answer config.php
To assess the scope of the breach, what is the password for the compromised database user?
Click flag to reveal Winter2024
Following the database user compromise. What is the timestamp of the attacker's initial connection to the MySQL server using the compromised credentials after the exposure?
Click to reveal answer ANSWER
To eliminate the threat and prevent further unauthorized access, can you identify the name of the web shell that the attacker uploaded for remote code execution and persistence?
Click flag to reveal booking.php
