Volatility Traces Lab Writeup

Overview

This investigation focused on analyzing a Windows memory dump using Volatility to identify suspicious processes, persistence mechanisms, defense evasion activity, and the user account associated with malicious behavior.

Only three primary plugins were required:

windows.psscan
windows.cmdline
windows.getsids

The analysis revealed malicious PowerShell execution, antivirus exclusions being added, and suspicious executables linked to a specific user account.

---

Evidence Source

Memory Image
memory.dmp

Tool Used
Volatility 3

---

Step 1 – Identify Suspicious Parent Process

Command used:

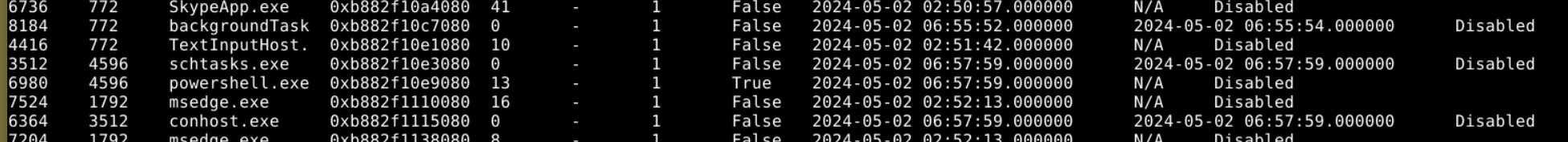

`python3 vol.py -f memory.dmp windows.psscan

The scan revealed a suspicious executable:

InvoiceCheckList.exe

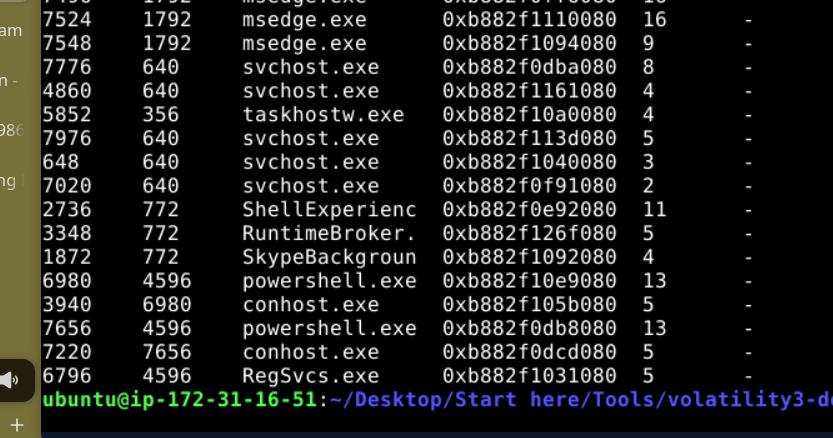

Further review showed that this process spawned two malicious PowerShell processes.

Suspicious parent process
InvoiceCheckList.exe

Step 2 – Analyze Process Command Lines

Command used:

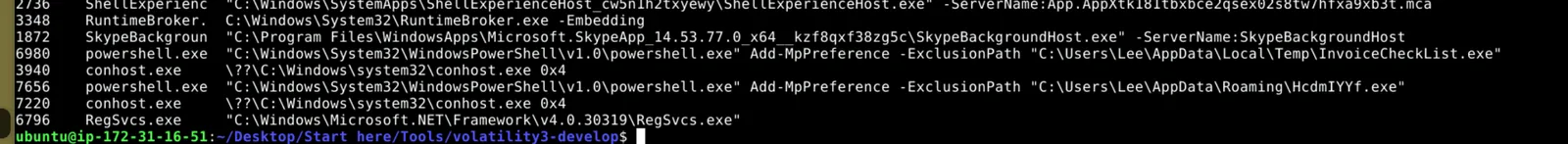

`python3 vol.py -f memory.dmp windows.cmdline The cmdline output revealed:

InvoiceCheckList.exe
HcdmIYYf.exe

The PowerShell processes were launched with parameters modifying Windows Defender settings using Add-MpPreference with ExclusionPath.

This confirms defense evasion and persistence.

Step 3 – Identify Defense Evasion Technique

From the PowerShell command line analysis:

The malware used the PowerShell cmdlet:

Add-MpPreference

This cmdlet was used to modify antivirus exclusions.

The malware excluded two applications from protection.

Excluded applications
InvoiceCheckList.exe
HcdmIYYf.exe

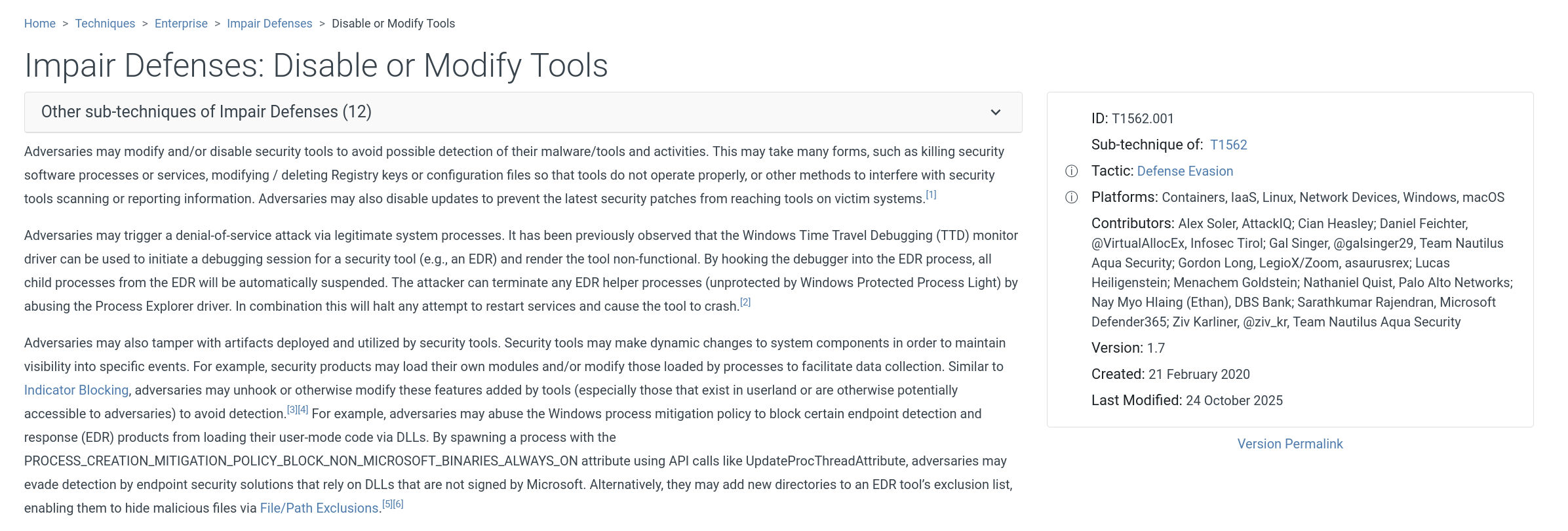

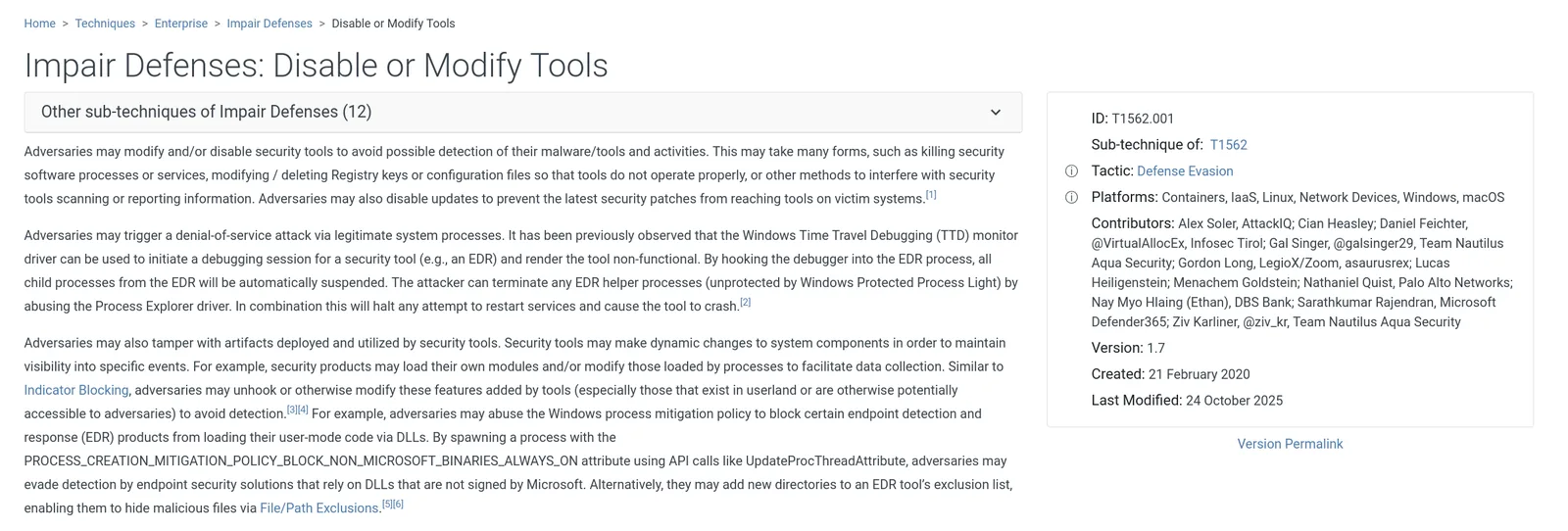

This behavior aligns with MITRE ATTACK sub-technique:

T1562.001
Impair Defenses Disable or Modify Tools

Step 4 – Identify Associated User Account

Command used:

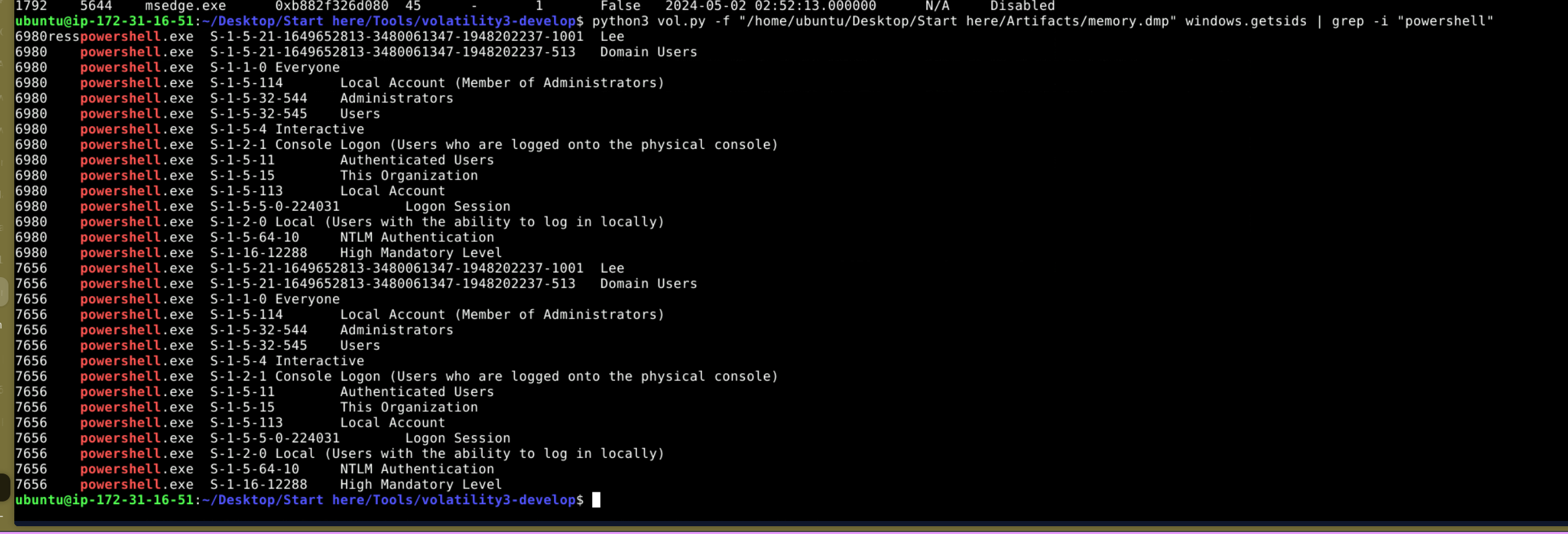

`python3 vol.py -f memory.dmp windows.getsids

grep -i powershell

The SID mapping revealed the user account associated with the malicious PowerShell processes:

lee

IOCs

Type	Value
pid 4596	InvoiceCheckList.exe
pid 4596	HcdmIYYf.exe
pid 4596	powershell.exe
user	lee

Timeline Summary

1. InvoiceCheckList.exe executed

2. Spawned two malicious PowerShell processes

3. PowerShell used Add-MpPreference to exclude files from Defender

4. HcdmIYYf.exe identified as persistence executable

5. Malware activity tied to local user account lee

---

Key Findings

• Malicious parent process identified

• Persistence executable confirmed

• Antivirus exclusions added via PowerShell

• MITRE technique mapped to T1562.001

• Activity attributed to user lee

---

Lessons Learned

• psscan is useful for detecting hidden or terminated processes

• cmdline reveals attacker intent clearly through parameters

• getsids links malicious processes to user accounts

• Add-MpPreference is a strong indicator of defense evasion

• Mapping findings to MITRE enhances reporting quality

---

Conclusion

The investigation successfully identified the malicious process chain, persistence mechanism, defense evasion technique, and associated user account using minimal but effective Volatility plugins.

This lab reinforces the importance of:

Process hierarchy analysis
Command-line inspection
SID correlation
MITRE ATTACK mapping
