Shadow Token Symphony - APT29

Scenario

InfiniteTechSolutions recently experienced suspicious activity in their Azure environment. Using Microsoft Sentinel, the security team detected unusual login patterns, unauthorized service installations, and anomalous API calls targeting their Microsoft Graph endpoint. Multiple user accounts appear to have been compromised, and there are signs of privilege escalation and persistent access mechanisms being established. The incident occurred in July 2025, with activities spanning across various systems including workstations and cloud services.

---

Methodology

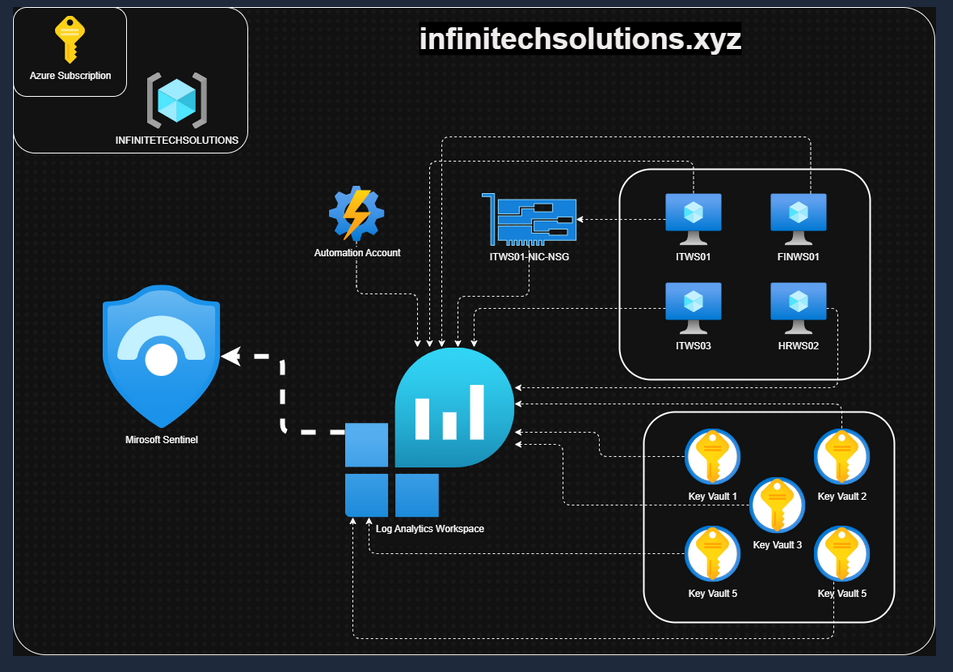

This lab spans five log sources ingested as custom tables into a Log Analytics workspace: Event_CL (Windows Security events), SigninLogs_CL (Azure AD interactive sign-ins), AADNonInteractiveUserSignInLogs_CL (token-based silent auths), MicrosoftGraphActivityLogs_CL (Graph API calls), and AzureDiagnostics_CL / AuditLogs_CL (Azure resource and directory audit events). All tables use the custom log _CL suffix, meaning native Sentinel field names don’t apply — schema needs to be confirmed via getschema before querying, and familiar fields like TimeGenerated may not reflect the actual event time. CreatedDateTime is the authoritative timestamp in the Azure AD log tables.

Phase 1 — On-Prem Reconnaissance and Initial Access

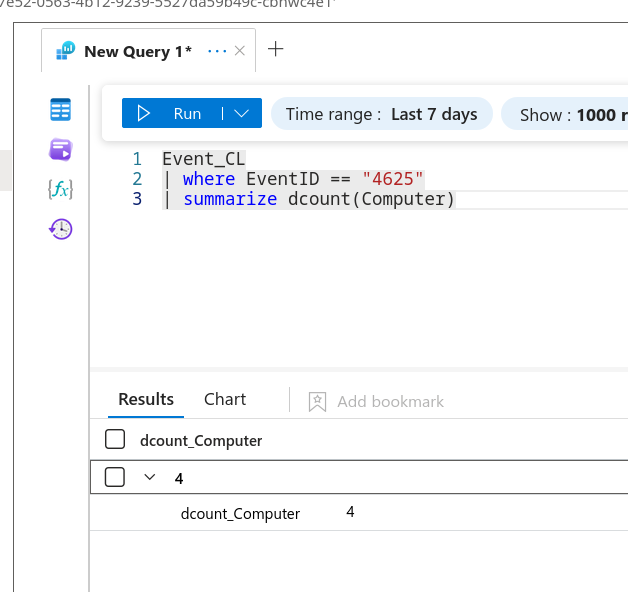

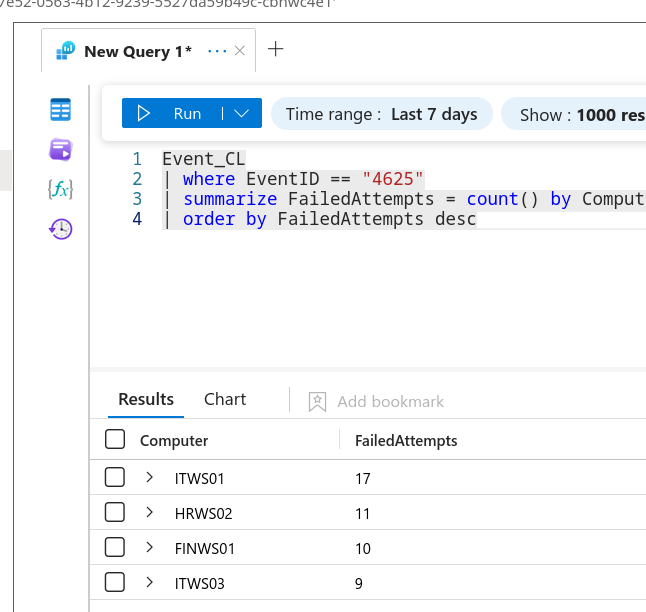

The first pivot is Windows event logs. Querying Event_CL for EventID 4625 (failed logon) across all machines reveals the breadth of the initial brute force — four distinct computers with login failures, with ITWS01 taking the heaviest volume at 17 failed attempts.

Event_CL
| where EventID == "4625"
| summarize dcount(Computer)

Event_CL
| where EventID == "4625"
| summarize FailedAttempts = count() by Computer
| order by FailedAttempts desc

The failed logon events on ITWS01 contain TargetUserName: ADMINISTRATOR sourced from 80.94.95.75 via NTLM LogonType 3 — a network brute force against the local administrator account from an external IP. Successful 4624 events from the same IP confirm the attacker eventually got in.

Phase 2 — Lateral Movement via PsExec-Style Service Install

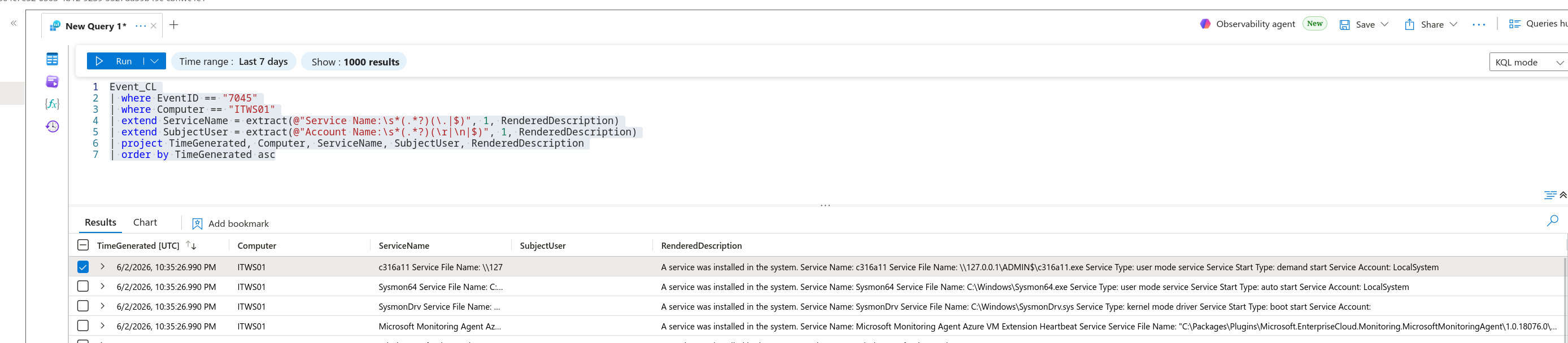

With the ADMINISTRATOR account compromised, the attacker used PsExec-style execution to establish a foothold on ITWS01. EventID 7045 (service installed) surfaces a service named c316a11 — a random hex string characteristic of PsExec’s auto-generated service naming. The image path \\127.0.0.1\ADMIN$\c316a11.exe confirms execution via the admin share against the local machine, indicating the attacker was running PsExec from an already-authenticated session.

Event_CL
| where EventID == "7045"
| where Computer == "ITWS01"
| extend ServiceName = extract(@"Service Name:\s*(.*?)(\.|$)", 1, RenderedDescription)
| project TimeGenerated, Computer, ServiceName, RenderedDescription
| order by TimeGenerated asc

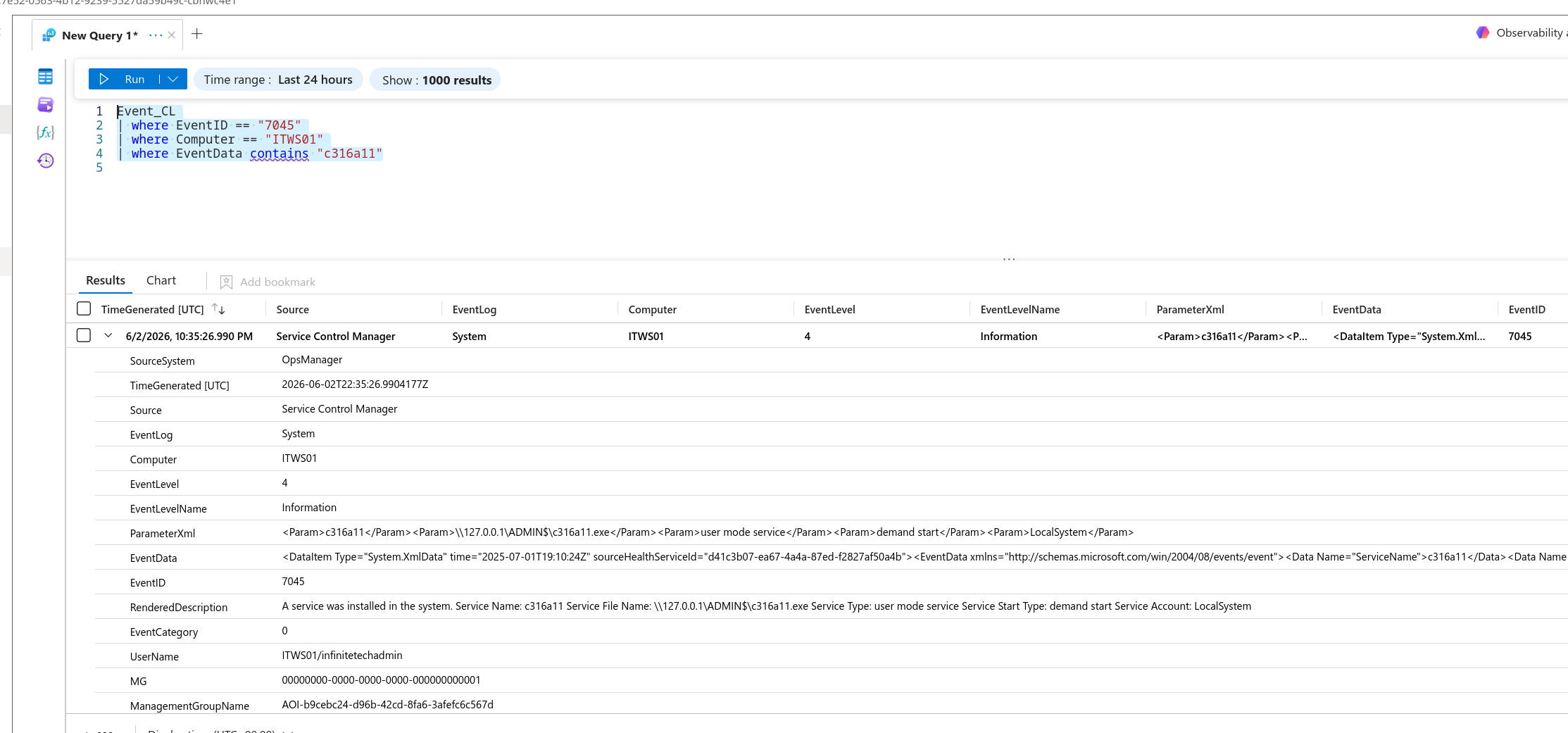

The 7045 event only records LocalSystem as the service run-as account — it does not capture who issued the install. The installing account lives in the UserName field on the raw event record, not inside the EventData XML. Expanding the full row for the c316a11 event reveals ITWS01/infinitetechadmin as the account that ran the PsExec session.

Event_CL
| where EventID == "7045"
| where Computer == "ITWS01"
| where EventData contains "c316a11"

Phase 3 — Azure AD Password Spray

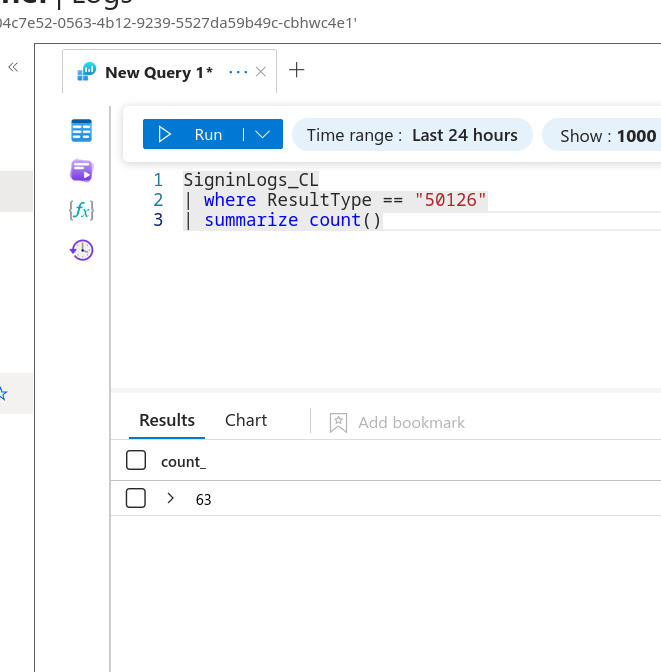

With a foothold established on the endpoint, the attacker pivoted to Azure AD. Querying SigninLogs_CL for ResultType == "50126" (invalid username or password) gives the total spray volume — 63 failed authentication attempts across the tenant.

SigninLogs_CL
| where ResultType == "50126"
| summarize count()

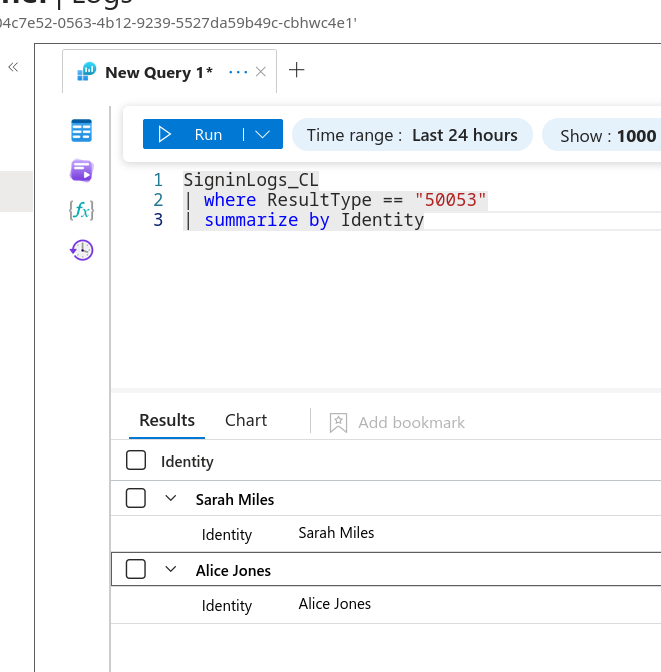

Two accounts hit the lockout threshold during the spray. ResultType == "50053" (account locked out) identifies them as Sarah Miles and Alice Jones — both generating lockout events that signal the spray was running fast enough to exceed the tenant’s lockout policy.

SigninLogs_CL
| where ResultType == "50053"
| summarize by Identity

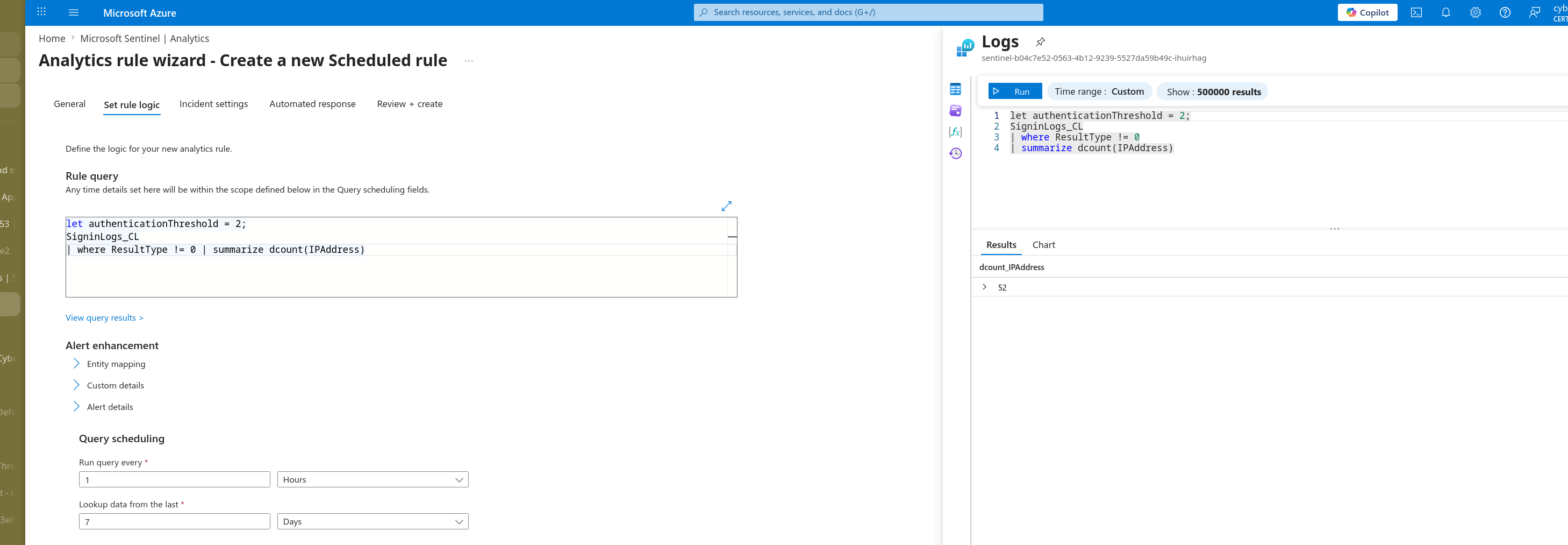

To count the unique IPs involved in the spray, the correct approach is to exclude successes rather than enumerate specific failure codes. Using ResultType != 0 captures 50126 failures and 50053 lockout events in a single pass — the same logic as EventID != 4624 in Windows logon monitoring. Filtering only on 50126 undercounts by missing the lockout IPs, which is how we ended up one short repeatedly before flipping the logic. The correct count is 52 unique IPs.

SigninLogs_CL
| where ResultType != 0
| summarize dcount(IPAddress)

Phase 4 — Initial Cloud Compromise

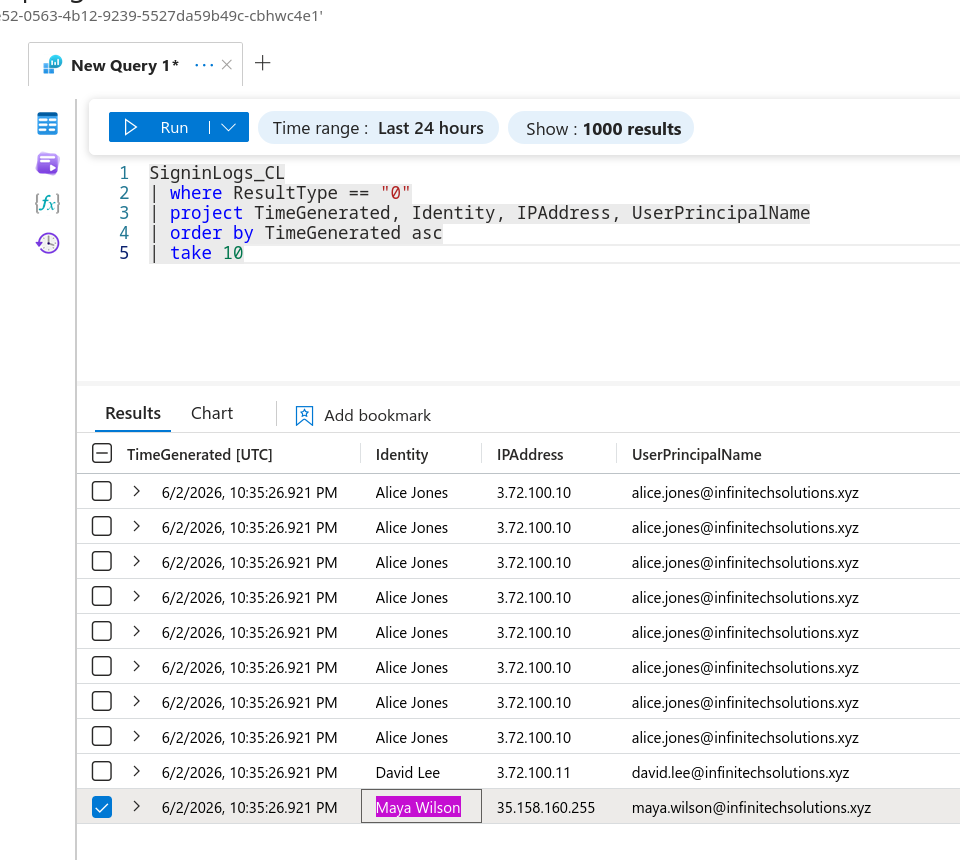

Filtering SigninLogs_CL for ResultType == "0" and ordering by CreatedDateTime ascending identifies the first successful authentication. Maya Wilson authenticated from 35.158.160.255 at 2025-07-01 19:21. Alice Jones also shows successful logins but from the 3.72.100.x range — consistent with the corporate subnet visible throughout the logs. The attacker IP 35.158.160.255 is the distinguishing factor.

SigninLogs_CL
| where ResultType == "0"
| project TimeGenerated, CreatedDateTime, Identity, IPAddress, UserPrincipalName
| order by CreatedDateTime asc
| take 10

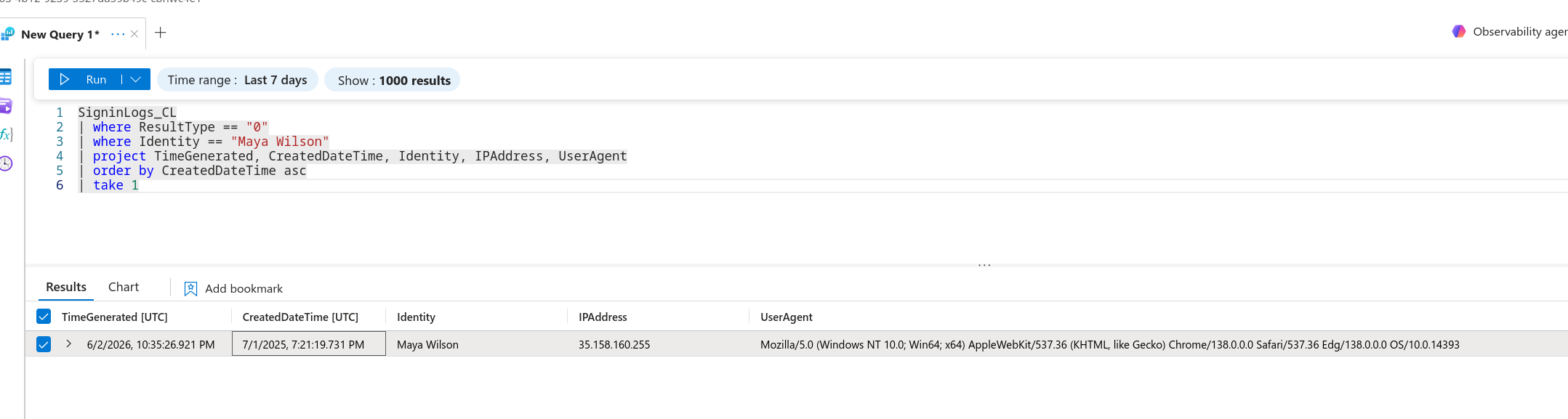

Filtering specifically on Maya Wilson and projecting UserAgent alongside CreatedDateTime confirms the timestamp and surfaces the attacker’s browser fingerprint — a modern Edge build on Windows 10.

SigninLogs_CL
| where ResultType == "0"
| where Identity == "Maya Wilson"
| project TimeGenerated, CreatedDateTime, Identity, IPAddress, UserAgent
| order by CreatedDateTime asc
| take 1

Phase 5 — Token Abuse and Silent Authentication

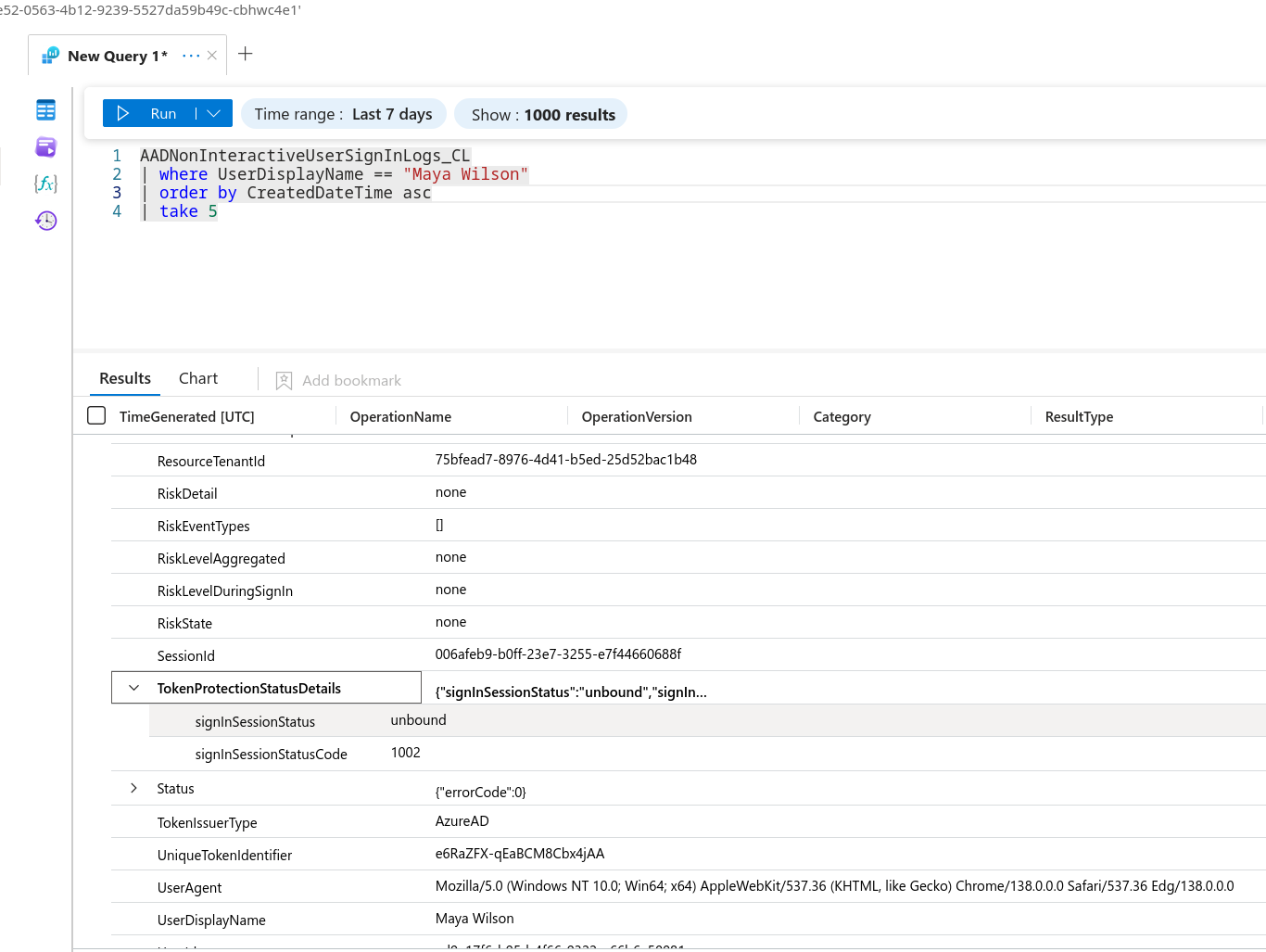

Four minutes after the initial interactive login, the attacker began non-interactive authentication — silent token reuse that leaves a much lighter footprint than repeated interactive logins. AADNonInteractiveUserSignInLogs_CL confirms the first silent auth from 35.158.160.255 at 2025-07-01T19:25:14Z. The token type leveraged is a refreshToken — obtained from the initial interactive session and reused silently across subsequent requests to Azure Resource Manager without triggering MFA or Conditional Access re-evaluation.

AADNonInteractiveUserSignInLogs_CL
| where UserDisplayName == "Maya Wilson"
| project TimeGenerated, CreatedDateTime, UserDisplayName, IPAddress, IncomingTokenType
| order by CreatedDateTime asc
| take 5

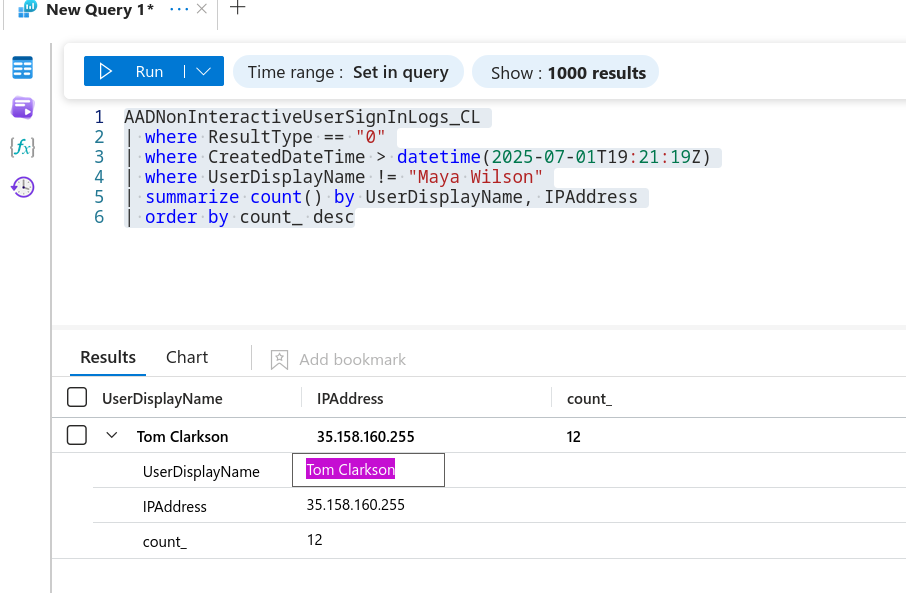

Pivoting to non-interactive auths after the compromise timestamp and excluding Maya Wilson surfaces a second compromised account — Tom Clarkson, with 12 silent auth events from the same attacker IP. This indicates the attacker either compromised Tom’s credentials separately or pivoted to his account via token theft.

AADNonInteractiveUserSignInLogs_CL
| where ResultType == "0"
| where CreatedDateTime > datetime(2025-07-01T19:21:19Z)
| where UserDisplayName != "Maya Wilson"
| summarize count() by UserDisplayName, IPAddress
| order by count_ desc

Phase 6 — Graph API Reconnaissance

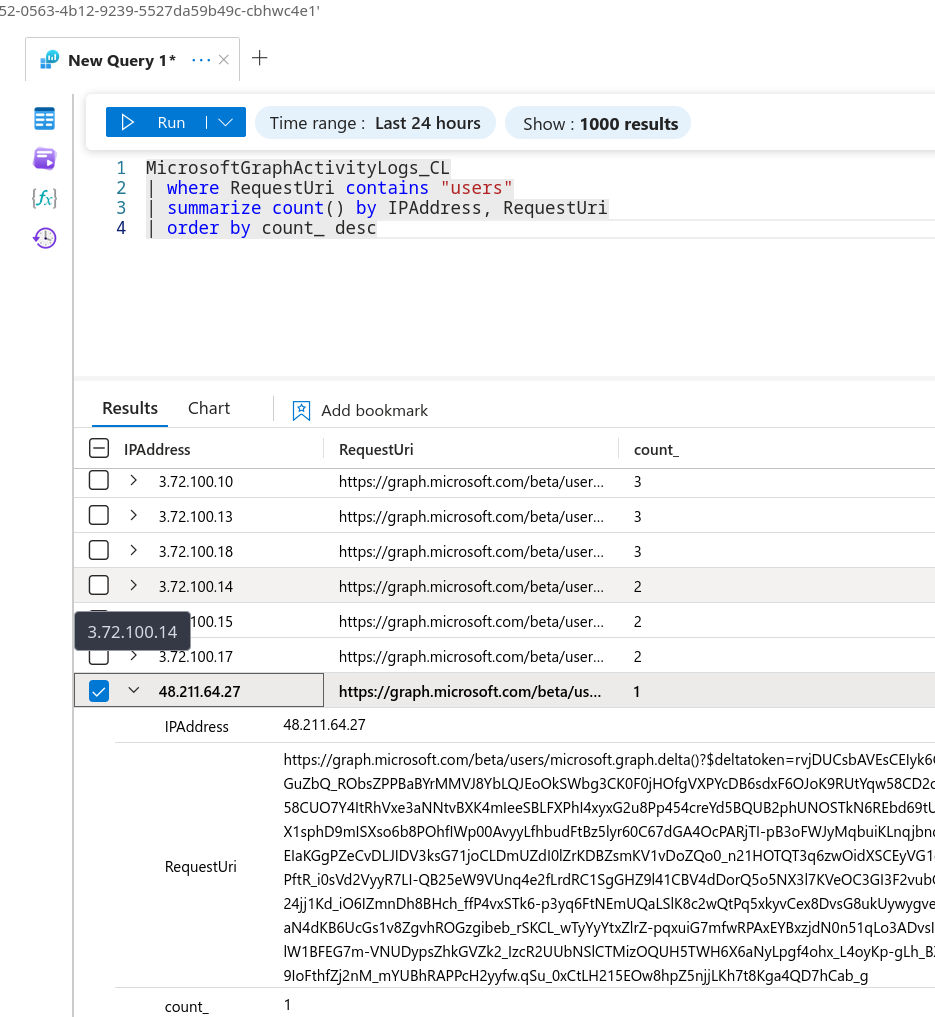

With valid tokens in hand, the attacker queried Microsoft Graph for directory intelligence across two separate IPs. From 48.211.64.27, the delta sync endpoint was called — https://graph.microsoft.com/beta/users/microsoft.graph.delta(). The delta sync pattern is particularly efficient for directory harvesting: a single call returns the full user list, and the returned deltatoken enables incremental syncs to track any subsequent changes without re-pulling the entire directory.

MicrosoftGraphActivityLogs_CL
| where RequestUri contains "users"
| summarize count() by IPAddress, RequestUri
| order by count_ desc

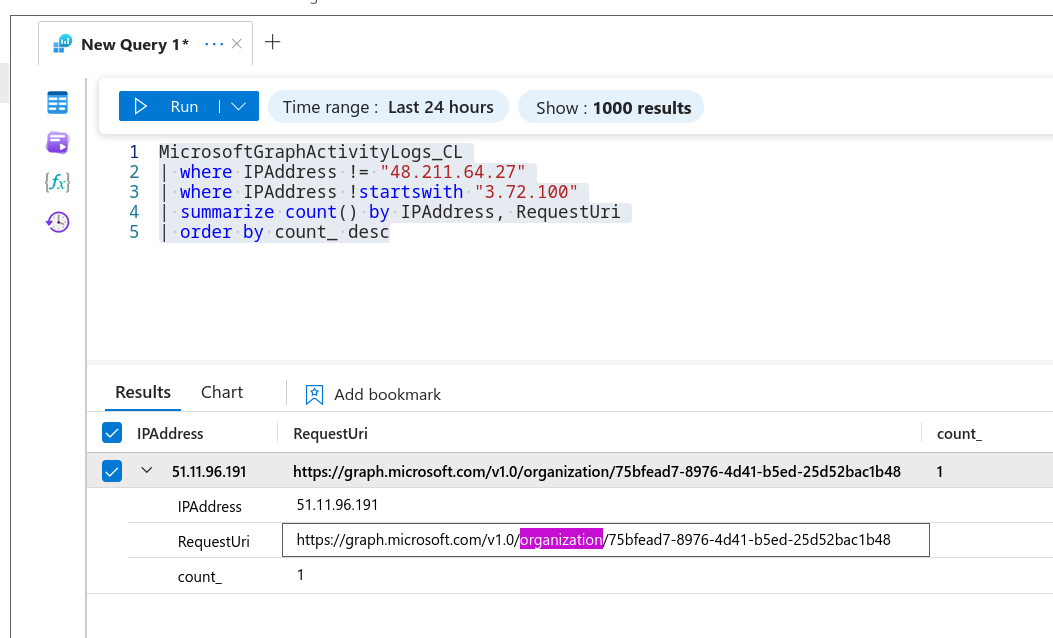

From a separate IP, 51.11.96.191, the attacker queried the organization endpoint — pulling tenant-level configuration including verified domains and tenant ID, useful for downstream phishing infrastructure and identifying trust relationships.

MicrosoftGraphActivityLogs_CL
| where IPAddress != "48.211.64.27"
| where IPAddress !startswith "3.72.100"
| summarize count() by IPAddress, RequestUri
| order by count_ desc

Phase 7 — Automation Account Persistence

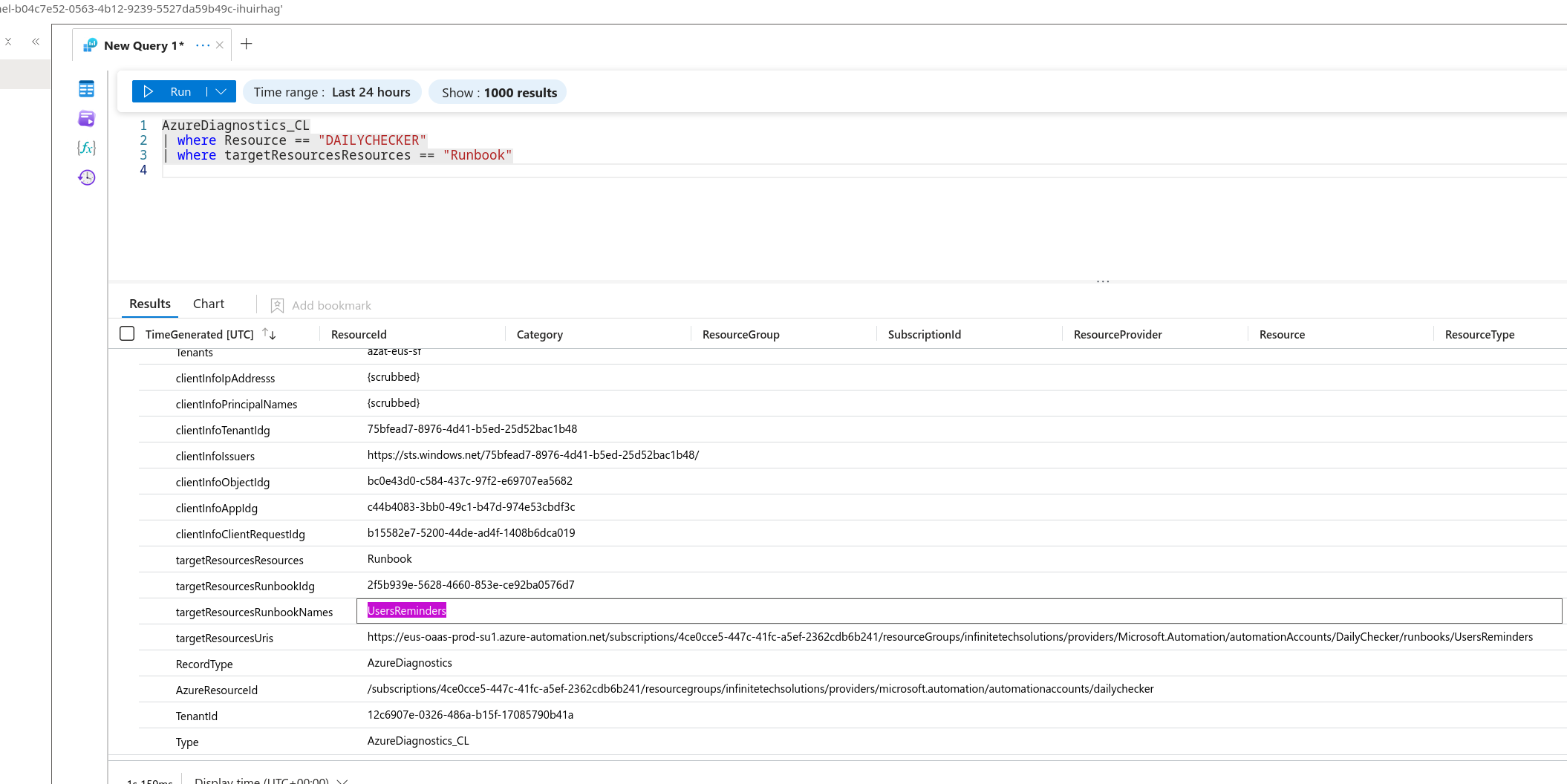

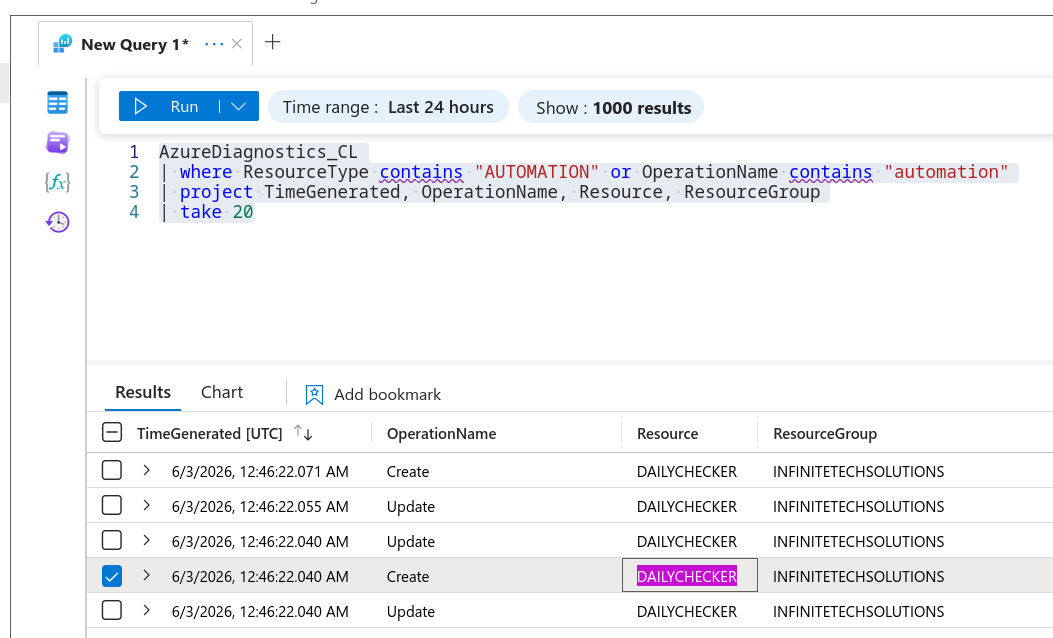

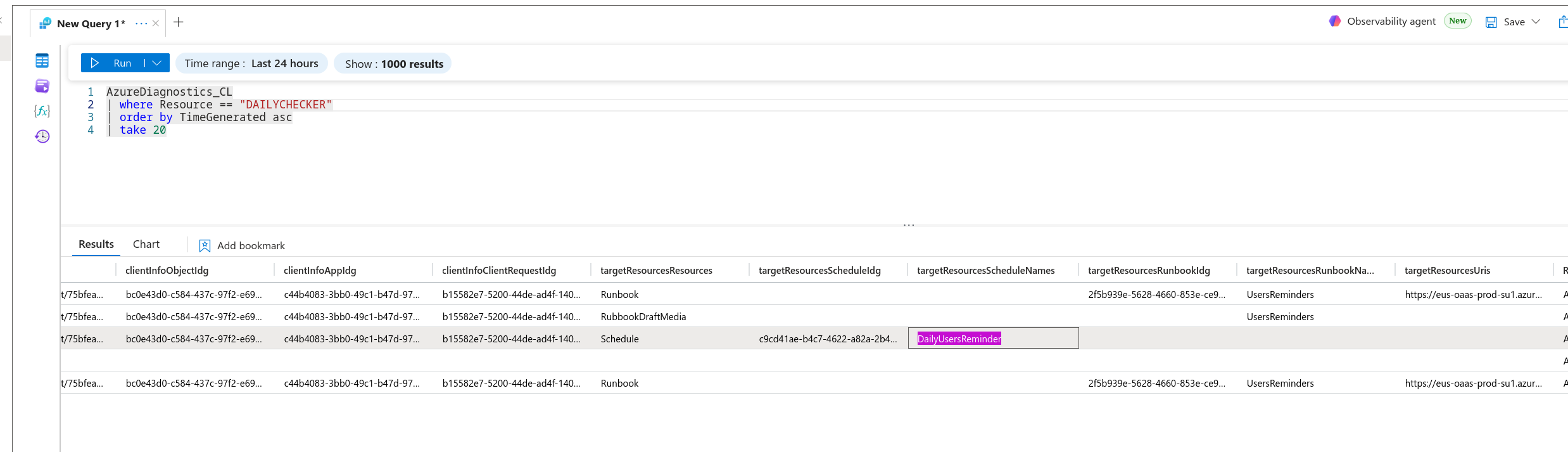

The attacker compromised the DAILYCHECKER Azure Automation account and created a runbook named UsersReminders, linked to a schedule named DailyUsersReminder. Unlike endpoint-based persistence mechanisms, Automation runbooks survive reimaging, password resets, and most IR playbooks — they execute in Azure’s compute infrastructure independently of any on-prem endpoint state.

AzureDiagnostics_CL
| where ResourceType contains "AUTOMATION" or OperationName contains "automation"
| project TimeGenerated, OperationName, Resource, ResourceGroup
| take 20

AzureDiagnostics_CL
| where Resource == "DAILYCHECKER"
| where targetResourcesResources == "Runbook"

AzureDiagnostics_CL
| where Resource == "DAILYCHECKER"
| order by TimeGenerated asc
| take 20

Phase 8 — Privilege Escalation via Application Ownership

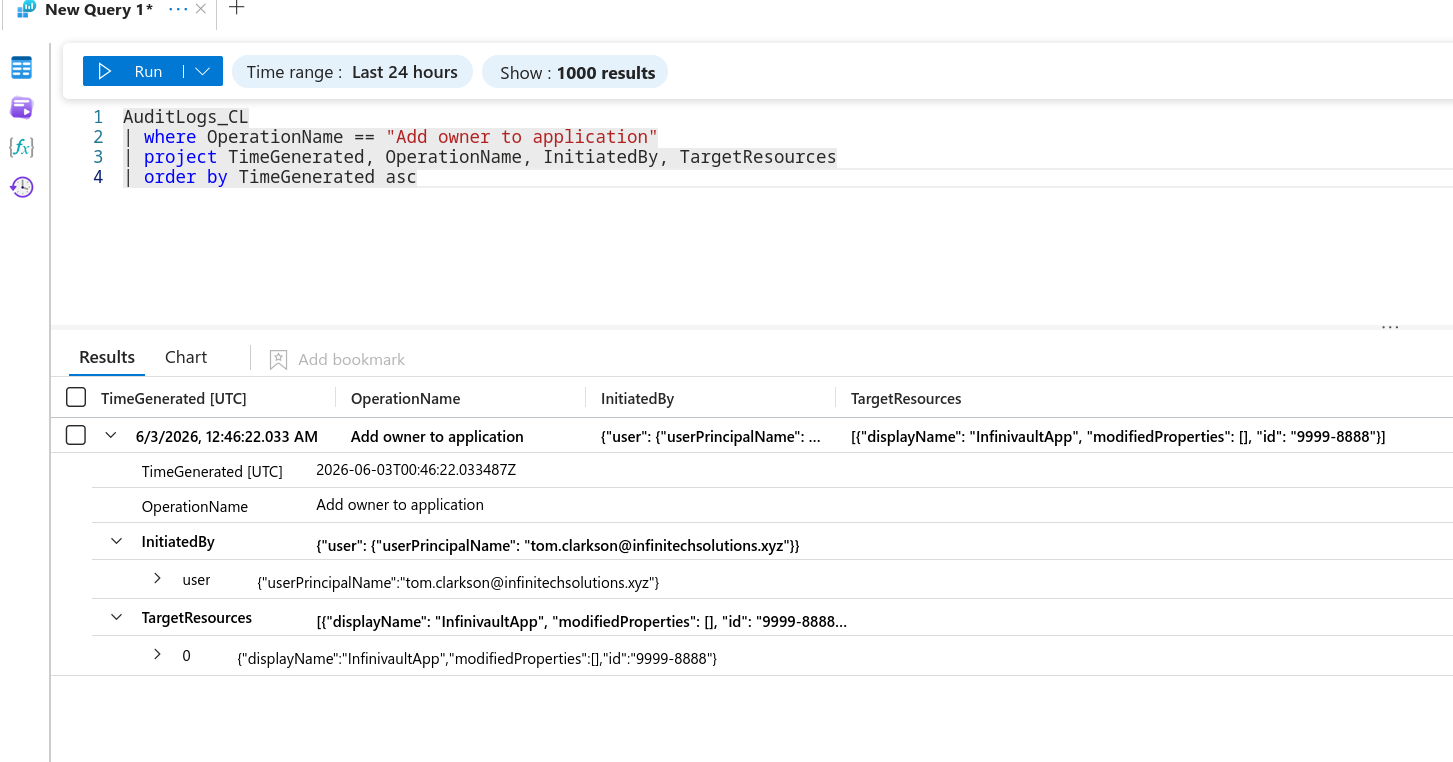

Several hours post-compromise, Tom Clarkson’s account executed an Add owner to application operation against InfinivaultApp (application ID 9999-8888). Adding ownership to an Azure AD application grants full control over its credentials and API permissions — the owner can add new client secrets or certificates, effectively inheriting the application’s full permission scope. This is a low-noise escalation path compared to direct role assignments, appearing only in AuditLogs as a single event.

AuditLogs_CL
| where OperationName == "Add owner to application"
| project TimeGenerated, OperationName, InitiatedBy, TargetResources
| order by TimeGenerated asc

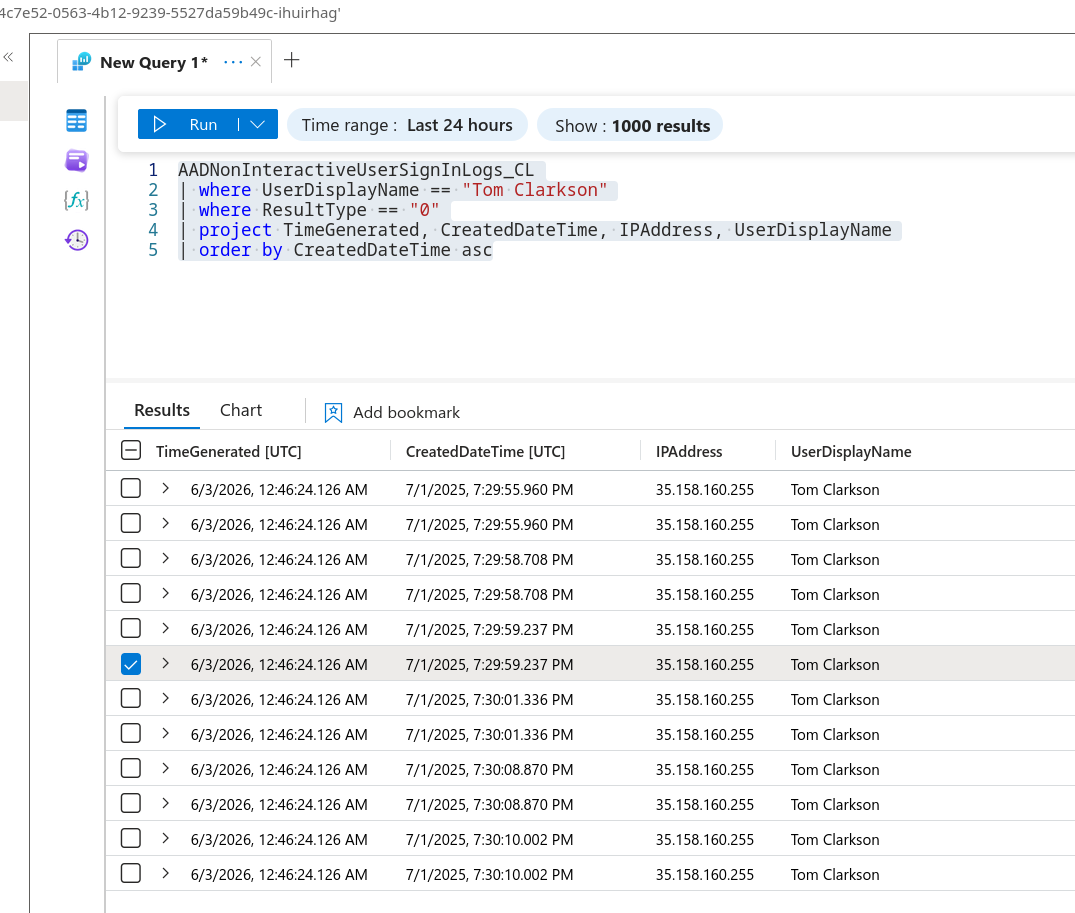

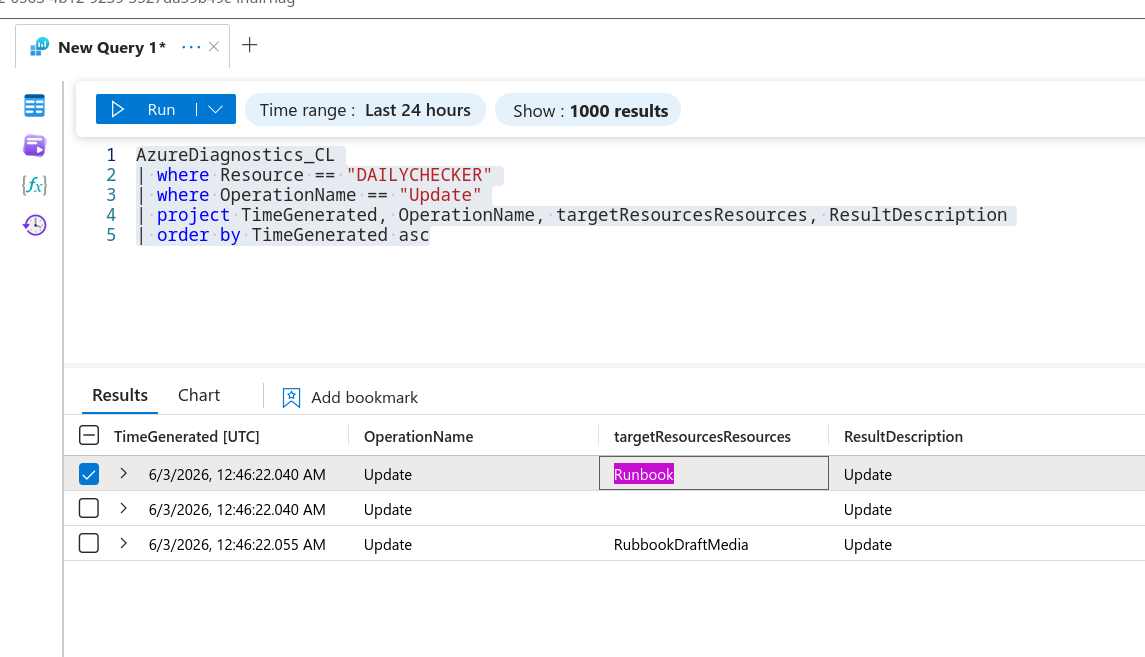

With elevated application permissions secured, the attacker returned to DAILYCHECKER and updated the UsersReminders runbook — embedding new payload or credentials reflecting the escalated privilege level. Tom Clarkson’s non-interactive auth sessions from 35.158.160.255 confirm that IP as the source of the automation updates.

AzureDiagnostics_CL
| where Resource == "DAILYCHECKER"
| where OperationName == "Update"
| project TimeGenerated, OperationName, targetResourcesResources, ResultDescription
| order by TimeGenerated asc

AADNonInteractiveUserSignInLogs_CL
| where UserDisplayName == "Tom Clarkson"
| where ResultType == "0"
| project TimeGenerated, CreatedDateTime, IPAddress, UserDisplayName
| order by CreatedDateTime asc

Phase 9 — Key Vault Exfiltration

The final phase targets secrets storage. AzureDiagnostics_CL filtered for Key Vault operations reveals three vaults accessed: CORP-KV-PROD, INFRA-BACKUP-KV, and FINANCE-KV-EU — spanning production credentials, infrastructure backup keys, and finance-scoped secrets. The breadth of vaults accessed suggests the attacker had mapped the tenant’s Key Vault inventory during the Graph API recon phase and targeted them systematically.

AzureDiagnostics_CL
| where OperationName contains "Secret" or OperationName contains "vault"
| summarize count() by Resource

---

Attack Summary

Phase	Action
Reconnaissance	NTLM brute force against ADMINISTRATOR from 80.94.95.75 across 4 workstations
Initial Access	ADMINISTRATOR account compromised on ITWS01
Lateral Movement	PsExec-style service c316a11 installed via \\127.0.0.1\ADMIN$ using infinitetechadmin
Credential Access	Azure AD password spray — 63 failed attempts, 52 unique IPs, 2 accounts locked
Initial Cloud Compromise	Maya Wilson compromised at 2025-07-01 19:21 from 35.158.160.255
Persistence (Token)	refreshToken reuse via non-interactive auth — Maya Wilson then Tom Clarkson
Discovery	Graph API delta sync from 48.211.64.27 — full user directory harvested
Discovery	Organization endpoint queried from 51.11.96.191 — tenant config enumerated
Persistence (Cloud)	DAILYCHECKER automation account — UsersReminders runbook + DailyUsersReminder schedule
Privilege Escalation	Tom Clarkson added as owner of InfinivaultApp (9999-8888)
Defense Evasion	Runbook updated post-escalation to embed elevated-privilege payload
Exfiltration	CORP-KV-PROD, INFRA-BACKUP-KV, FINANCE-KV-EU secrets accessed

---

IOCs

Type	Value
IP (Brute Force Source)	80[.]94[.]95[.]75
IP (Cloud Attacker C2)	35[.]158[.]160[.]255
IP (Graph Recon — Users)	48[.]211[.]64[.]27
IP (Graph Recon — Org)	51[.]11[.]96[.]191
Account (On-Prem Compromised)	ITWS01/infinitetechadmin
Account (Cloud Compromised)	maya.wilson@infinitechsolutions[.]xyz
Account (Cloud Lateral)	tom.clarkson@infinitechsolutions[.]xyz
Service (Malicious)	c316a11
Service Path	\127[.]0[.]0[.]1\ADMIN$\c316a11.exe
Automation Account	DAILYCHECKER
Runbook	UsersReminders
Schedule	DailyUsersReminder
Application	InfinivaultApp (9999-8888)
Key Vault	CORP-KV-PROD
Key Vault	INFRA-BACKUP-KV
Key Vault	FINANCE-KV-EU

---

MITRE ATT&CK

Technique	ID	Description
Valid Accounts: Cloud Accounts	T1078.004	Maya Wilson and Tom Clarkson cloud accounts compromised and abused
Brute Force: Password Spraying	T1110.003	52 unique IPs across 63 failed auth attempts against Azure AD
Create or Modify System Process: Windows Service	T1543.003	c316a11 PsExec-style service installed on ITWS01
Steal Application Access Token	T1528	refreshToken reused for non-interactive silent authentication
Use Alternate Authentication Material: Application Access Token	T1550.001	Token reuse across Maya Wilson and Tom Clarkson sessions
Create Cloud Instance	T1136.003	UsersReminders runbook created in DAILYCHECKER automation account
Account Manipulation: Additional Cloud Roles	T1098.003	Tom Clarkson added as owner of InfinivaultApp
Data from Cloud Storage	T1530	CORP-KV-PROD, INFRA-BACKUP-KV, FINANCE-KV-EU Key Vaults accessed
Cloud Service Discovery	T1526	Graph API delta sync and organization endpoint enumerated
Account Discovery: Cloud Account	T1087.004	Graph delta endpoint used to harvest full Azure AD user directory

---

Defender Takeaways

Monitor AADNonInteractiveUserSignInLogs for token reuse from anomalous IPs. This is a log source many orgs don’t actively alert on. Silent auth events from unexpected geolocations or IPs appearing shortly after an interactive login from the same source are a strong signal of token theft. The 4-minute gap between Maya Wilson’s interactive login and first non-interactive auth is exactly the window a defender needs to catch — a Sentinel analytic rule correlating interactive and non-interactive sign-ins from the same IP within a short time window provides durable coverage.

Use ResultType != 0 for spray detection, not specific error codes. Enumerating failure codes like 50126 misses lockout events (50053) and other failure conditions, undercounting the true attacker IP footprint. The correct pattern excludes successes rather than enumerating failures — identical logic to excluding EventID 4624 in Windows logon monitoring. A single where ResultType != 0 is more complete and resilient to novel error codes than a maintained list of known failure types.

Graph API delta sync is a high-fidelity recon indicator. Legitimate applications using delta sync have consistent, predictable calling patterns tied to a registered app identity. A one-off delta query from an IP with no prior Graph activity — particularly using the /beta/ endpoint — is a strong indicator of manual directory harvesting. MicrosoftGraphActivityLogs should be ingested into Sentinel and alerted on for delta token usage outside known application identities.

Azure Automation runbooks are a durable persistence mechanism that most IR playbooks miss. Unlike scheduled tasks or registry run keys, runbooks survive endpoint reimaging and execute independently of on-prem infrastructure. Any new runbook creation or schedule linkage in a production Automation account warrants an alert, with particular scrutiny on the create-then-schedule pattern seen here — the two events together constitute the full persistence chain.

Application ownership is a silent privilege escalation path. The Add owner to application audit event is easy to miss without a dedicated detection rule. An application owner can add new credentials to the app and inherit its full API permission scope — equivalent to a role assignment but with far less visibility. Alert on this operation for any application holding sensitive API permissions, and review application ownership as part of regular Azure AD hygiene.

---
