Rogue Azure

Overview

Azure tenant compromise investigation using KQL (Kusto Query Language) in Microsoft Sentinel. The attacker executed a password spray, compromised an admin account, registered malicious applications for persistence, escalated a second account to Global Administrator, then exfiltrated sensitive data from Azure Blob Storage.

Key lesson: Azure log tables in Sentinel use _CL suffix for custom logs — SigninLogs becomes InteractiveSignIns_CL, AuditLogs becomes AuditLogs_CL. Also allow 5-10 minutes for log ingestion after lab start, and set time range to Last 7 days.

Environment Setup

Microsoft Sentinel → Logs → KQL mode. Three tables available:

search *
| distinct $table
| order by $table asc

Stage 1 — Initial Access: Password Spray

A password spray differs from brute force — one IP attempts multiple usernames with common passwords rather than hammering a single account. Look for high failure counts across multiple target users from a single IP.

InteractiveSignIns_CL
| where Status == "Failure"
| summarize FailedAttempts = count(), TargetUsers = dcount(Username) by IPAddress
| order by FailedAttempts desc

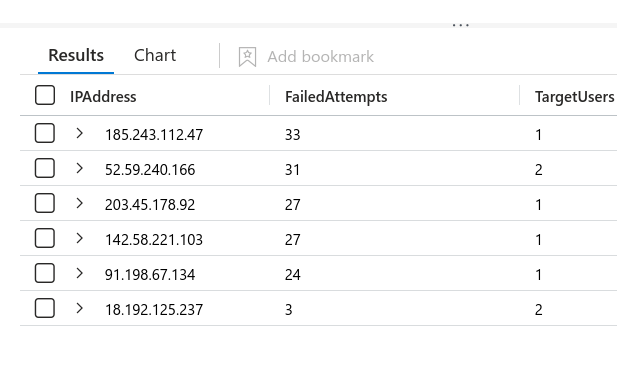

52.59.240.166 — 31 failed attempts across 2 users. The multi-user targeting confirms spray behaviour vs targeted brute force.

MITRE: T1110.003 — Brute Force: Password Spraying

Stage 2 — First Compromised Account

Query successful logins from the spray IP to find the first account that was successfully compromised:

InteractiveSignIns_CL
| where IPAddress == "52.59.240.166"
| where Status == "Success"
| project EventTime, Username, IPAddress, Status
| order by EventTime asc

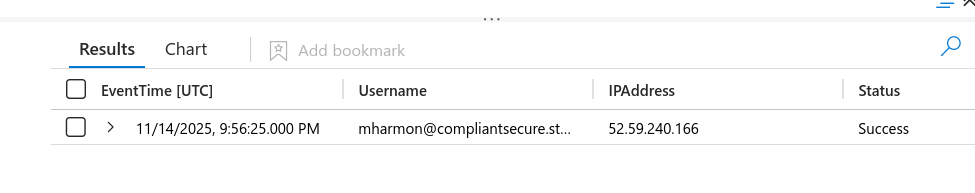

Compromised account: mharmon@compliantsecure.store

MITRE: T1078 — Valid Accounts

Stage 3 — Infrastructure Pivot

After compromising mharmon, the attacker switched to a different IP for post-exploitation — a common OpSec practice to separate noisy spray activity from quiet post-exploitation. Track all successful logins for the compromised account:

InteractiveSignIns_CL
| where Username == "mharmon@compliantsecure.store"
| where Status == "Success"
| project EventTime, Username, IPAddress, Status, Location
| order by EventTime asc

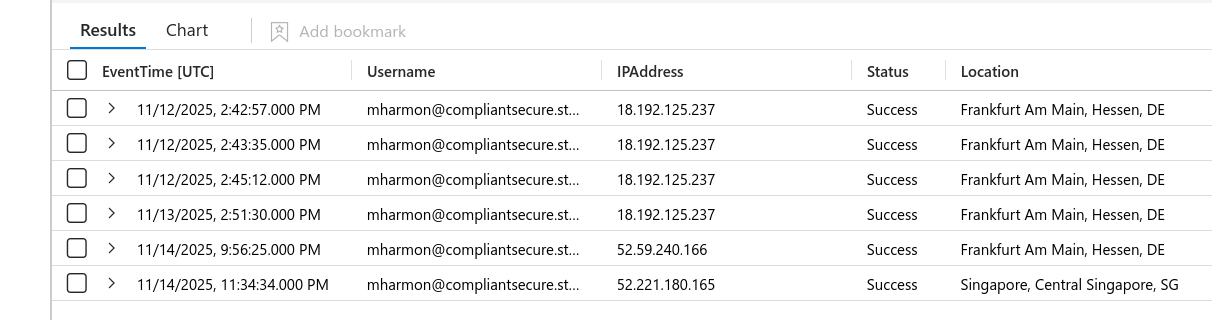

Timeline:

• 18.192.125.237 — earlier access (pre-compromise, likely recon)
• 52.59.240.166 — spray IP, successful 2025-11-14 09:56
• 52.221.180.165 — new IP at 11:34 on 2025-11-14, post-exploitation pivot

MITRE: T1550.001 — Use Alternate Authentication Material

Stage 4 — Post-Exploitation: Full Attack Timeline

Query everything mharmon did after the compromise date to see the full attack chain:

AuditLogs_CL
| where EventTime >= datetime(2025-11-14)
| where ActorUserPrincipalName == "mharmon@compliantsecure.store"
| project EventTime, Activity, ActorUserPrincipalName, Target1DisplayName, IPAddress
| order by EventTime asc

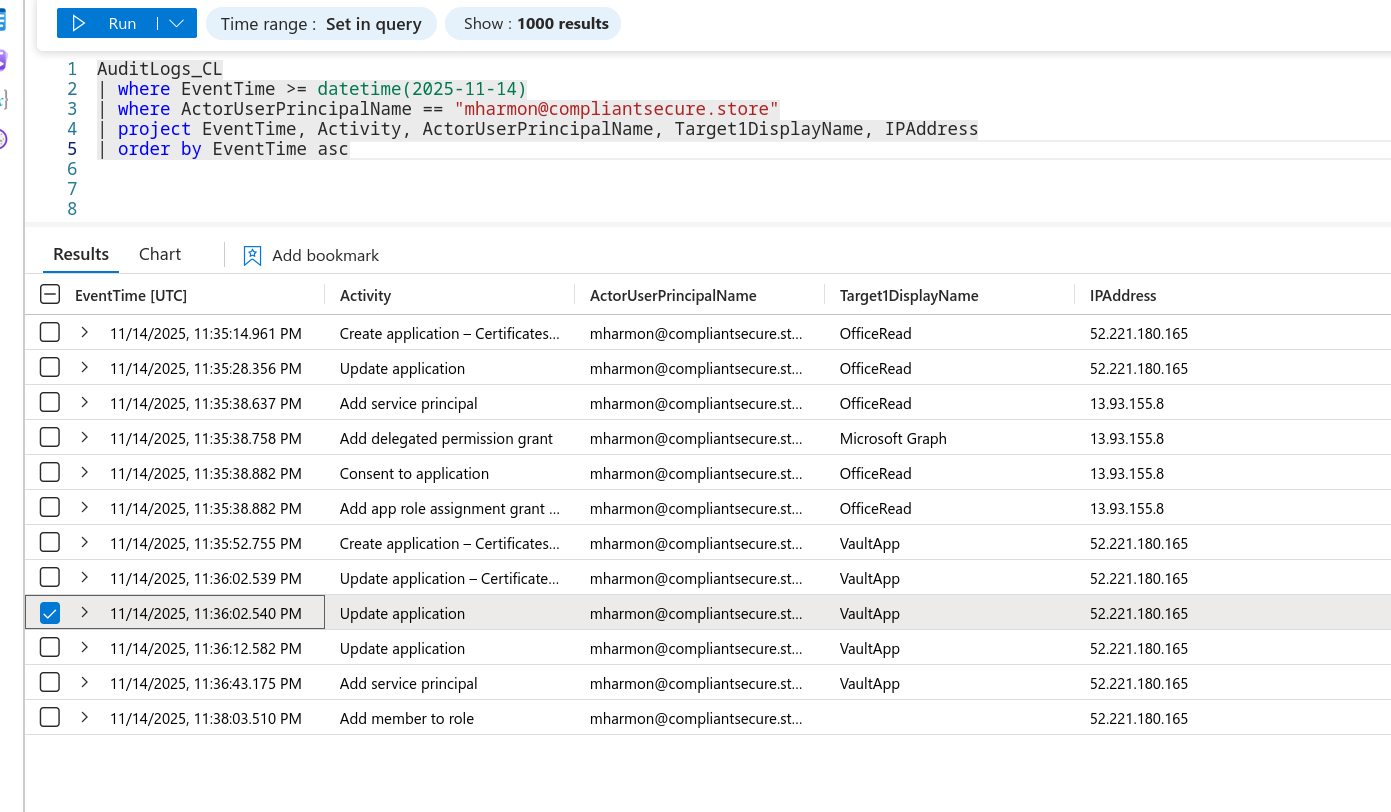

Full chain visible in chronological order:

Stage 5 — Persistence: Malicious App Registrations

Two malicious applications registered within minutes of each other using the Singapore IP — a persistence technique that survives password resets since the apps authenticate independently via service principals.

First app: OfficeRead

• Registered with Microsoft Graph delegated permissions
• Designed to read Office 365 data

Second app: VaultApp

• Registered to access directory information
• Service principal added for non-interactive authentication

MITRE: T1136 — Create Account (Service Principal) MITRE: T1098.001 — Account Manipulation: Additional Cloud Credentials

Stage 6 — Privilege Escalation: Global Administrator

Query role assignment events to identify the backdoor account:

AuditLogs_CL
| where Activity == "Add member to role"
| where EventTime >= datetime(2025-11-14)
| project EventTime, ActorUserPrincipalName, Target1DisplayName, TargetUserPrincipalName, NewRule, IPAddress
| order by EventTime asc

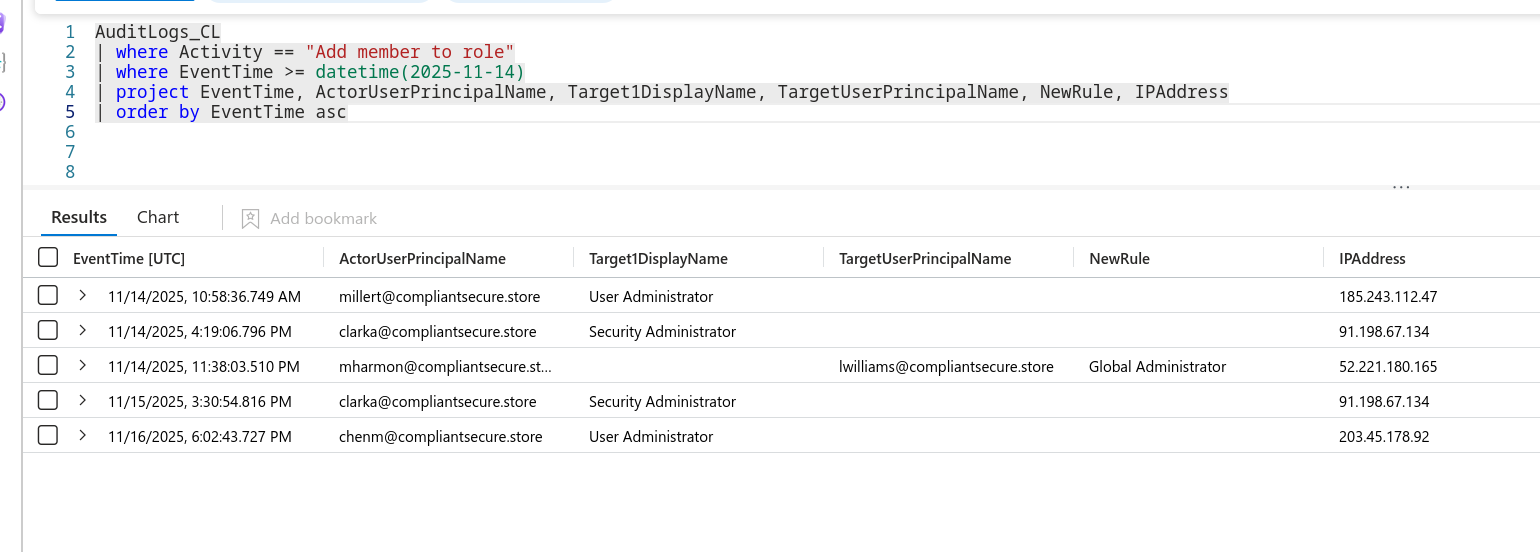

At 11:38, mharmon assigned lwilliams@compliantsecure.store the Global Administrator role from 52.221.180.165. This creates a redundant backdoor — even if mharmon is remediated, lwilliams retains full tenant control.

MITRE: T1484.001 — Domain Policy Modification: Group Policy Modification

Stage 7 — Exfiltration: Azure Blob Storage

Query blob storage for GetBlob operations — downloads from storage accounts — filtering to the attacker’s IP:

StorageBlobLogs_CL
| where TimeGenerated >= datetime(2025-11-14)
| where OperationName == "GetBlob"
| project TimeGenerated, AccountName, Uri, CallerIpAddress, OperationName
| order by TimeGenerated asc

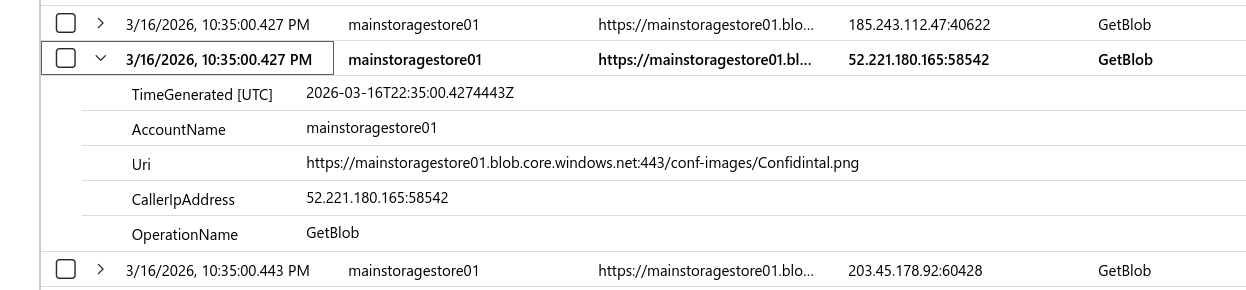

52.221.180.165 (Singapore IP) issued a GetBlob request to:

https://mainstoragestore01[.]blob[.]core[.]windows[.]net/conf-images/Confidintal[.]png

Note the deliberate typo — “Confidintal” not “Confidential” — likely an attacker-created decoy or staging file.

MITRE: T1530 — Data from Cloud Storage MITRE: T1567 — Exfiltration Over Web Service

IOCs

MITRE ATT&CK

Lessons Learned

• KQL vs SPL — KQL syntax maps closely to Splunk SPL: where = where, summarize = stats, project = fields, order by = sort. The mental model transfers well once you know the table names
• _CL suffix — Custom log tables in Sentinel always append _CL. Always run search * | distinct $table first to discover actual table names before writing queries
• App registrations as persistence — Malicious service principals survive password resets and MFA changes — remediating the compromised user account alone is insufficient. App registrations and service principals must be audited and revoked
• Spray vs brute force detection — Key differentiator is dcount(Username) — spray hits multiple users, brute force hits one. High FailedAttempts with TargetUsers > 1 from a single IP is the signature
• Log ingestion delay — Azure logs take 5-10 minutes to ingest into Sentinel after lab start. If queries return nothing, wait and retry before troubleshooting
