Redline
Overview
Memory forensics investigation into a compromised Windows host. The attacker deployed Redline Stealer — a credential harvesting malware — and used a VPN process (Outline.exe) to tunnel C2 traffic and bypass the Network Intrusion Detection System. Investigation performed entirely with Volatility 3 and strings.
Process Analysis
Starting with a process tree to identify anything anomalous in the parent/child relationships.

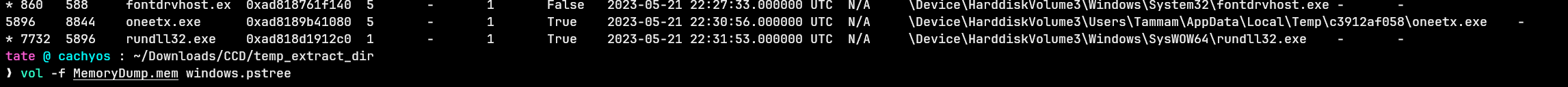

vol -f MemoryDump.mem windows.pstree
oneetx.exe immediately stands out — an unknown process with rundll32.exe as a child. Legitimate software rarely spawns rundll32 as a child without a good reason. This is a classic injection setup.
vol -f MemoryDump.mem windows.pslist
Full process list confirms oneetx.exe running from a temp path. No parent legitimacy.
Memory Protection — Injection Indicator
windows.malfind scans for memory regions with suspicious protection flags — specifically PAGE_EXECUTE_READWRITE, which allows a region to be written to and executed, a hallmark of process injection.

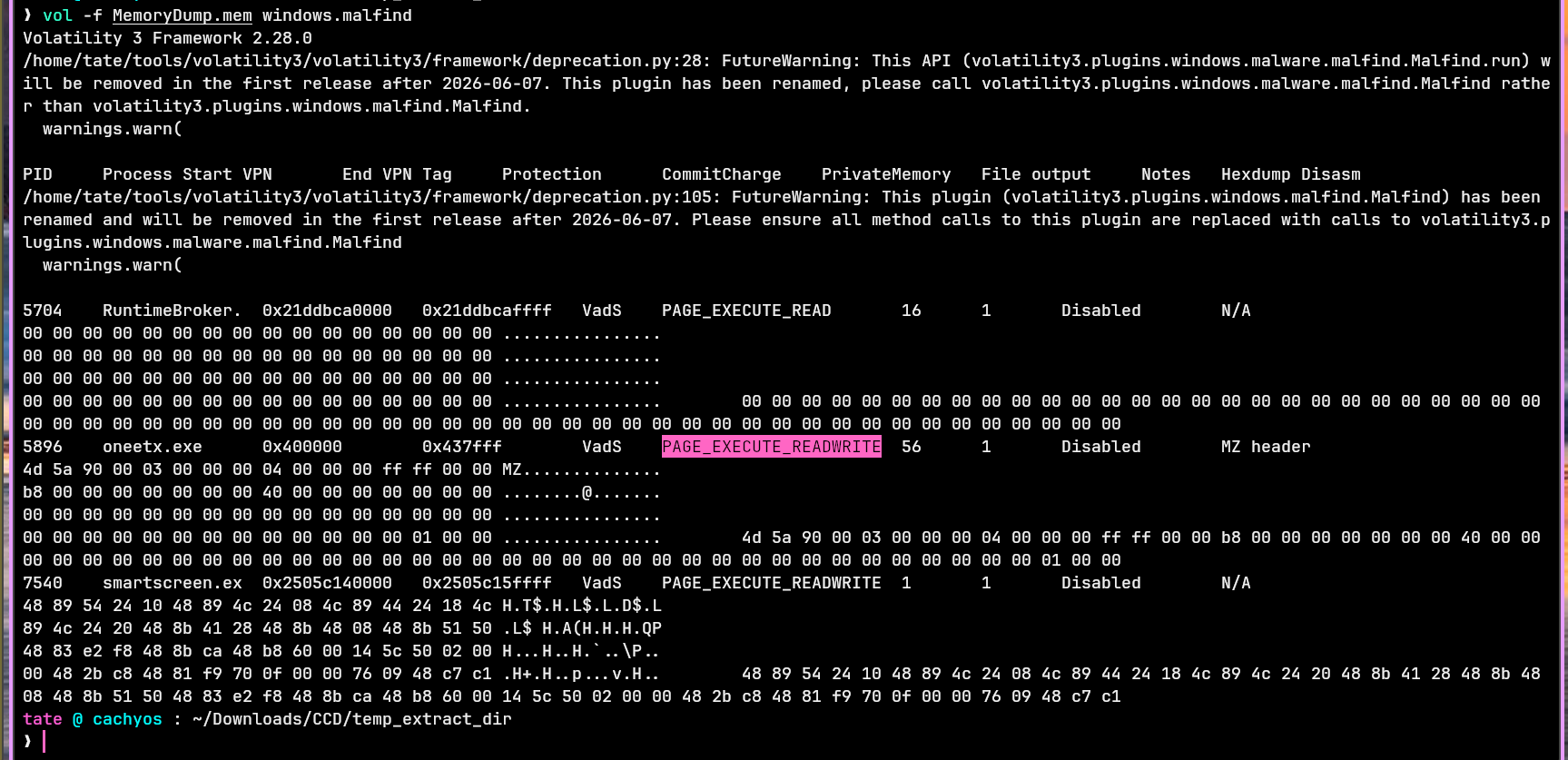

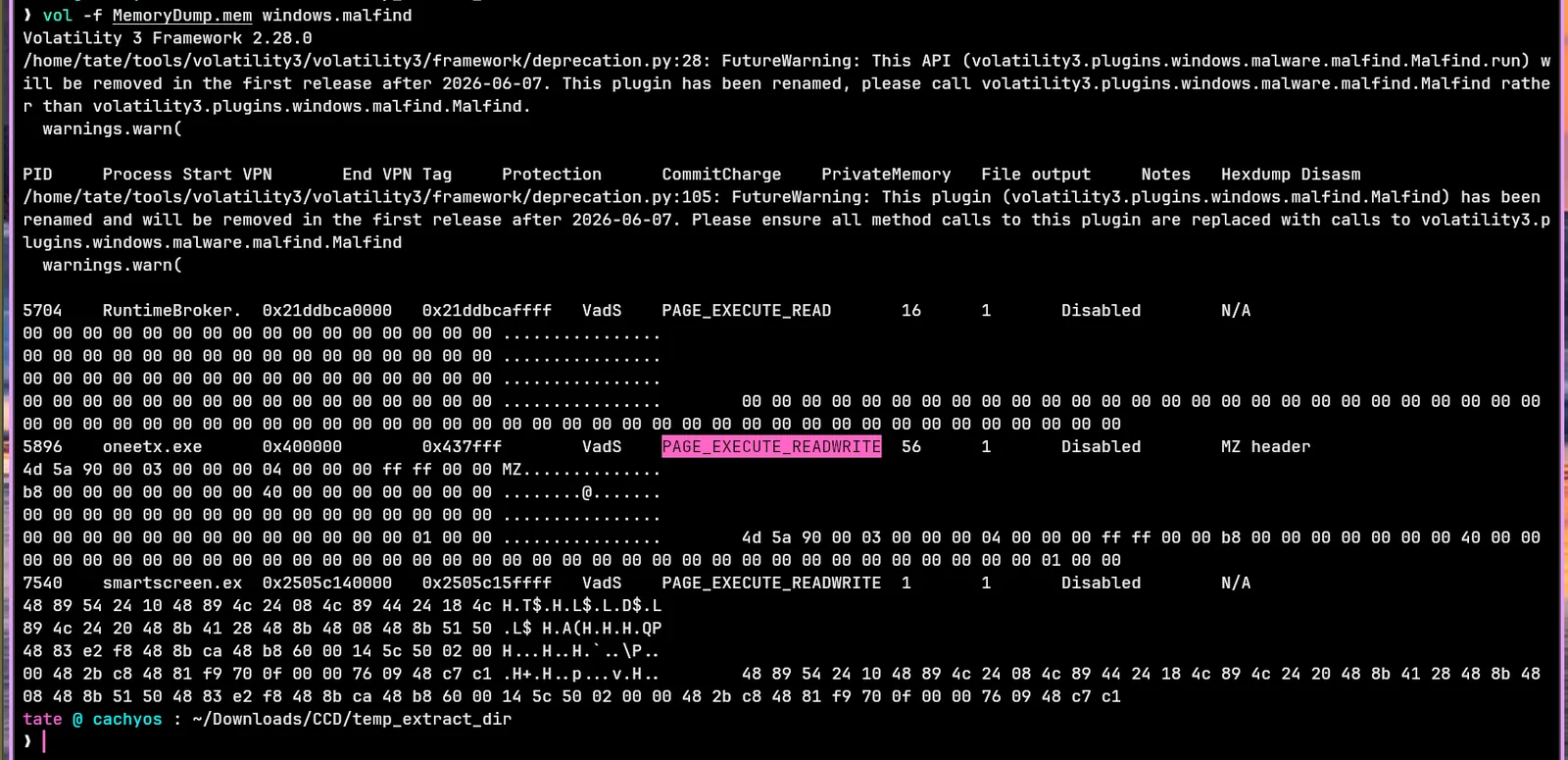

vol -f MemoryDump.mem windows.malfind
oneetx.exe flagged with PAGE_EXECUTE_READWRITE — confirms shellcode or injected code living in memory. The child rundll32.exe is the likely execution vehicle post-injection.
MITRE: T1055 — Process Injection
Network Connections — VPN NIDS Bypass
vol -f MemoryDump.mem windows.netscan
Outline.exe is present with an active connection. Outline is a legitimate VPN client — the attacker used it to tunnel C2 traffic, making it appear as encrypted VPN traffic to the NIDS rather than malware beaconing.
MITRE: T1572 — Protocol Tunneling
C2 URL Extraction — strings
With the attacker’s IP in hand from netscan (77[.]91[.]124[.]20), using strings to pull the full PHP endpoint from memory. Wide strings first — Redline is .NET and stores strings as UTF-16:

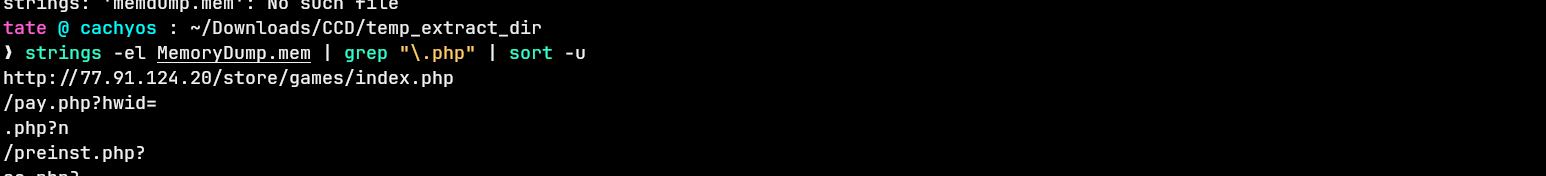

strings -el MemoryDump.mem | grep "\.php" | sort -u
Full C2 endpoint recovered:
hxxp[://]77[.]91[.]124[.]20/store/games/index[.]php
This is the Redline Stealer gate — the PHP endpoint that receives harvested credentials, browser data, and session tokens.
MITRE: T1071.001 — Application Layer Protocol: Web Protocols
MITRE: T1041 — Exfiltration Over C2 Channel
Malware Path — filescan

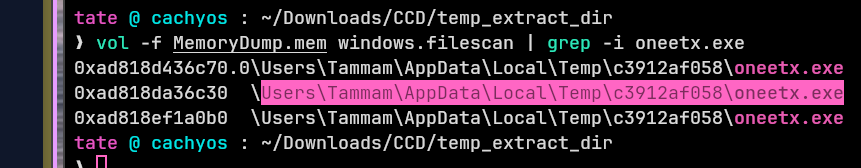

vol -f MemoryDump.mem windows.filescan | grep -i oneetx.exe
Full path on disk:
C:\Users\Tammam\AppData\Local\Temp\c3912af058\oneetx.exe
Dropped into AppData\Local\Temp under a randomised subdirectory — standard Redline delivery pattern, keeping it off obvious locations while remaining accessible for execution.
MITRE: T1036.005 — Masquerading: Match Legitimate Name or Location
IOCs
| Type | Value |
|---|---|
| Malicious Process | oneetx.exe |
| Child Process | rundll32.exe |
| Attacker IP | 77[.]91[.]124[.]20 |
| C2 Endpoint | hxxp[://]77[.]91[.]124[.]20/store/games/index[.]php |
| Malware Path | C:\Users\Tammam\AppData\Local\Temp\c3912af058\oneetx[.]exe |
| VPN Bypass Process | Outline.exe |
MITRE ATT&CK
| Technique | ID | Notes |
|---|---|---|
| Process Injection | T1055 | PAGE_EXECUTE_READWRITE region in oneetx.exe |
| Masquerading | T1036.005 | rundll32.exe as injection vehicle |
| Protocol Tunneling | T1572 | Outline VPN to bypass NIDS |
| Application Layer Protocol | T1071.001 | C2 over HTTP to PHP gate |
| Exfiltration Over C2 | T1041 | Credentials sent to index.php endpoint |
| Credentials from Web Browsers | T1555.003 | Redline stealer primary capability |
| Ingress Tool Transfer | T1105 | Malware dropped to Temp directory |
Lessons Learned
- strings -el is essential for .NET malware — UTF-16 wide strings won’t appear in a standard
stringsrun, Redline’s C2 URL was only visible with the-elflag - Outline.exe as NIDS bypass — legitimate VPN software as a proxy for C2 is an effective evasion technique; netscan attribution requires correlating the VPN process back to the malware process timeline rather than looking for direct C2 connections
- PAGE_EXECUTE_READWRITE = injection — any malfind hit with this flag warrants immediate follow-up; it’s not definitive proof but is a strong signal worth pursuing in every memory investigation
