RDP
Scenario
An interplanetary illegal dealer was using a remote machine to store all his trade secrets. Intelligence identified the dealer was from Earth — maintaining a clean local machine and storing sensitive data on a remote machine accessed via RDP. The remote machine was destroyed. The only source of evidence is the forensic disk image of the clean machine. Recover the dealer’s trade secrets including their crypto wallet address and customer details.
Methodology
Triage — FTK Imager
Loading the provided .ad1 image in FTK Imager and navigating the file tree to Users\ reveals the local machine username:
C:\Users\spiderman\Desktop\RDPCache.ad1
The RDP cache files are located at:
[root]\Users\spiderman\AppData\Local\Microsoft\Terminal Server Client\Cache\
Three files are exported to the desktop for analysis:
bcache24.bmc
Cache0000.bin
Cache0000.bin.fileslack
The MD5 and SHA1 hashes of the custom content source are recorded:
MD5: 2c85d7389e6a7fe1b8cd9739cca4bd36
SHA1: 791ce08116abd3f52316e87c263ec8bbc9ea3295
Tile Extraction — bmc-tools
RDP bitmap cache stores session data as 64×64 pixel tiles rather than full screenshots. bmc-tools extracts these tiles as individual PNG files:

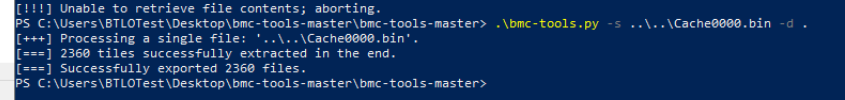

.\bmc-tools.py -s ..\..\Cache0000.bin -d .
[+++] Processing a single file: '..\..\Cache0000.bin'.
[===] 2360 tiles successfully extracted in the end.
[===] Successfully exported 2360 files.
The bcache24.bmc file returned an error indicating empty or corrupt content — all usable data comes from Cache0000.bin.
Reconstruction — RdpCacheStitcher
RdpCacheStitcher imports the 2360 extracted tiles and provides a canvas for manual reconstruction. The Autoplace function did not produce a result, requiring manual tile placement. Scrolling through the tile store and dragging fragments onto the canvas surfaces the following artefacts:

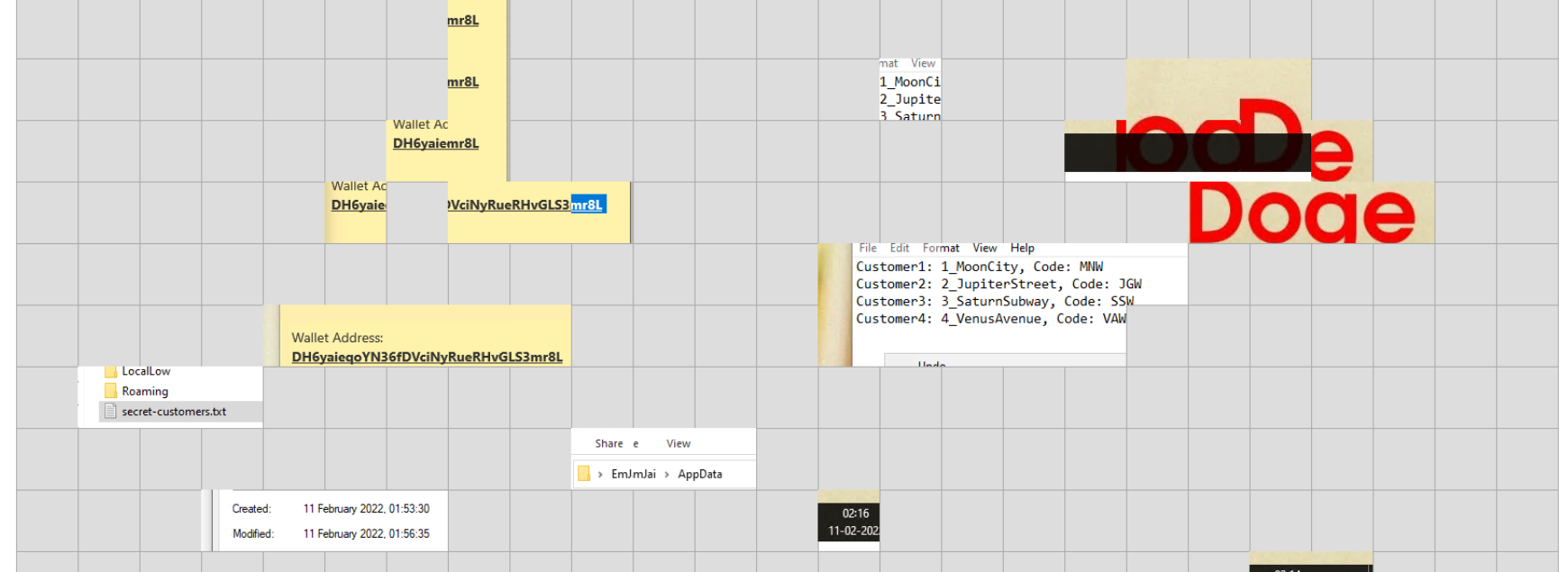

The wallet address tile is immediately identifiable — a yellow notepad background with the address string. Continuing reconstruction recovers a Notepad window containing the full customer code list, a file explorer path revealing the remote username, taskbar fragments showing the date and pinned applications, and a Windows Run dialog with the entered string.
The large red Dogecoin logo is visible across multiple adjacent tiles — the “Color Red” hint in the question directly identifies the cryptocurrency.

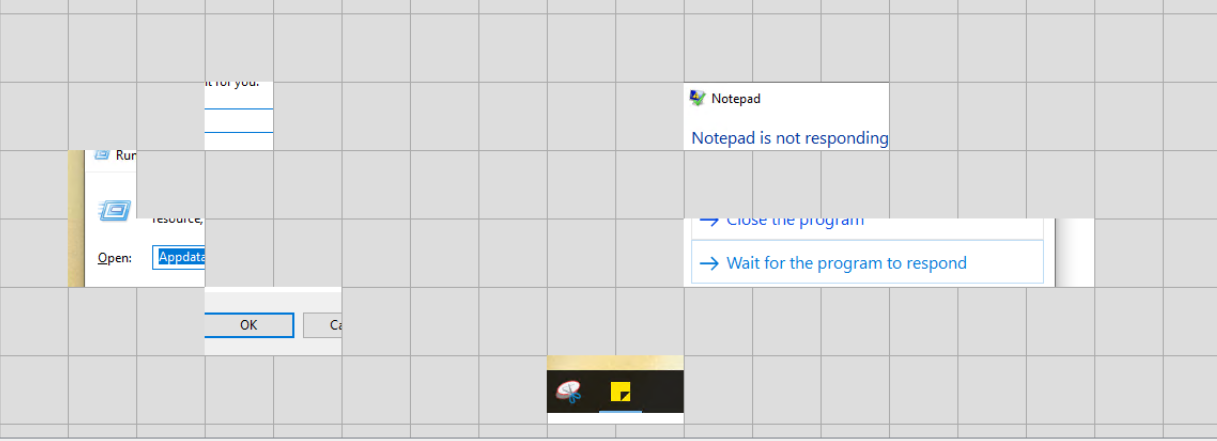

A “Notepad is not responding” error dialog and a Windows Run box with appdata entered are recovered from separate tile clusters. The yellow Sticky Notes icon is visible in the reconstructed taskbar fragment.
Attack Summary
| Phase | Action |
|---|---|
| Remote Access | Dealer used RDP to access remote machine storing trade secrets |
| Data Storage | Sensitive data stored in secret-customers.txt on remote machine |
| Evidence Recovery | RDP bitmap cache on local machine retained tile fragments of remote sessions |
| Credential Discovery | Remote username EmJmJai recovered from AppData path in cache tiles |
| Data Exfiltration | Wallet address and customer codes reconstructed from cache fragments |
IOCs
| Type | Value |
|---|---|
| Local Username | spiderman |
| Remote Username | EmJmJai |
| Crypto Wallet | DH6yaieqoYN36fDVciNyRueRHvGLS3mr8L |
| Cryptocurrency | Dogecoin |
| File | secret-customers.txt |
| Customer Codes | MNW, JGW, SSW, VAW |
MITRE ATT&CK
| Technique | ID | Description |
|---|---|---|
| Remote Desktop Protocol | T1021.001 | Dealer accessed remote machine storing trade secrets via RDP |
| Data from Local System | T1005 | RDP bitmap cache on local disk retained fragments of remote session content |
Defender Takeaways
RDP cache as a forensic artefact — The Windows RDP bitmap cache (Cache0000.bin, bcache24.bmc) persists tile fragments of every remote desktop session on the local machine. Even after the remote machine is destroyed, an investigator with access to the local client machine can partially reconstruct what was visible during RDP sessions. Organisations should be aware that sensitive data displayed during remote sessions leaves traces on the initiating endpoint.
RdpCacheStitcher and bmc-tools for IR — The combination of bmc-tools for tile extraction and RdpCacheStitcher for visual reconstruction is a practical DFIR technique for RDP session recovery. Even partial reconstruction — as demonstrated here — is sufficient to recover credential material, file contents, and application activity without access to the remote machine.
Sensitive data handling over RDP — Displaying plaintext credentials, wallet addresses, and customer PII in Notepad over an RDP session creates a persistent forensic record on the client endpoint. Clipboard monitoring, session recording, and cache clearing policies should be enforced on machines used for privileged remote access.
Lateral movement detection — RDP connections to internal or external machines from endpoints that have no business need for remote desktop access are a strong lateral movement indicator. Event ID 4624 (logon type 10) and network connections on port 3389 should be monitored and alerted on in any SOC environment.
