Ramnit – Memory Forensics Investigation

Scenario

An intrusion detection system alerted on suspicious behavior on a workstation indicating a likely malware intrusion. A memory dump was captured for analysis. The objective was to identify the malicious process, trace network activity, and extract file artifacts.

Tooling

Volatility 3 Framework 2.28.0
VirusTotal
SHA1sum / SHA256sum

Investigation Findings

1. Process Analysis

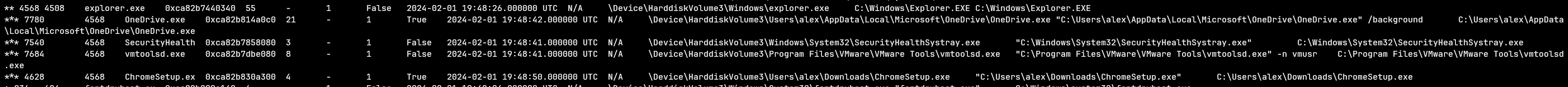

Initial triage using process tree and scan plugins revealed a suspicious process:
```
vol -f memory.dmp windows.pstree
vol -f memory.dmp windows.psscan
vol -f memory.dmp windows.cmdline
```

A process named ChromeSetup.exe was identified running from an unusual path: C:\Users\alex\Downloads\ChromeSetup.exe Legitimate Chrome installers do not persist as running processes from the Downloads folder. This immediately flagged as suspicious.

2. Network Connections

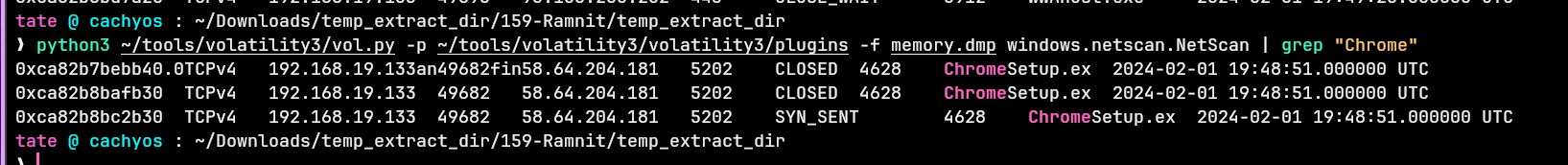

vol -f memory.dmp windows.netscan.NetScan

Network scan revealed active and closed connections associated with ChromeSetup.exe (PID 4628):

Geolocation of 58.64.204.181 resolves to Hong Kong. This is consistent with Ramnit C2 infrastructure.

3. File Extraction and Hashing

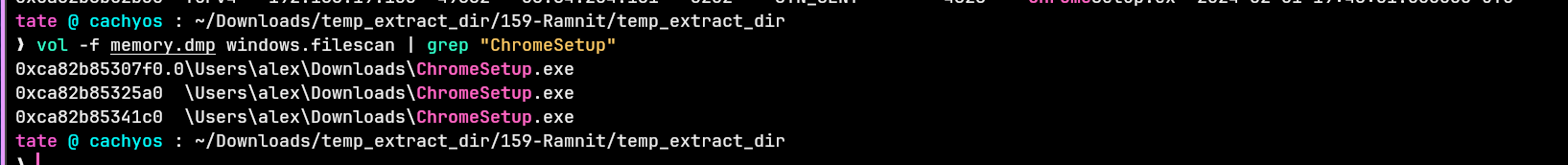

Located the malicious file in memory using filescan:

vol -f memory.dmp windows.filescan | grep "ChromeSetup"

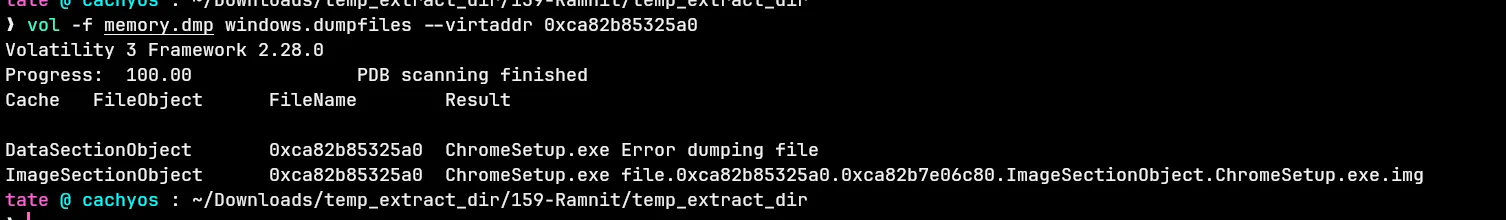

Extracted the file using the virtual address:

vol -f memory.dmp windows.dumpfiles --virtaddr 0xca82b85325a0

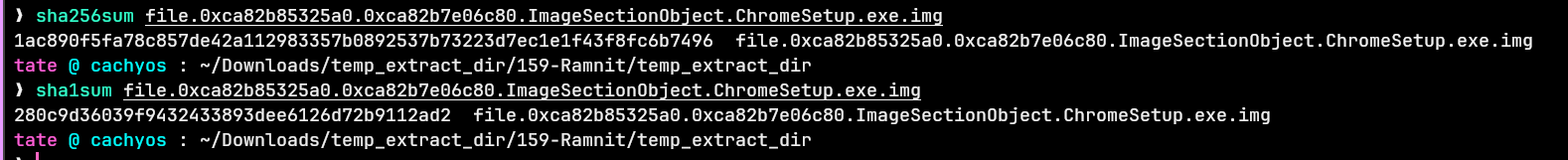

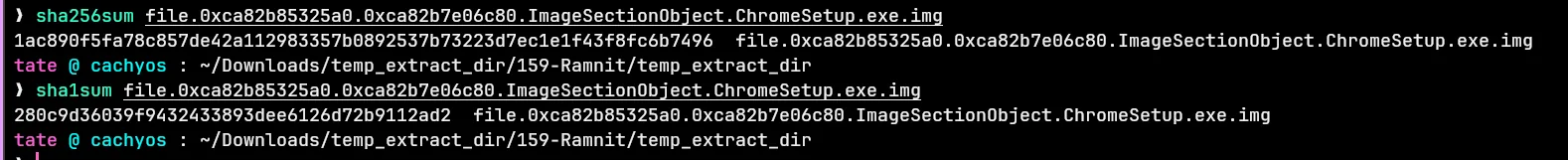

Generated hashes for VirusTotal submission:

sha256sum file.0xca82b85325a0.0xca82b7e06c80.ImageSectionObject.ChromeSetup.exe.img
sha1sum file.0xca82b85325a0.0xca82b7e06c80.ImageSectionObject.ChromeSetup.exe.img

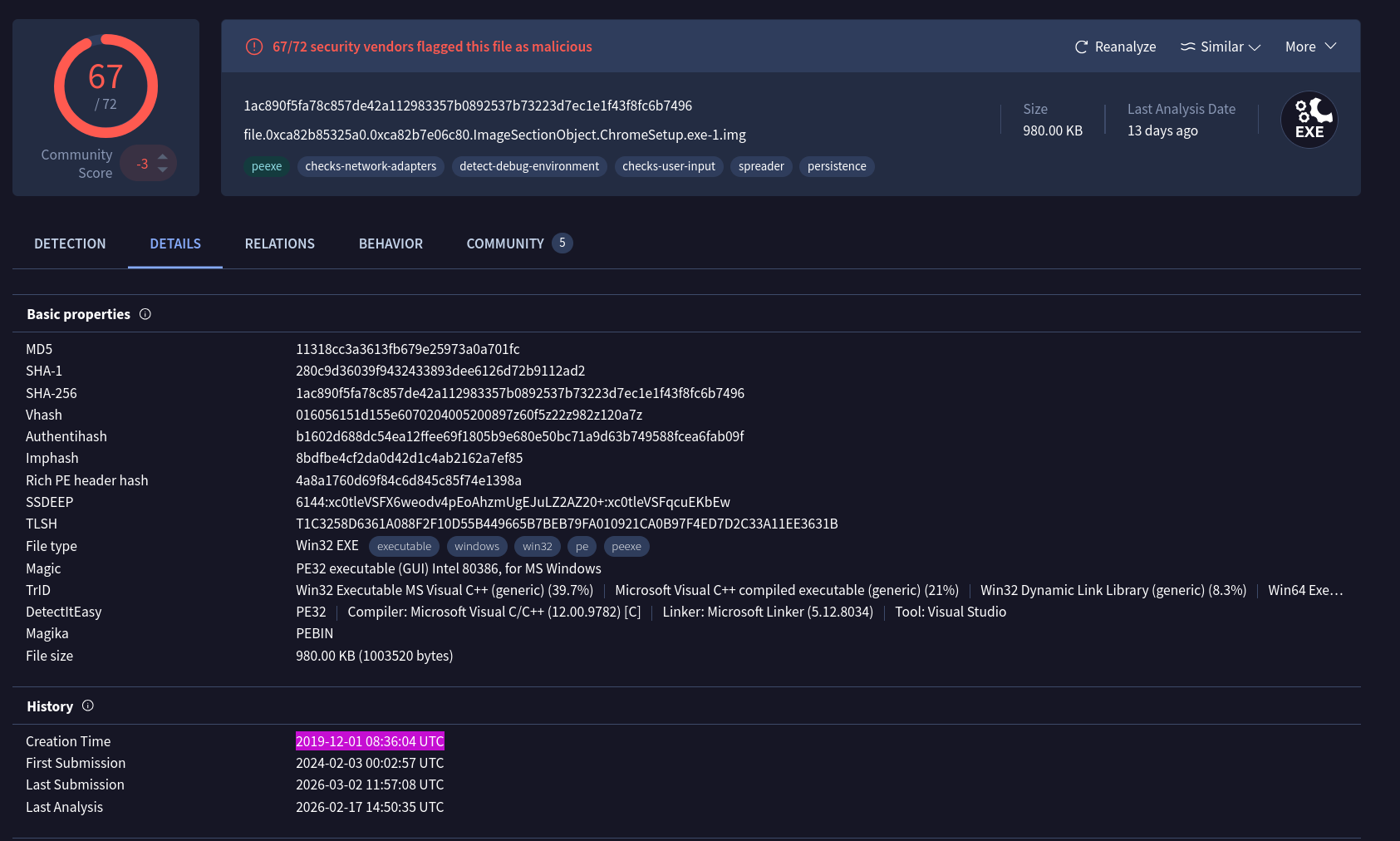

VirusTotal results: 67/72 vendors flagged as malicious Compilation timestamp from VirusTotal Details: 2019-12-01 08:36:04 UTC — indicating the malware predates the infection significantly, suggesting it is a known persistent threat.

4. C2 Infrastructure

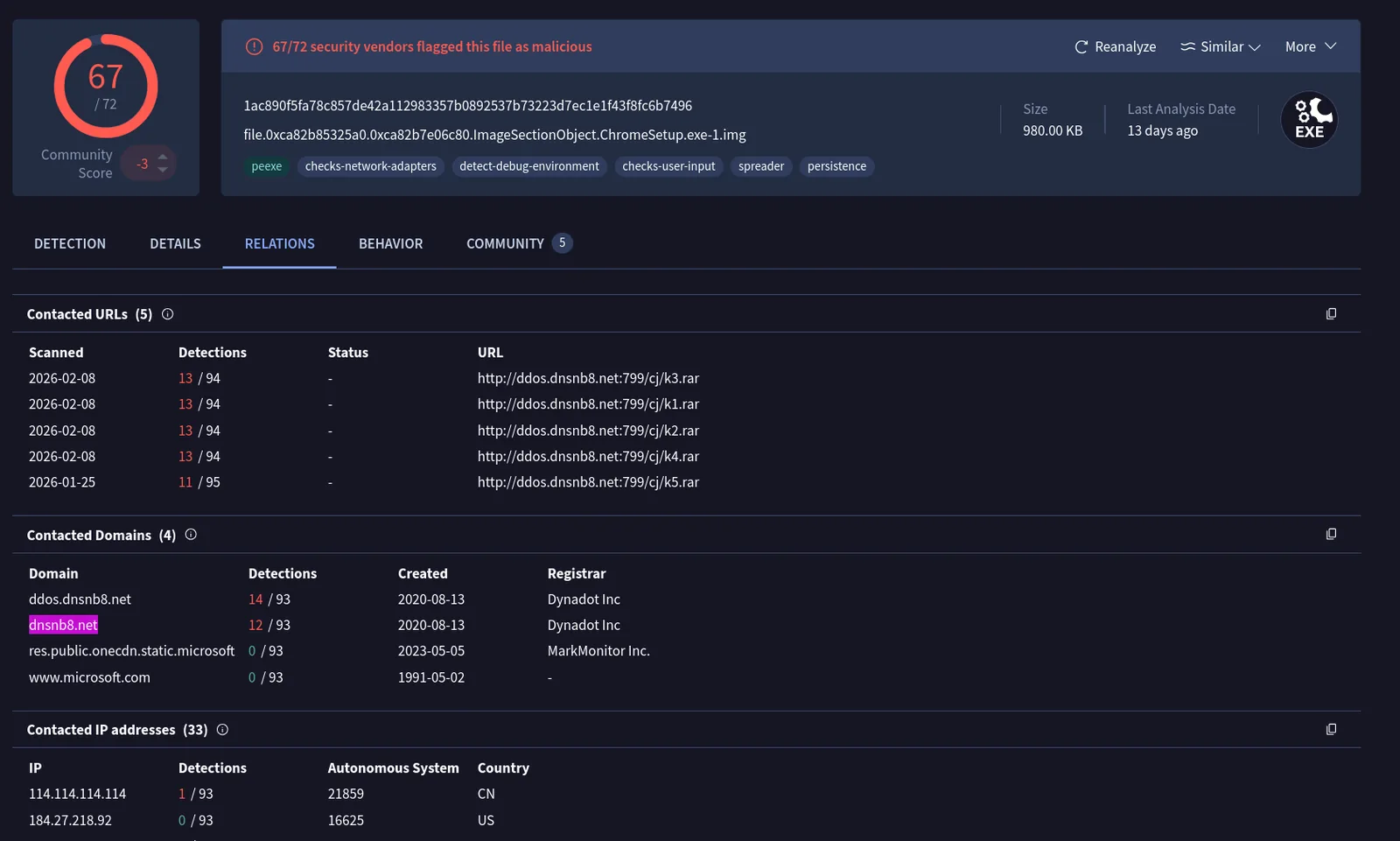

VirusTotal Relations tab revealed the C2 domain: dnsnb8[.]net Contacted URLs followed the pattern: http://ddos.dnsnb8.net:799/cj/k[1-5].rar This is consistent with Ramnit’s known behaviour of downloading additional payloads via RAR archives.

IOCs

Type	Value
File	ChromeSetup.exe
IP	58.64.204.181
C2	dnsnb8[.]net
SHA1	280c9d36039f9432433893dee6126d72b9112ad2
Path	C:\Users\alex\Downloads\ChromeSetup.exe
SHA256	1ac890f5fa78c857de42a112983357b0892537b73223d7ec1e1f43f8fc6b7496
MD5	11318cc3a3613fb679e25973a0a701fc

Conclusion

Ramnit malware was deployed on the workstation disguised as a Chrome installer. Memory forensics confirmed active C2 communication to Hong Kong infrastructure and identified staged payload delivery via dnsnb8[.]net.

What is the name of the process responsible for the suspicious activity?

Click flag to reveal ChromeSetup.exe

What is the exact path of the executable for the malicious process?

Click to reveal answer `C:\Users\alex\Downloads\ChromeSetup.exe`

Identifying network connections is crucial for understanding the malware's communication strategy. What IP address did the malware attempt to connect to?

Click flag to reveal 58.64.204.181

To determine the specific geographical origin of the attack, Which city is associated with the IP address the malware communicated with?

Click to reveal answer hong kong

Hashes serve as unique identifiers for files, assisting in the detection of similar threats across different machines. What is the SHA1 hash of the malware executable?

Click flag to reveal 280c9d36039f9432433893dee6126d72b9112ad2

Examining the malware's development timeline can provide insights into its deployment. What is the compilation timestamp for the malware?

Click to reveal answer 2019-12-01 08:36

Identifying the domains associated with this malware is crucial for blocking future malicious communications and detecting any ongoing interactions with those domains within our network. Can you provide the domain connected to the malware?

Click flag to reveal dnsnb8[.]net
