Nano

Scenario

The SOC has detected unusual network activity from a critical server attributed to threat actor group Nano — known for stealth, persistence, and custom obfuscated protocols that mimic legitimate traffic. Two log sets are provided: Log_2V for beacon analysis and Log_1D for DNS tunnelling investigation. RITA (Real Intelligence Threat Analytics) is the primary analysis tool alongside raw Zeek log inspection.

Methodology

Stage 1 — RITA: C2 Beacon Identification (Log_2V)

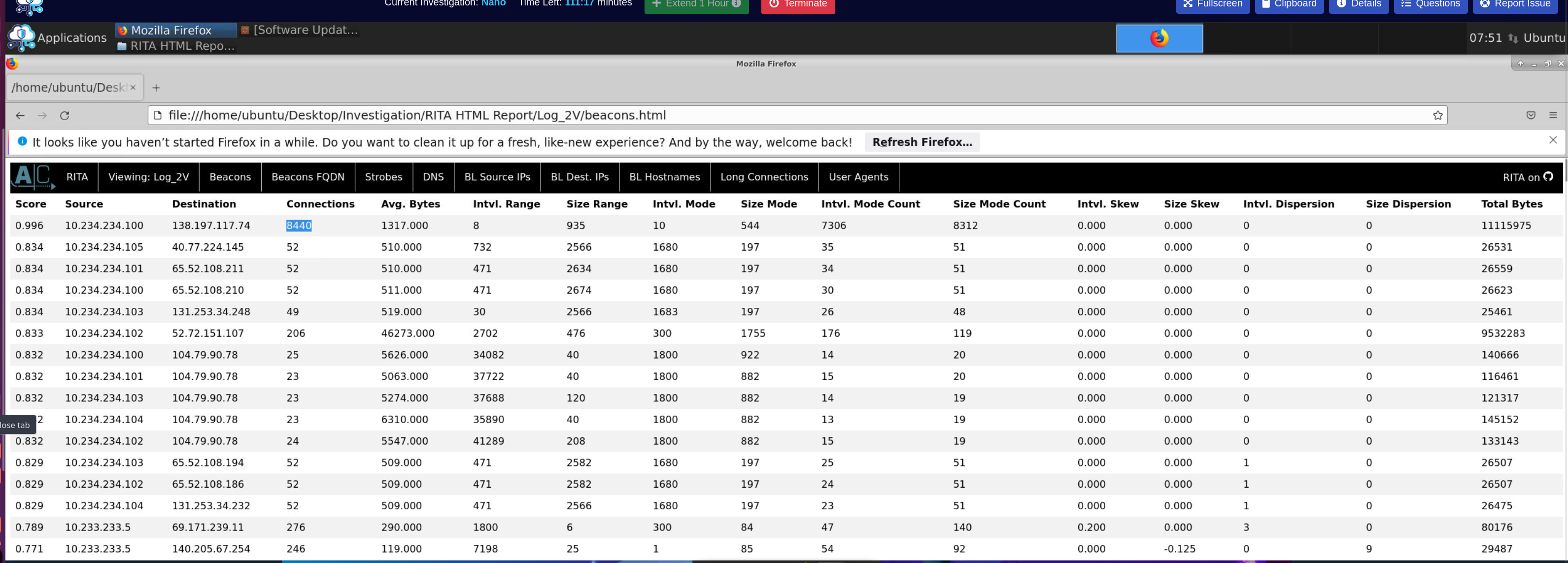

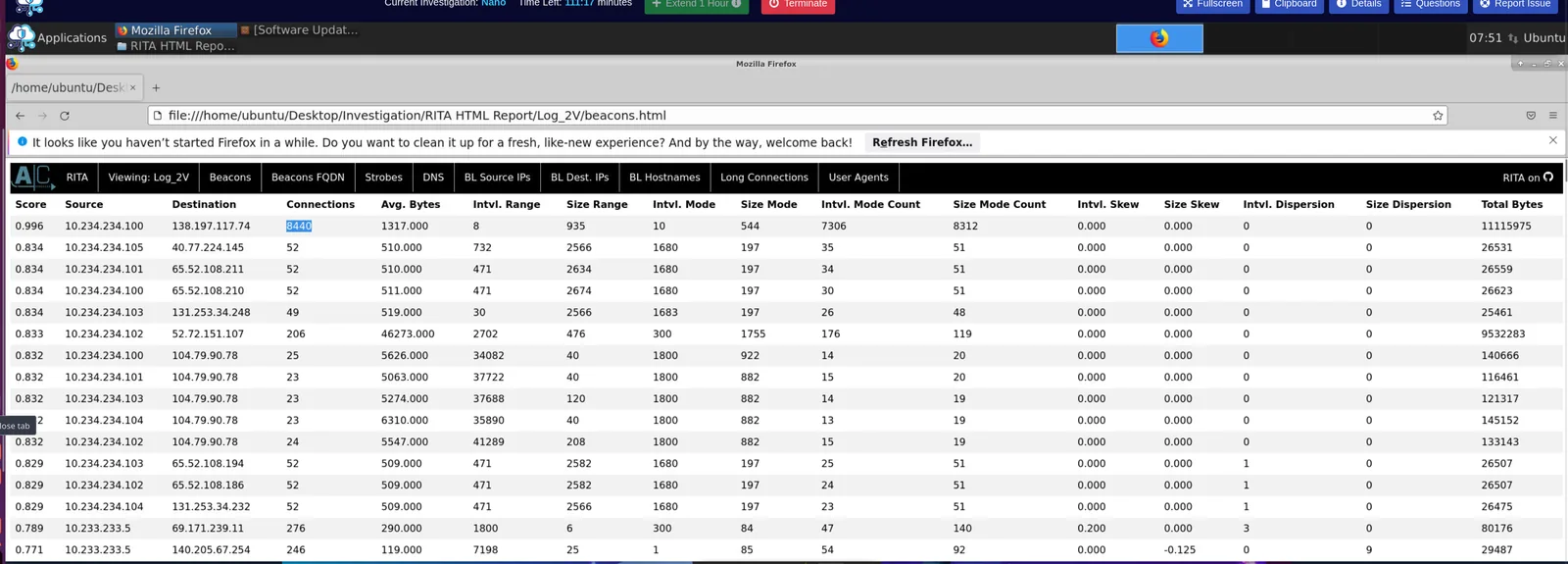

RITA analyses Zeek connection logs and scores traffic for beacon-like regularity — consistent intervals, consistent byte sizes, and high connection counts are the hallmarks of automated C2 communication. Opening the RITA HTML report for Log_2V and navigating to the Beacons tab surfaces the threat immediately:

The top entry is unambiguous:

• Score: 0.996 — near-perfect beacon regularity
• Source: 10.234.234.100
• Destination: 138.197.117.74
• Connections: 8440
• Avg Bytes: 1317
• Interval Range: 8 seconds

A beacon score of 0.996 means the connection intervals are almost perfectly regular — exactly what automated C2 heartbeat traffic looks like. The 8440 connection count across a consistent 8-second interval range over the capture period confirms sustained, long-running C2 communication.

OSINT on 138.197.117.74 via ipinfo.io confirms the infrastructure:

Range:   138.197.112.0/20
Company: DigitalOcean, LLC

DigitalOcean is the cloud provider — a common C2 hosting choice due to low cost, easy deployment, and abuse-tolerant reputation historically.

Stage 2 — RITA: User Agent Correlation (Log_2V)

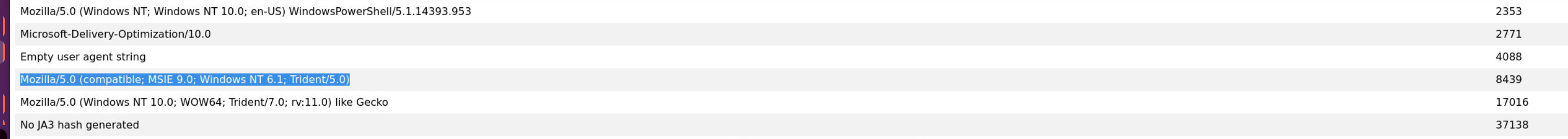

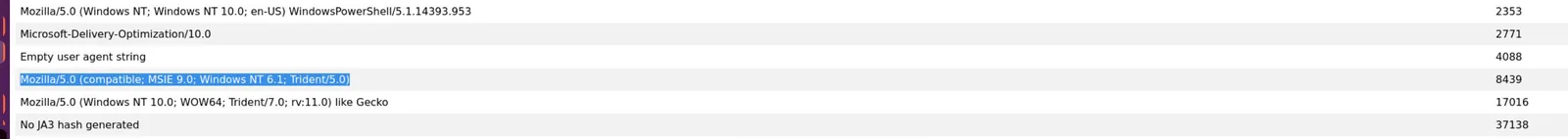

Navigating to the User Agents tab in Log_2V correlates the connection count to a specific system fingerprint:

The user agent matching the 8440 connection count is:

Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; Trident/5.0)

Internet Explorer 9 on Windows 7 — a browser and OS combination that has been end-of-life since 2016 and 2020 respectively. This UA string appearing in high-volume automated traffic in a modern environment is a strong indicator of spoofing — malware frequently uses outdated UA strings to appear as legacy enterprise traffic that might not trigger modern detection rules.

Stage 3 — RITA: DNS Anomaly Detection (Log_1D)

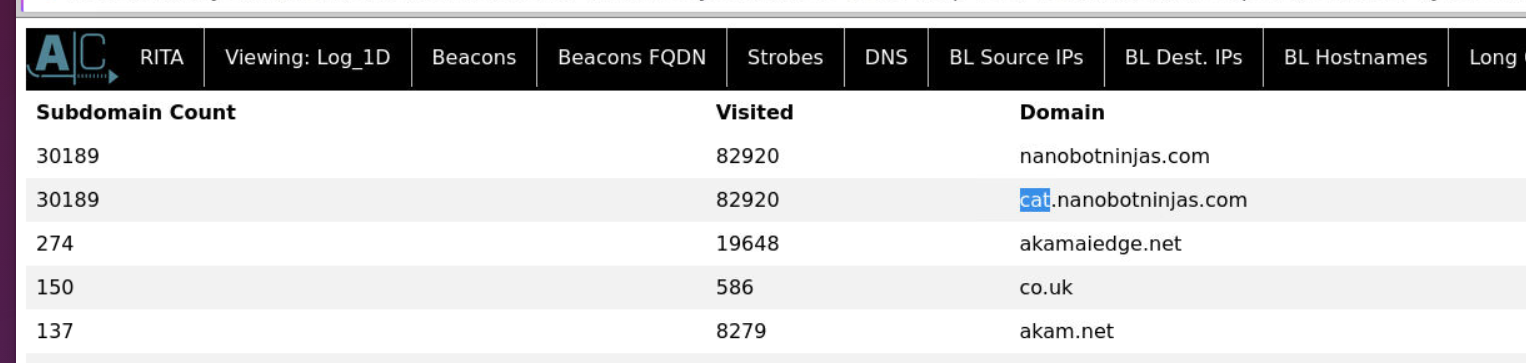

Switching to Log_1D and opening the DNS tab reveals a dramatic anomaly in subdomain activity:

Subdomain Count: 30189    Visited: 82920    Domain: cat.nanobotninjas.com

30189 unique subdomains and 82920 total requests to cat.nanobotninjas.com — orders of magnitude above every other domain in the log. No legitimate service generates 30,000 unique subdomains. This is the signature of DNS tunnelling — each unique subdomain carries encoded data in the query itself, using the DNS protocol as a covert channel.

Stage 4 — Zeek Log Analysis: TXT Record Queries

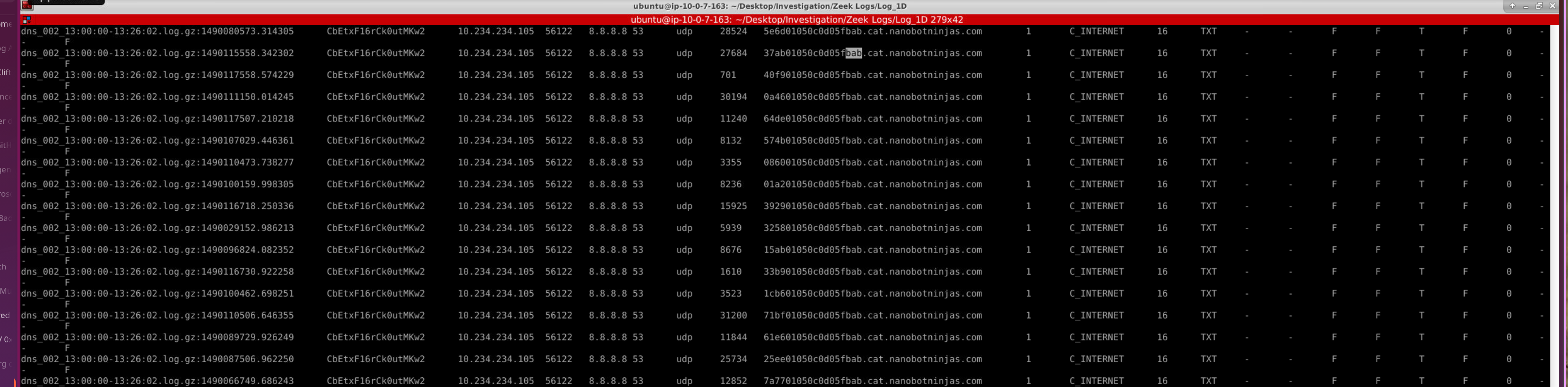

With the suspicious domain identified, pivoting to the raw Zeek DNS logs confirms the tunnelling mechanism. Grepping for TXT record queries to cat.nanobotninjas.com:

zgrep -i "cat.nanobotninjas" dns* | grep "TXT" | awk '{print $3}' | sort -u

10.234.234.105

A single internal IP — 10.234.234.105 — is responsible for all DNS TXT record queries to the tunnelling domain. TXT records are the preferred record type for DNS tunnelling because they can carry arbitrary data payloads up to 255 bytes per record, making them ideal for covert data exfiltration.

Stage 5 — Subdomain Prefix Analysis

Examining the actual query structure from the Zeek logs reveals the cache-busting mechanism:

zgrep -i "cat.nanobotninjas" dns* | head -20

Each query prepends a unique hex string to the subdomain:

062901050c0d05fbab.cat.nanobotninjas.com
15c201050c0d05fbab.cat.nanobotninjas.com
118801050c0d05fbab.cat.nanobotninjas.com
0a8901050c0d05fbab.cat.nanobotninjas.com

The prefix is hexadecimal — Base 16 values that change with each query. The purpose is cache-busting: intermediate DNS resolvers cache responses for previously seen queries. By prepending a unique hex value to each query, the attacker ensures every request reaches the authoritative DNS server (under attacker control) rather than being served from cache — guaranteeing a fresh C2 response each time.

The query pattern — TXT record type, hex-prefixed subdomains, high query volume to a single domain, and the tool’s known signature — identifies the tool as dnscat2, a popular open-source DNS C2 framework that uses DNS TXT, MX, and CNAME records for command and control communication over the DNS protocol.

Attack Summary

IOCs

MITRE ATT&CK

Defender Takeaways

RITA as a beaconing detection primitive — RITA scores connections based on interval regularity, byte size consistency, and connection volume. A score above 0.8 warrants investigation; 0.996 is a near-certain automated beacon. Running RITA against Zeek connection logs as part of regular threat hunting provides durable coverage against C2 traffic that evades signature-based detection by using valid protocols over standard ports.

DNS TXT record volume as a detection signal — legitimate services rarely generate thousands of TXT record queries to a single domain. A SIEM rule alerting on any single internal host generating more than a threshold of TXT record queries (e.g. 100 per hour) to a non-corporate domain provides reliable dnscat2 and iodine detection. The 30,189 unique subdomain count is an extreme outlier that would have triggered this rule immediately.

Outdated user agents in high-volume automated traffic — IE9 on Windows 7 appearing in thousands of connections is an immediate anomaly in any modern environment. Maintaining a baseline of expected user agents and alerting on outliers — particularly legacy browser versions — adds a lightweight detection layer that doesn’t depend on knowing the C2 IP in advance.

DNS as an exfiltration channel — DNS is rarely filtered at the egress layer because it’s required for basic network function. DNS tunnelling exploits this trust by encoding data in query fields. Deploying a DNS security solution (Cisco Umbrella, Cloudflare Gateway, or equivalent) that monitors query volume, subdomain entropy, and TXT record usage per host closes this gap without blocking legitimate DNS traffic.

Cache-busting as a tunnelling indicator — the hex prefix pattern that changes per query is specifically designed to defeat DNS caching. Detecting this pattern — high entropy subdomain prefixes changing on every query to the same parent domain — is a reliable dnscat2 fingerprint that can be implemented as a Zeek or Suricata detection rule.
