Latent
Scenario
A financial services company experiences intermittent system delays during peak hours. After ruling out network congestion, the security team suspects latent malware — designed to remain dormant until triggered by specific time intervals and data patterns, evading traditional antivirus. Investigate using a network PCAP and memory dump.
Methodology
Reconnaissance — Port Scan
Opening the PCAP in Wireshark reveals four IP addresses across two subnets:
10.0.2.4— attacker (internal)10.0.2.15— victim23.58.93.34— external216.58.200.163— external
Filtering HTTP traffic shows 10.0.2.4 requesting /robots.txt with an Nmap User-Agent string — the classic fingerprint of an active port scan against the victim host.
Initial Access — SMB Share Access and Web Shell Upload

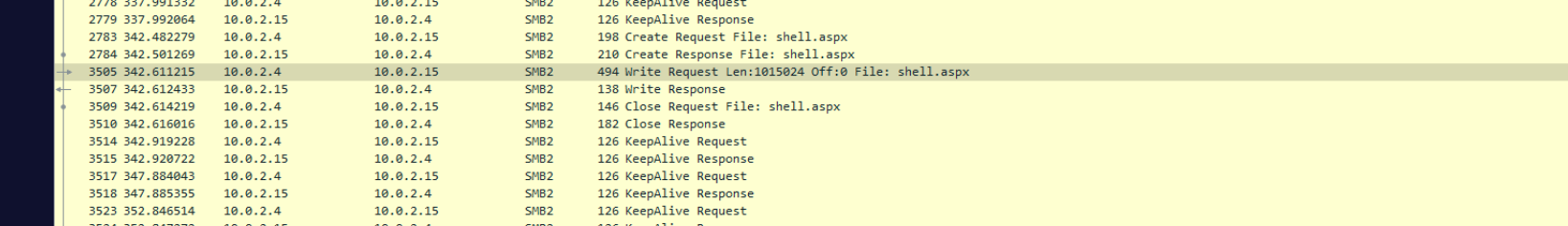

The attacker gained access to the victim via SMB, accessing the \Documents share. From there, shell.aspx was uploaded to the web server.

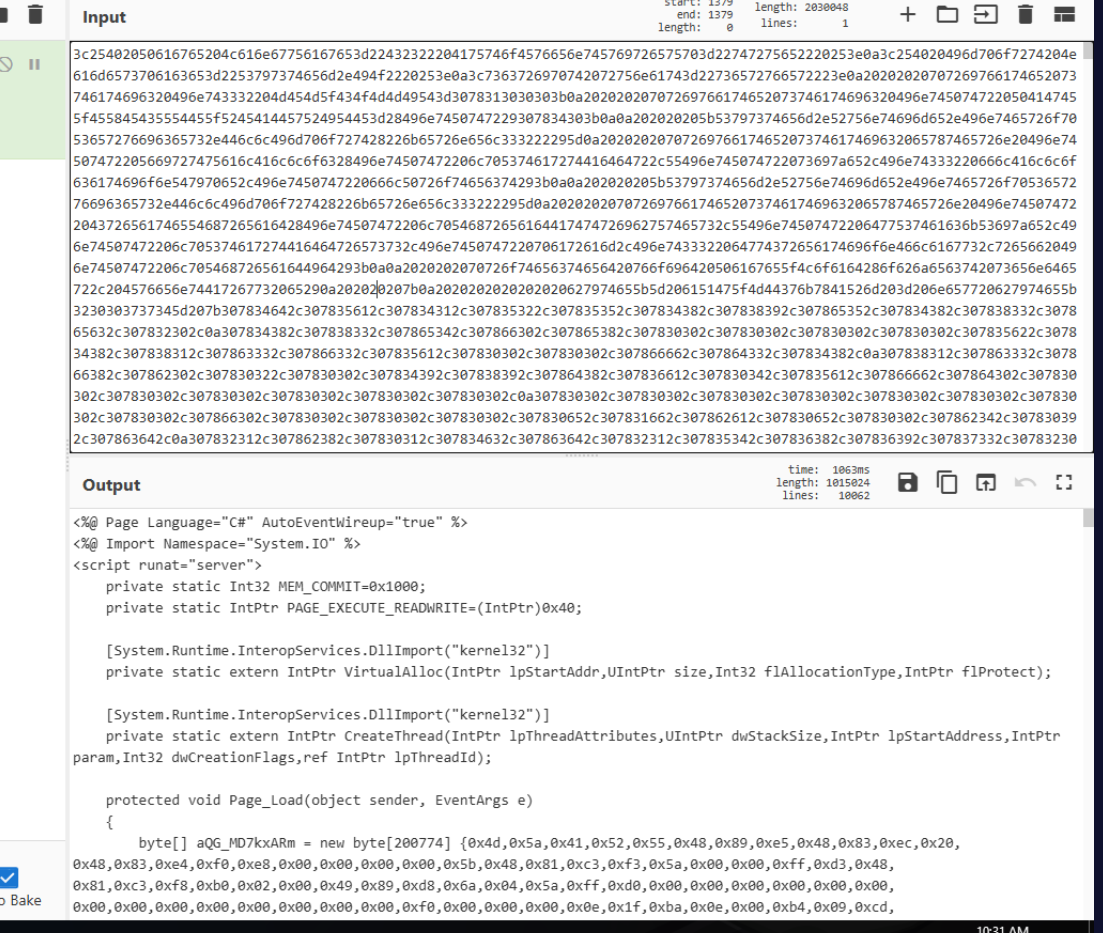

Inspecting the shell.aspx content reveals an ASP.NET loader with a large Base64-encoded blob embedded in the payload — likely a compiled binary or DLL loaded and executed in memory by the web shell.
Execution — Reverse Shell
Filtering HTTP traffic surfaces the exact moment the attacker triggered the web shell:
Sep 10, 2024 01:49:39 EDT
Checking destination ports and connections in Wireshark confirms the attacker had port 4443 open on their machine as the reverse shell listener — all reverse shell traffic from the victim flows to 10.0.2.4:4443.
Memory Analysis — Volatility 3
Switching to memory forensics with Volatility 3 to enumerate running processes:

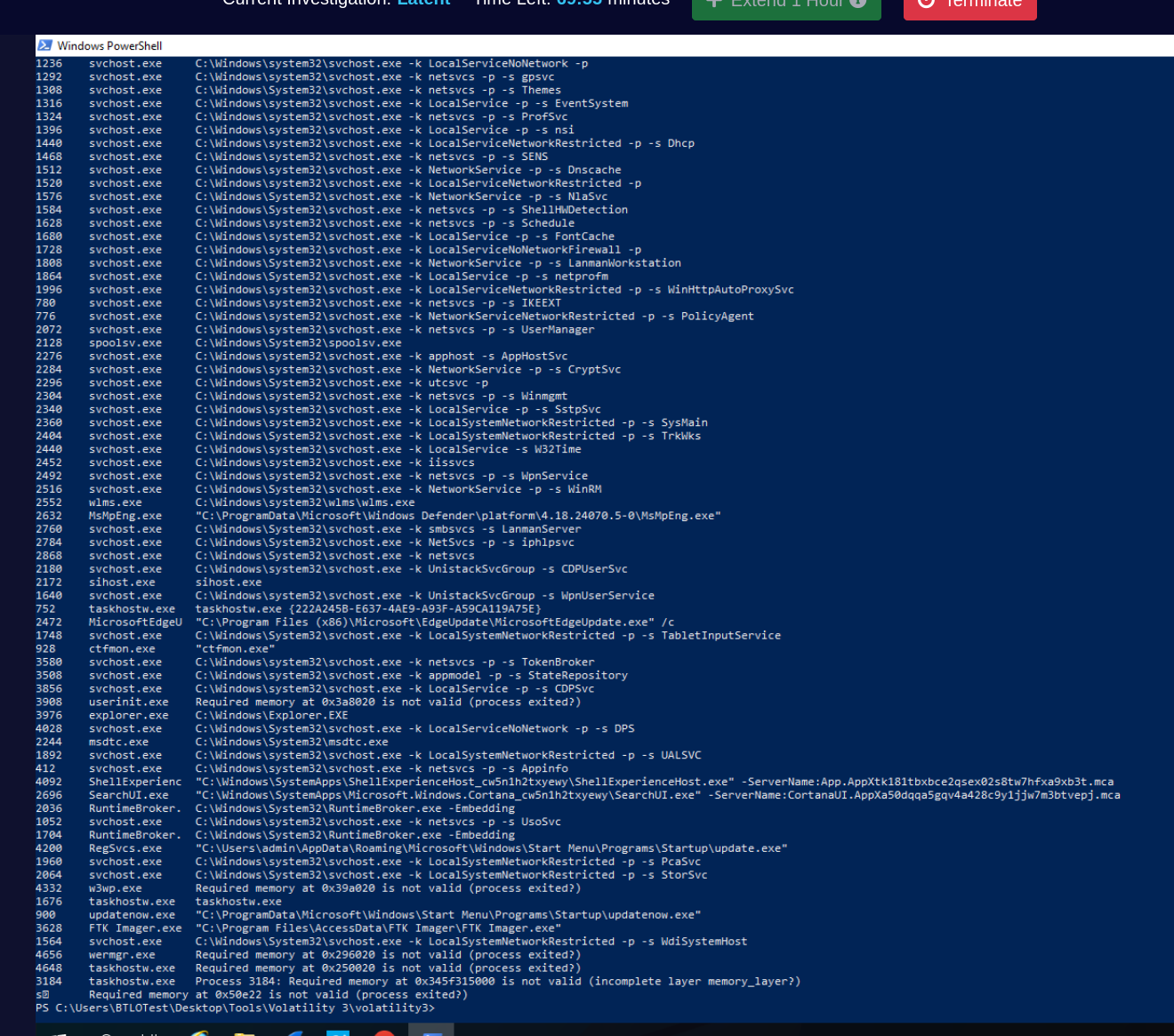

python vol.py -f memdump.mem windows.cmdline
This immediately surfaces the malicious process:
900 updatenow.exe "C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Startup\updatenow.exe"
updatenow.exe running from the Startup folder (PID 900) — the attacker moved the binary here after initial upload for persistence. The Startup path ensures updatenow.exe executes on every system boot.

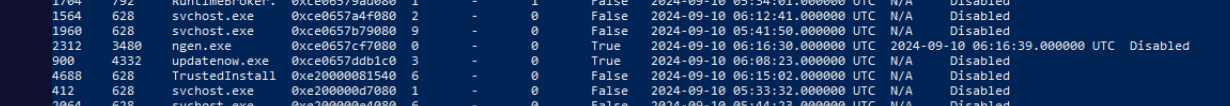

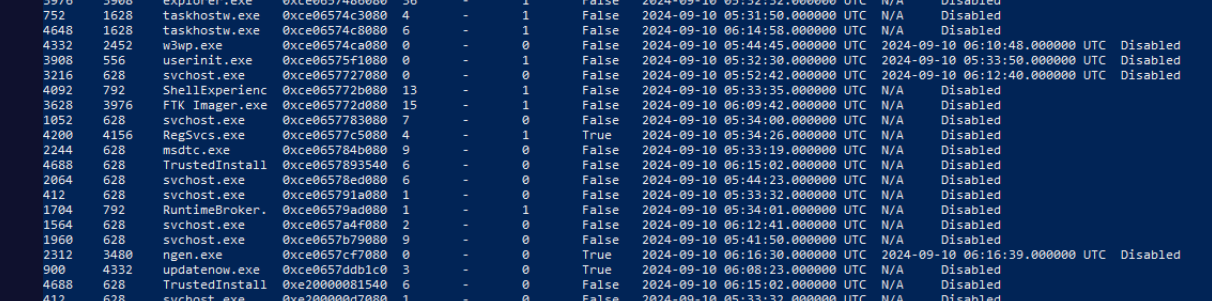

The parent process is also significant. Running psscan reveals w3wp.exe (IIS worker process) as the parent of updatenow.exe:
python vol.py -f memdump.mem windows.psscan
w3wp.exe (PID 4332) spawning updatenow.exe confirms the shell.aspx web shell executed the binary — the IIS process is the application that handled the reverse shell connection.
Virtual Address — filescan
To locate the file object in memory:
python .\vol.py -f ..\..\..\Investigation\memdump.mem -r json windows.filescan > filescan.txt
Searching the JSON output for updatenow.exe returns the file entry with its offset. Cross-referencing with psscan output provides the correct virtual address:
0xce0657ddb1c0
Note: filescan returns the offset as a decimal integer. Converting directly with printf '0x%x\n' gives a different address — the correct virtual address comes from psscan output which reads the in-memory process structure directly.
Static Analysis — PEStudio

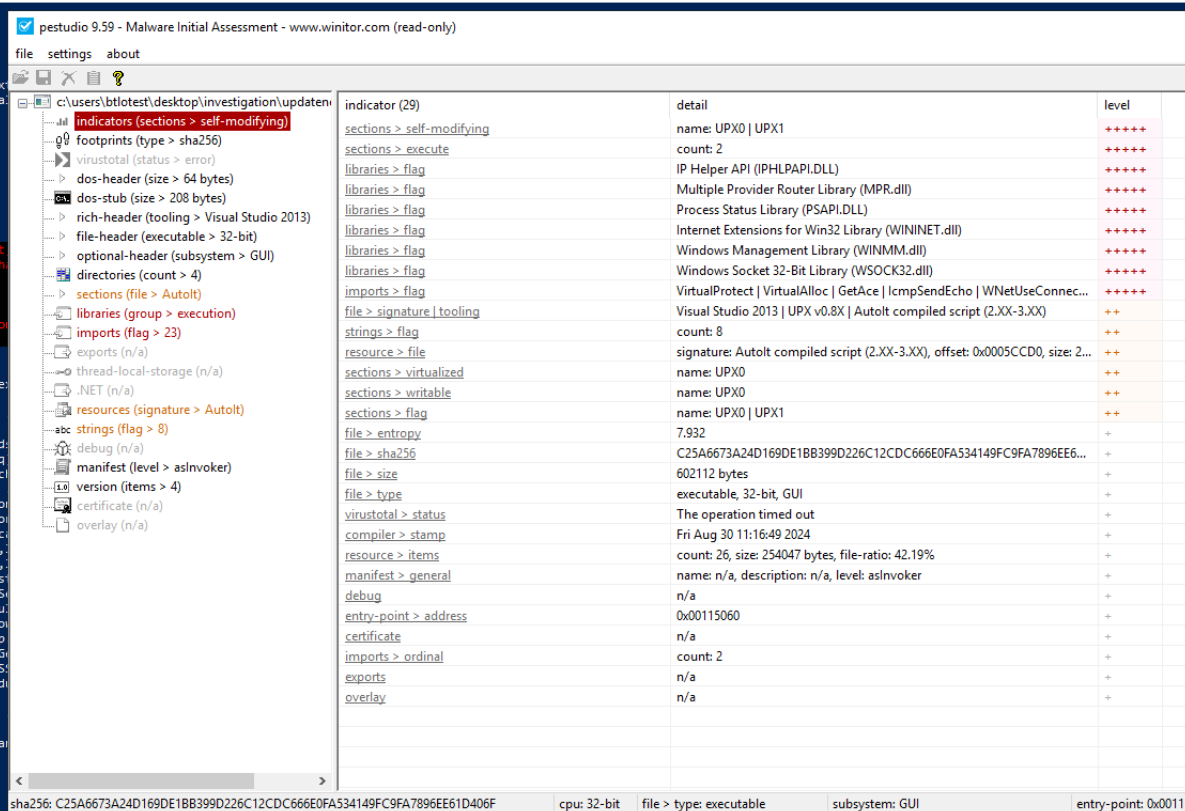

updatenow.exe loaded into PEStudio for static analysis:
Key findings:
- Packer: UPX — the binary is UPX-packed, explaining the high entropy and why traditional AV missed it at rest
- Entropy: 7.932 — anything above 7.0 strongly indicates packing or encryption

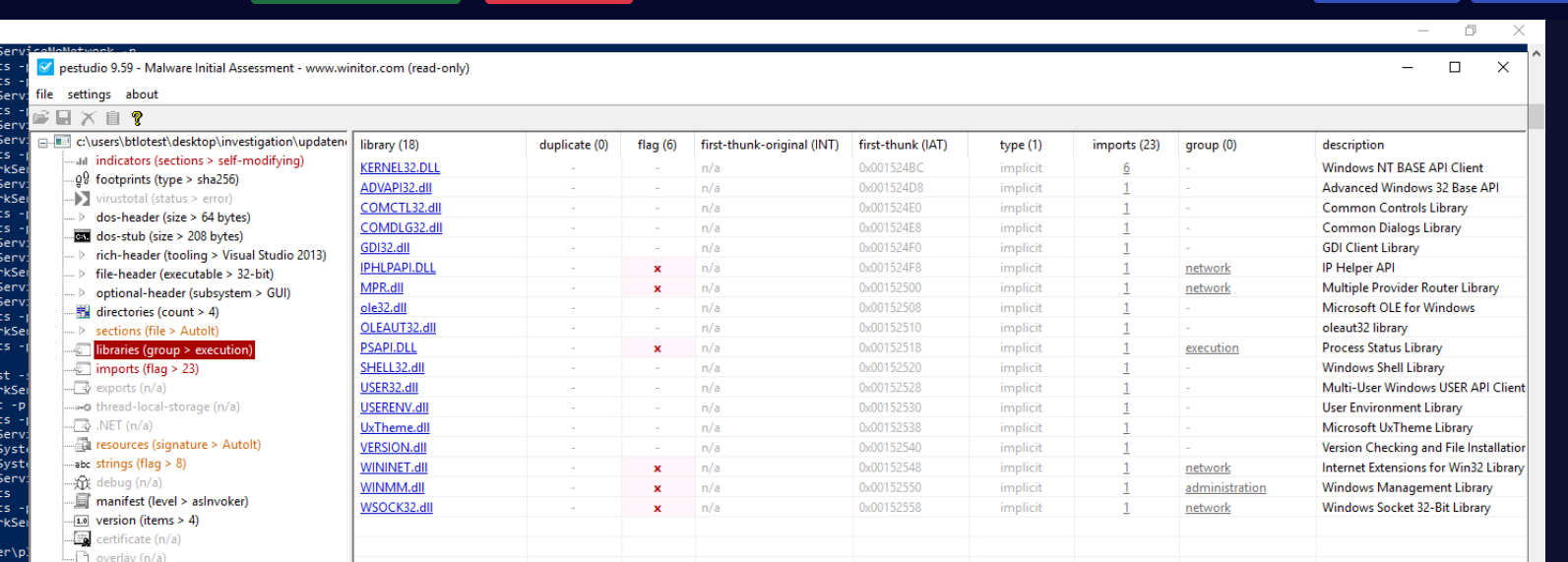

- Socket library:
wsock32.dllimported — Windows socket functionality for C2 communication
wsock32.dll is the legacy Windows socket API. Its presence confirms the malware establishes network connections — consistent with AgentTesla’s credential exfiltration over SMTP.
Threat Intelligence — VirusTotal
MD5 hash obtained via PowerShell:
Get-FileHash updatenow.exe -Algorithm MD5
MD5: D797600296DDBED4497725579D814B7E
Submitted to VirusTotal: 49/63 vendors flagged the file as malicious.
- Popular threat label:
trojan.autoit/strab - Family labels (automated): autoit, strab, formbook
- Behaviour tags: calls-wmi, checks-bios, checks-network-adapters, detect-debug-environment, long-sleeps, obfuscated, smtp-communication
The automated family labels (FormBook/Strab) conflict with manual community analysis. The VirusTotal Community tab contains an analyst report identifying the sample as AgentTesla — a commercial infostealer/keylogger sold as Malware-as-a-Service, known for SMTP-based credential exfiltration. The smtp-communication behaviour tag and wsock32.dll import both support this attribution over the automated FormBook label.
Malware Family: AgentTesla
Attack Summary
| Phase | Action |
|---|---|
| Reconnaissance | Nmap port scan from 10.0.2.4 against victim 10.0.2.15 |
| Initial Access | SMB access to \Documents share |
| Execution | shell.aspx web shell uploaded and triggered at Sep 10, 2024 01:49:39 EDT |
| C2 | Reverse shell established to 10.0.2.4:4443 via w3wp.exe (IIS) |
| Persistence | updatenow.exe moved to Startup folder — executes on every boot |
| Malware | AgentTesla infostealer — UPX packed, entropy 7.932, SMTP exfil via wsock32.dll |
IOCs
| Type | Value |
|---|---|
| IP (Attacker) | 10.0.2.4 |
| IP (Victim) | 10.0.2.15 |
| File | shell.aspx |
| File | updatenow.exe |
| MD5 | D797600296DDBED4497725579D814B7E |
| Path | C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Startup\updatenow.exe |
| Virtual Address | 0xce0657ddb1c0 |
| PID | 900 |
| Reverse Shell Port | 4443 |
| Packer | UPX |
| Malware Family | AgentTesla |
MITRE ATT&CK
| Technique | ID | Description |
|---|---|---|
| Exploit Public-Facing Application | T1190 | SMB access to Documents share used as initial foothold |
| Server Software Component: Web Shell | T1505.003 | shell.aspx uploaded to IIS web server via SMB |
| Network Service Discovery | T1046 | Nmap port scan from attacker against victim |
| SMB/Windows Admin Shares | T1021.002 | Attacker accessed \Documents share over SMB |
| Software Packing | T1027.002 | updatenow.exe packed with UPX, entropy 7.932 |
| Registry Run Keys / Startup Folder | T1547.001 | updatenow.exe placed in Startup folder for persistence |
| Application Layer Protocol | T1071.001 | C2 reverse shell over TCP to port 4443 |
| Credentials from Password Stores | T1555 | AgentTesla credential exfiltration via SMTP (wsock32.dll) |
Defender Takeaways
SMB share exposure — The attacker’s entire foothold came from accessing a writable SMB share (\Documents) without authentication or with weak credentials. SMB shares accessible from within the network without strict ACLs are a persistent entry point. Auditing share permissions and enforcing least-privilege access would have prevented the web shell upload entirely.
IIS write permissions — w3wp.exe spawning a child process (updatenow.exe) is an extremely high-fidelity detection signal. IIS worker processes have no legitimate reason to spawn executables. A single detection rule — alert on w3wp.exe creating child processes — would have caught this immediately. Most EDR products flag this by default.
Startup folder monitoring — Placing a binary in C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Startup\ is a well-known persistence mechanism. File integrity monitoring on Startup folders and Sysmon Event ID 11 watching that path would surface this within seconds of the file being written.
Entropy-based detection — Traditional AV missed updatenow.exe because UPX packing changes the file’s signature while keeping the entropy anomalously high (7.932). Static analysis tools that flag high-entropy executables arriving via unusual paths (web server write → Startup folder) provide coverage where signature-based AV fails.
Automated vs manual threat intelligence — The automated VirusTotal family labels (FormBook, Strab) conflicted with community analyst attribution (AgentTesla). In real SOC work, automated family labels are a starting point, not a conclusion. The behaviour tags (smtp-communication, long-sleeps, detect-debug-environment) and the wsock32.dll import are more reliable indicators of AgentTesla than the automated label alone. Always cross-reference automated detections with behaviour analysis and community reports.
