Defender
Scenario
Microsoft Defender Antivirus has been present for over a decade providing security against known threats — until tampered with. Admin privileges are required to tamper, but the logs serve as forensic footprints. Several questions require prior knowledge of Defender internals rather than direct log analysis.
Methodology
Exclusions — Registry Editor
Opening Registry Editor and navigating to the Defender exclusions keys surfaces the file extension exclusions configured on the system:
Two extensions are excluded from scanning — .bat and .ps1. Both are scripting extensions commonly abused by attackers, making their exclusion a significant defensive gap. An attacker who can add these exclusions can drop and execute malicious scripts without triggering Defender.
The directory exclusion (c:\windows\temp) is visible in the Defender Operational event log — Event ID 5007 (configuration changed) logged at 7/16/2021 7:11:53 AM. Excluding C:\Windows\Temp is a classic attacker move — it’s a writable system directory that most tooling drops payloads into.
Windows Defender Operational Log — Event Viewer
The Defender operational log lives at:
%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-Windows Defender%4Operational.evtx
Note the %4 separator — Windows uses this in the filename rather than a backslash for logs with subdirectory-style names.
Filtering for Event ID 5007 (configuration changed) surfaces all the tamper activity. All changes were made by the same process (PID 7072) at various thread IDs, indicating a single actor session making sequential configuration changes.

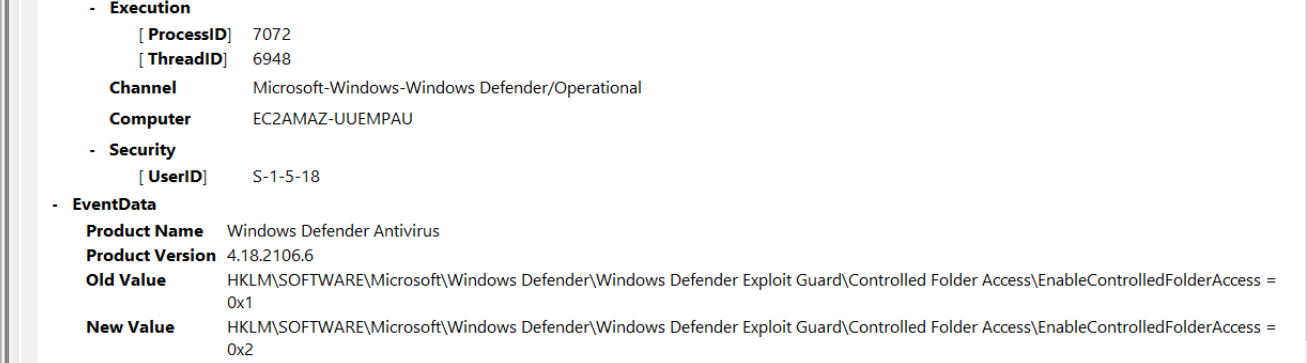

Controlled Folder Access was changed from 0x1 (Enabled) to 0x2 — mapping to AuditMode. This weakens the protection without fully disabling it, potentially to avoid detection while still allowing write access to protected folders.
MAPS (Microsoft Active Protection Service) was disabled — SpyNetReporting changed to 0x0, cutting off cloud-delivered threat intelligence:
\SOFTWARE\Microsoft\Windows Defender\SpyNet\SpyNetReporting = 0x0
Script scanning was disabled via Set-MpPreference -DisableScriptScanning $true (visible in PowerShell history), logged as a 5007 event modifying:
\SOFTWARE\Microsoft\Windows Defender\Real-Time Protection
Note: Q7’s answer format drops both the HKLM\ prefix and the value name — BTLO expects just the key path.
IOAV protection (scanning of downloaded files and attachments) was confirmed disabled via registry query:
powershell
reg query "HKLM\SOFTWARE\Microsoft\Windows Defender\Real-Time Protection" /v DisableIOAVProtection
# DisableIOAVProtection REG_DWORD 0x1
No dedicated 5007 event was generated for this change — it was likely set via direct registry write rather than through the Defender API. The change is attributable to PID 7072 based on the 1151 health report event:

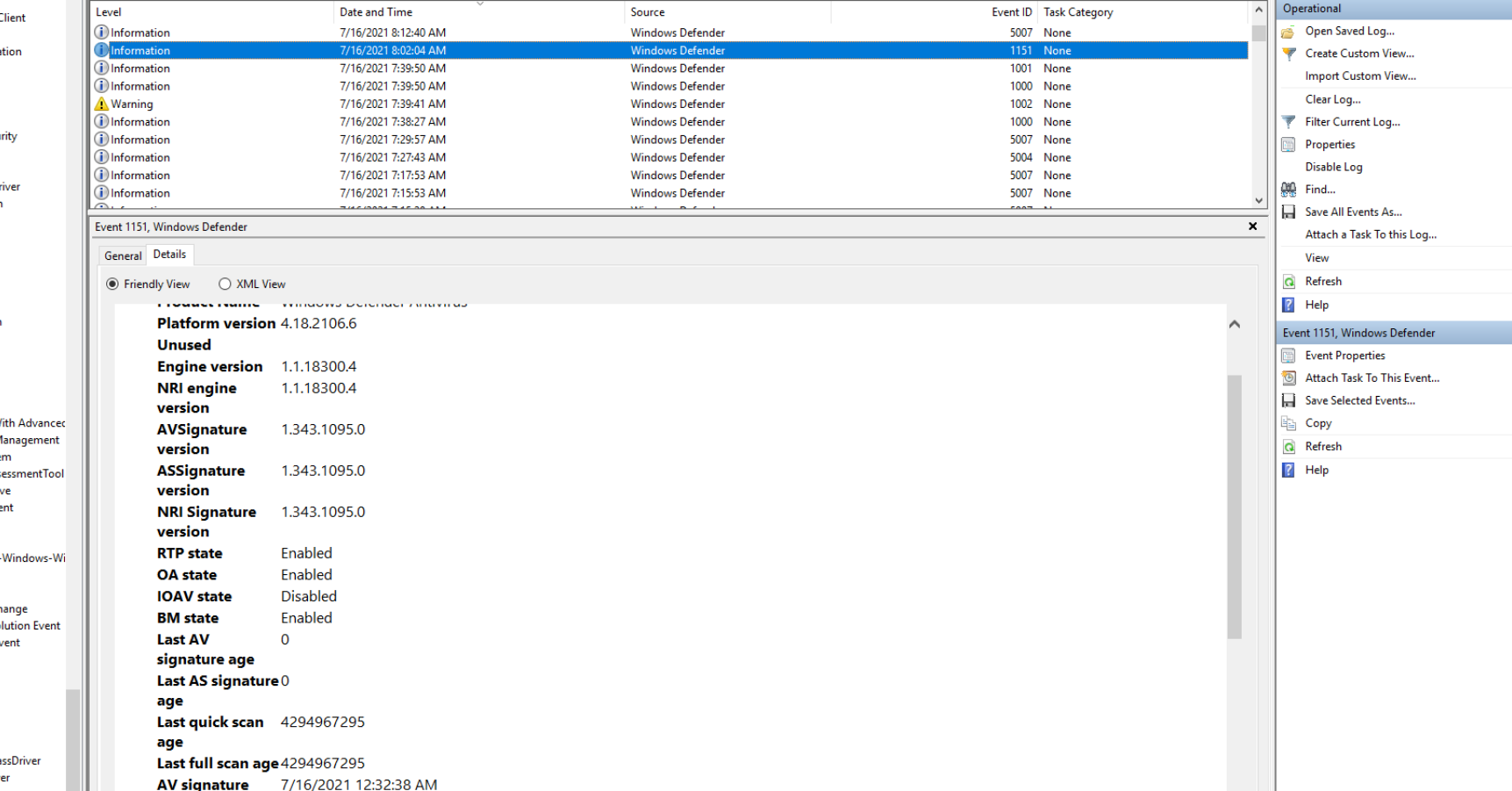

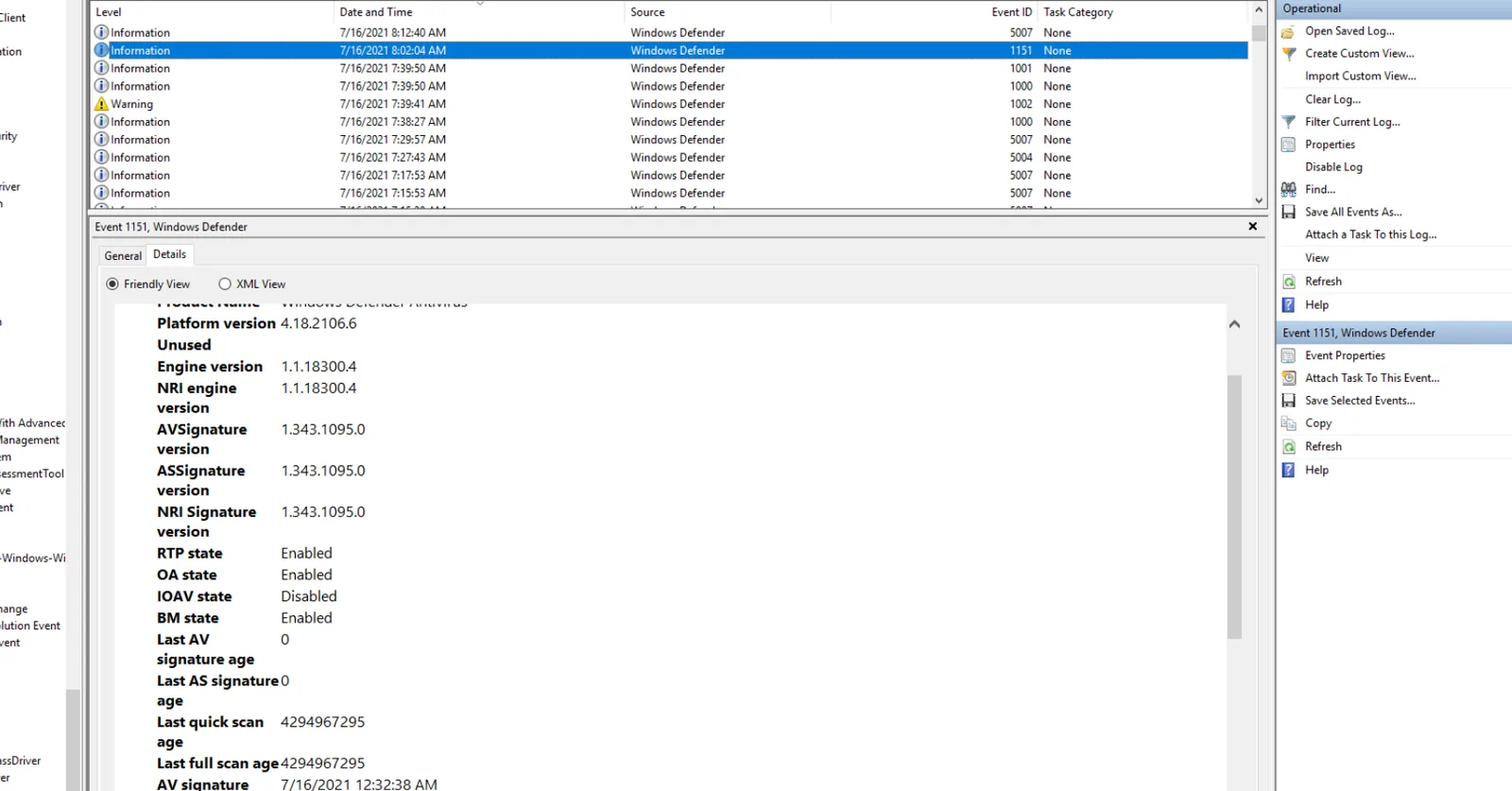

The 1151 event (Endpoint Protection client health report) confirmed IOAV state: Disabled and was generated by the same process responsible for all other configuration changes.
Tamper protection — Event ID 5013 is logged when tamper protection blocks a configuration change. The command Set-MpPreference -DisableScriptScanning $true succeeded in this lab (tamper protection was not active), but 5013 is the knowledge answer for what would be logged if it had been blocked.
Attack Summary
| Phase | Action |
|---|---|
| Defense Evasion | .bat and .ps1 extensions excluded from Defender scanning |
| Defense Evasion | C:\Windows\Temp directory excluded — common payload staging location |
| Defense Evasion | Controlled Folder Access downgraded from Enabled to AuditMode |
| Defense Evasion | MAPS (SpyNetReporting) disabled — cloud threat intel severed |
| Defense Evasion | Script scanning disabled via PowerShell (Set-MpPreference) |
| Defense Evasion | IOAV protection disabled via direct registry write |
IOCs
| Type | Value |
|---|---|
| Excluded Extensions | .bat, .ps1 |
| Excluded Directory | C:\Windows\Temp |
| Registry Key Modified | HKLM\SOFTWARE\Microsoft\Windows Defender\Real-Time Protection |
| Registry Key Modified | HKLM\SOFTWARE\Microsoft\Windows Defender\SpyNet\SpyNetReporting |
| Process | PID 7072 (all Defender config changes) |
MITRE ATT&CK
| Technique | ID | Description |
|---|---|---|
| Impair Defenses: Disable or Modify Tools | T1562.001 | Multiple Defender protections disabled — IOAV, script scanning, MAPS, controlled folder access |
| Modify Registry | T1112 | Direct registry writes used to disable IOAV bypassing Defender API logging |
| PowerShell | T1059.001 | Set-MpPreference used to disable script scanning via PowerShell |
Defender Takeaways
Tamper protection should always be enabled — the most significant finding here is that tamper protection was not active, allowing all these changes to succeed. With tamper protection enabled, the PowerShell command would have generated a 5013 event and been blocked. Enabling tamper protection via Intune or Group Policy is a one-step control that prevents the entire attack chain documented in this lab.
Monitor Event ID 5007 as a high-fidelity detection — every Defender configuration change generates a 5007. Alerting on 5007 events outside of scheduled maintenance windows — particularly changes to exclusions, MAPS reporting, and real-time protection settings — provides early warning of tamper activity. SIEM rules on 5007 with DisableIOAVProtection, SpyNetReporting = 0x0, and exclusion additions are practical starting points.
Script extension exclusions are a red flag — excluding .ps1 and .bat from scanning has almost no legitimate use case in a corporate environment. Baselining Defender exclusion lists and alerting on new exclusion additions — particularly for scripting extensions — is a cheap and effective detection.
Direct registry writes bypass API logging — IOAV was disabled without generating a 5007 event by writing directly to the registry rather than using Set-MpPreference. Detecting this requires Security event log auditing (Event ID 4657 — registry value modified) on sensitive Defender registry paths. 5007 alone is insufficient for complete coverage.
C:\Windows\Temp exclusion enables payload staging — excluding the system temp directory from scanning creates a reliable staging ground for malware. File integrity monitoring or at minimum Defender exclusion alerting on C:\Windows\Temp additions should be standard in any hardened environment.
