Andromeda Bot - UNC4210

Scenario

SecuTech’s DFIR team is responding to a breach affecting multiple endpoints. Alerts suggest the infection spread via removable devices. A memory image from one of the compromised machines has been provided — the objective is to trace the infection source, identify malware propagation artefacts, and assess the full scope of the breach.

Methodology

Memory Mounting — MemProcFS

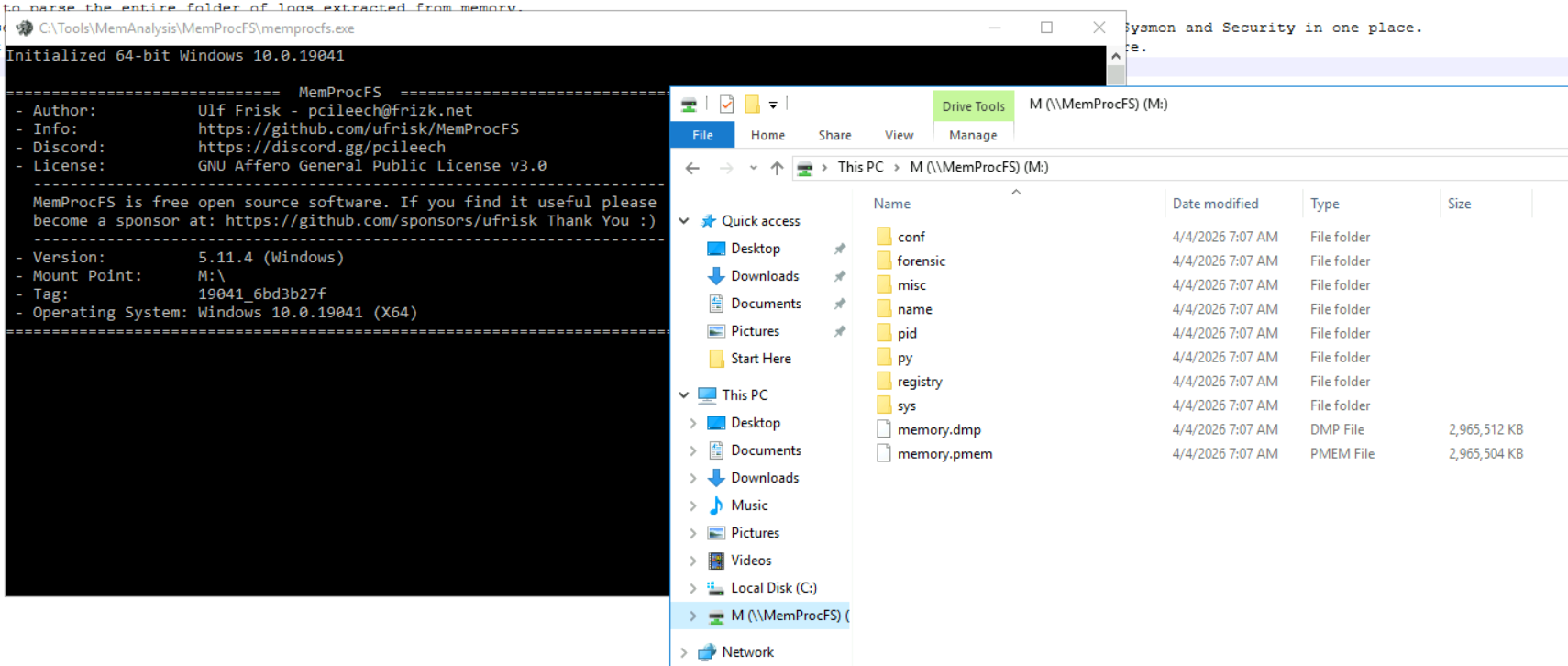

Rather than running Volatility plugins sequentially, the memory image is mounted as a live filesystem using MemProcFS, exposing registry hives, event logs, and process artefacts as browsable files:

memprocfs.exe -f "C:\Users\Administrator\Desktop\Start Here\Artifacts\memory.dmp"

This mounts the image to M:\ — giving direct access to the registry, event logs, and process memory without plugin invocations for each artefact type.

USB Device Identification — Registry

The USBSTOR registry key records every USB storage device that has connected to the system. Navigating to the mounted registry hive surfaces the device entry:

M:\registry\HKLM\SYSTEM\ControlSet001\Enum\USBSTOR\Disk&Ven_VendorCo&Prod_ProductCode&Rev_2.00\7095411056659025437&0

The serial number 7095411056659025437&0 uniquely identifies the removable device used as the infection vector — this is the pivot point for the entire investigation. USB serial numbers are persistent across systems, meaning this device can be tracked across any other endpoint that logged its insertion.

Event Log Extraction — EvtxECmd

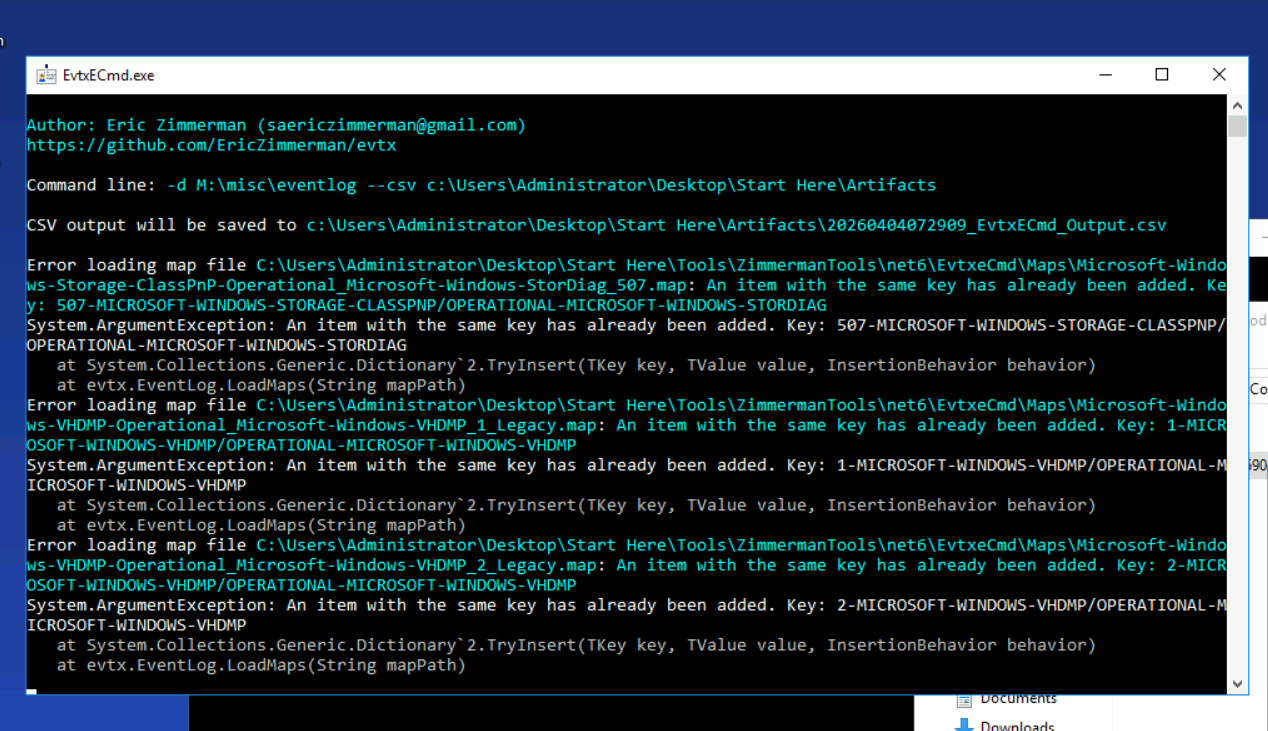

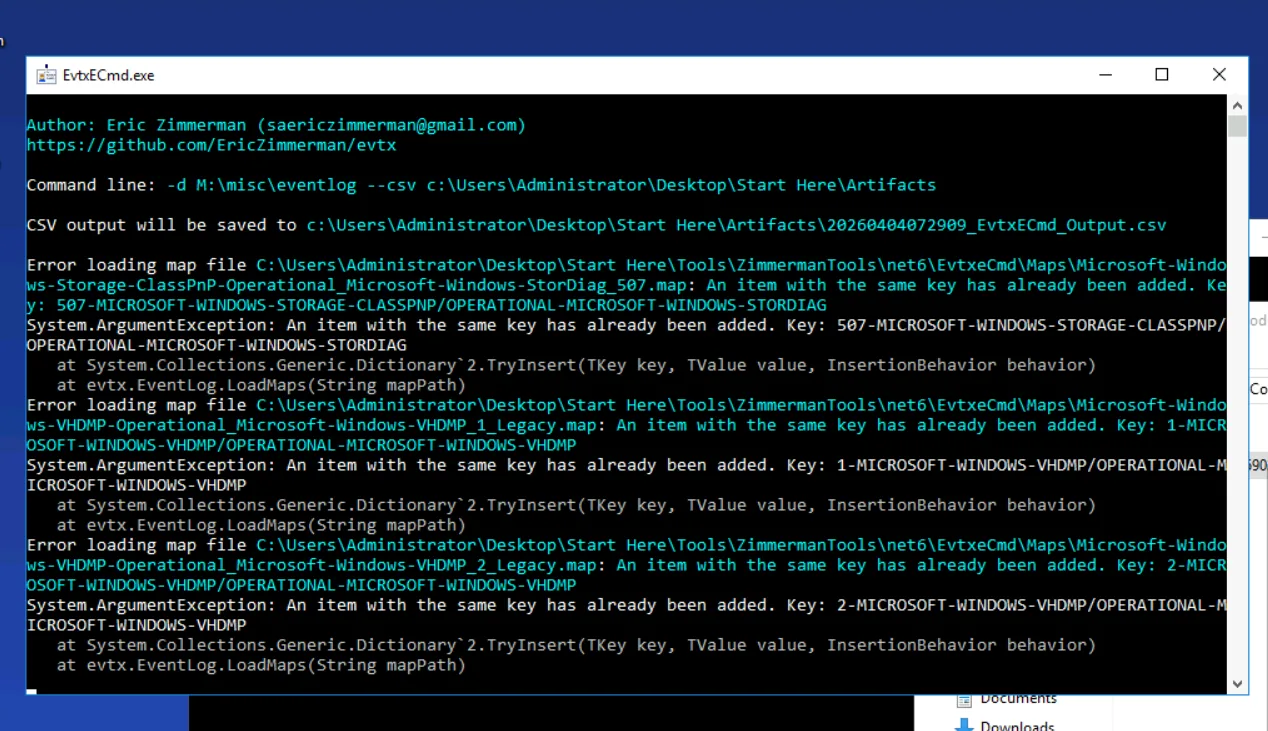

With the memory mounted, event logs are extracted from M:\misc\eventlog and converted to CSV for Timeline Explorer analysis:

EvtxECmd.exe -d M:\misc\eventlog --csv "C:\Users\Administrator\Desktop\Start Here\Artifacts"

Timeline Analysis — USB Insertion Timestamp

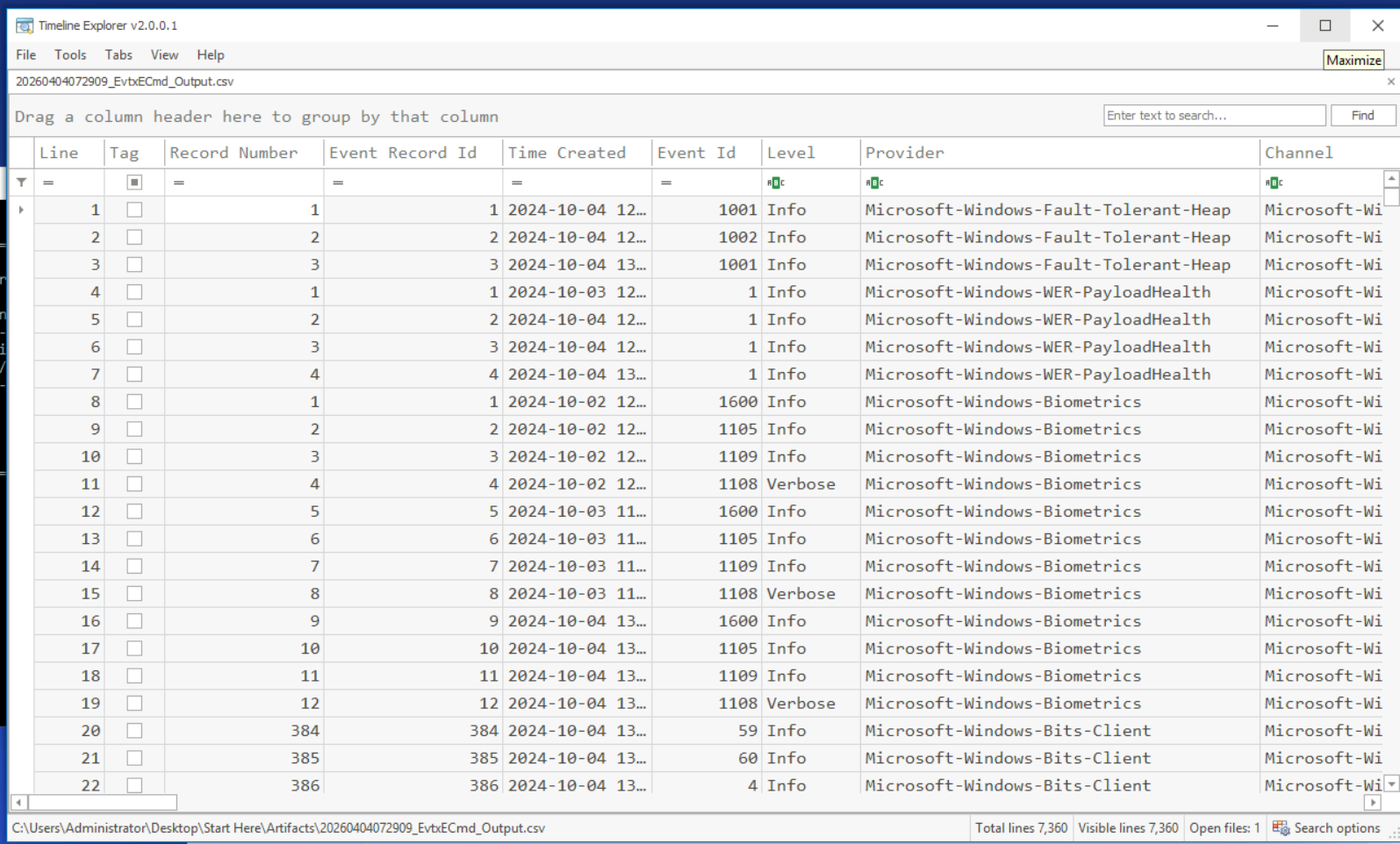

Opening the exported CSV in Timeline Explorer and filtering for USB-related events establishes the infection timeline:

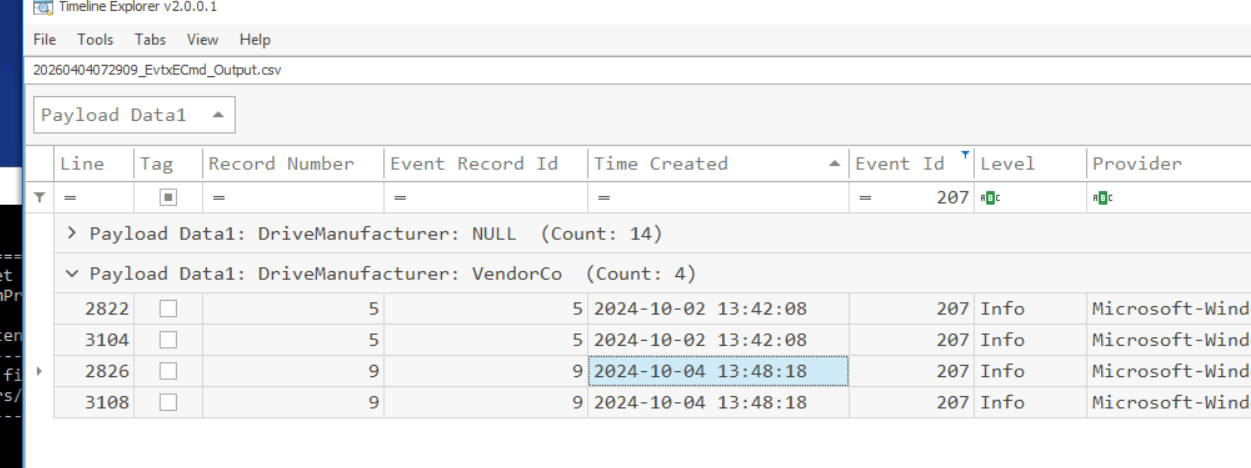

The USB device was last inserted at 2024-10-04 13:48 — this timestamp anchors the investigation. All subsequent malicious activity can be correlated forward from this point.

Execution — Sysmon Event ID 1

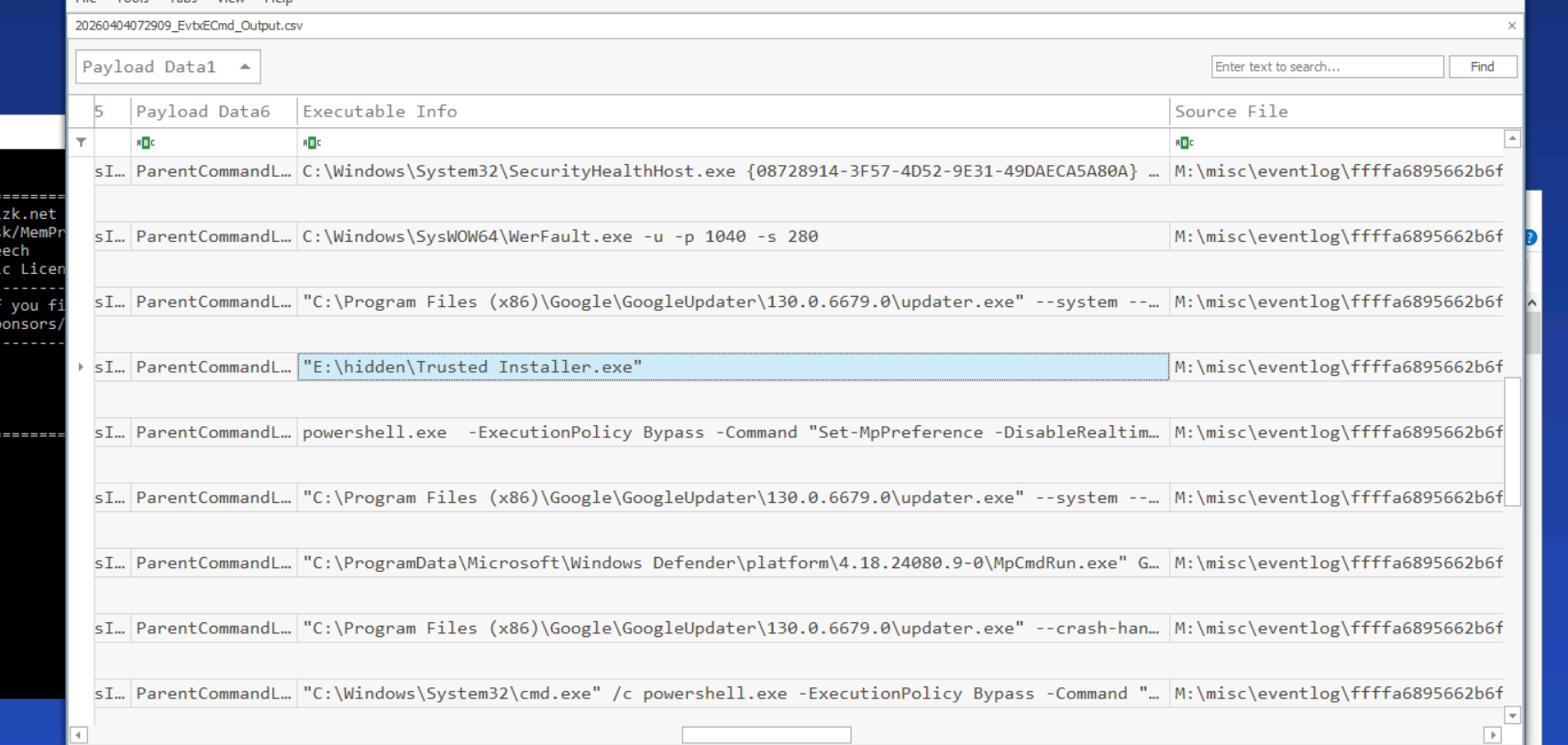

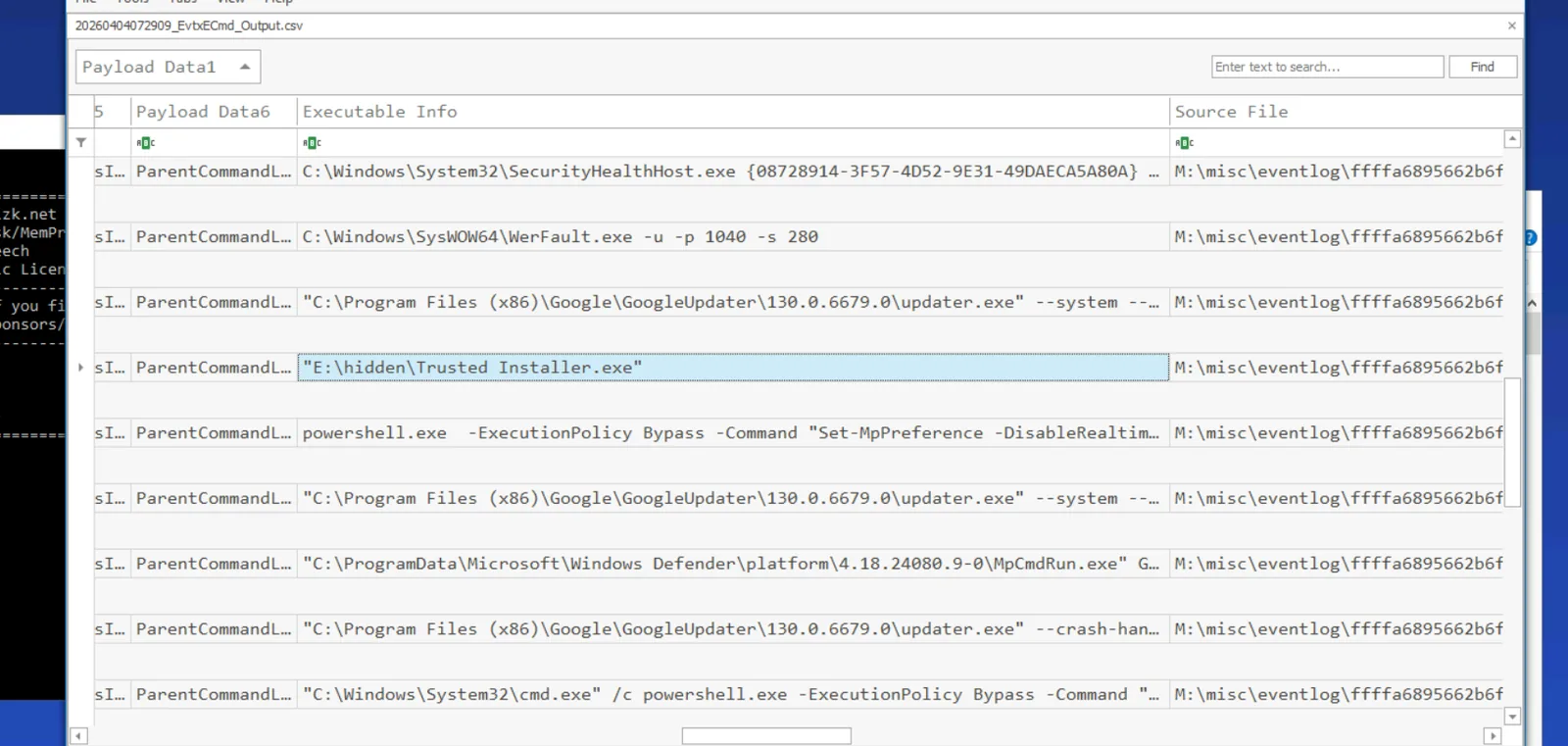

Filtering logs for Sysmon process creation events (Event ID 1) reveals the executable launched from the USB device immediately after insertion:

E:\hidden\Trusted Installer.exe

The masquerading is deliberate — TrustedInstaller.exe is a legitimate Windows system process responsible for Windows Update operations. Placing a malicious binary with this name in a hidden directory on a USB device exploits the implicit trust users place in familiar process names. This is T1036.005 — Masquerading via Match Legitimate Name.

Threat Intelligence — Andromeda / UNC4210 Attribution

The executable path and behaviour pattern matches published threat intelligence. Cross-referencing with the NEC Security Blog report on Andromeda:

Reference: NEC Security Blog — Andromeda Analysis (2024-08-23)

The C2 URL used by the bot to download its configuration file is identified as:

hxxp[://]anam0rph[.]su/in.php

The dropper filename identified in threat intelligence is Sahofivizu.exe — a component of the Andromeda bot framework reactivated by the threat actor UNC4210, later attributed to Turla (FSB-linked Russian APT) by Mandiant:

Reference: Mandiant Threat Intelligence — Turla Galaxy of Opportunity

Hash Verification — VirusTotal

Log filtering surfaces the hash values for the dropped executable:

MD5:    7FE00CC4EA8429629AC0AC610DB51993
SHA256: 9827E20FFED86C23DD493845F03A9041977C5CF0E5DA14EDFEB7EDADFAA34508
IMPHASH: DB5FEF752F497DBF87C18EC9E09857F0

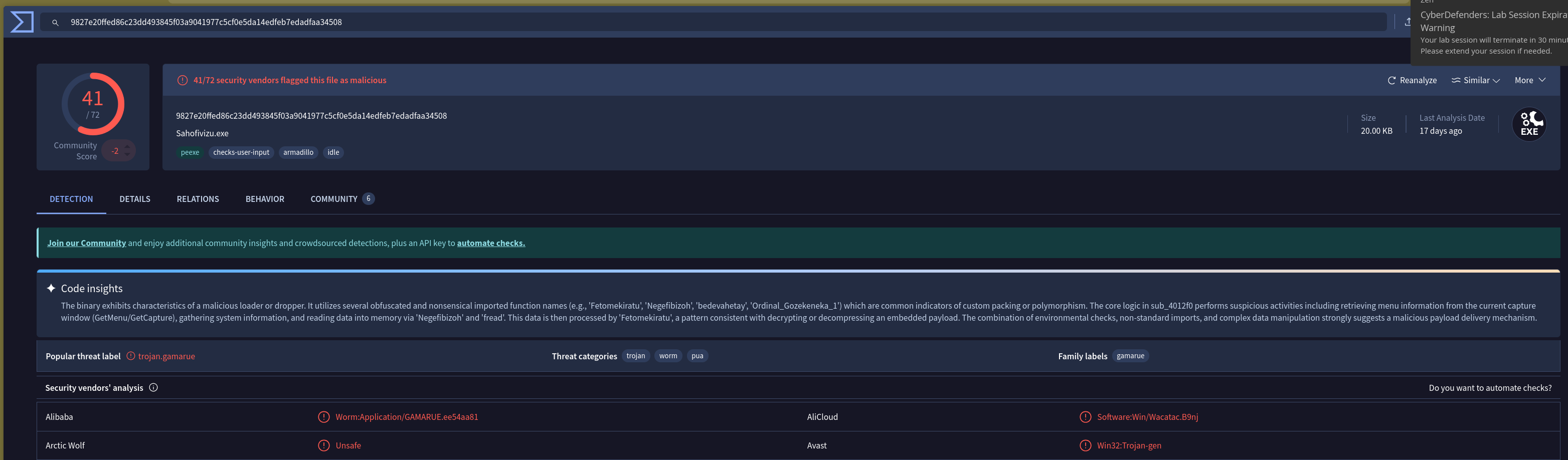

VirusTotal confirms the sample as Andromeda/Gamarue:

DLL Drops — Sysmon Event ID 11

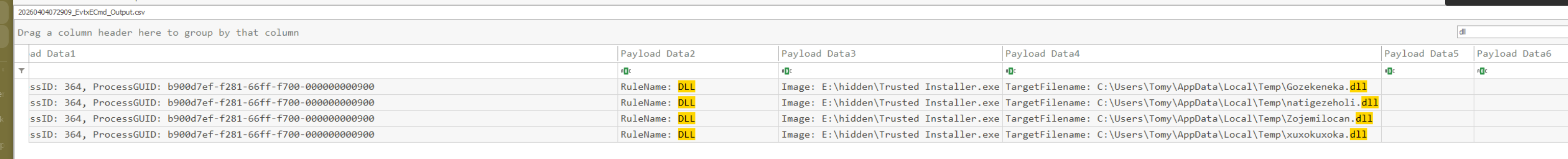

Filtering logs for Sysmon file creation events (Event ID 11) and searching for .dll returns four entries, all created simultaneously — consistent with a dropper unpacking its payload components in a single execution:

The first DLL dropped lands at:

C:\Users\Tomy\AppData\Local\Temp\Gozekeneka.dll

AppData\Local\Temp is a standard dropper staging location — writable without elevation, excluded from many AV scans by default, and cleaned on reboot making forensic recovery time-sensitive.

Attack Summary

IOCs

MITRE ATT&CK

Defender Takeaways

USB autorun and device control are non-negotiable in enterprise environments — the entire infection chain began with a USB insertion. Group Policy can enforce device control policies that prevent unauthorised removable media from executing content or even mounting entirely. In a financial or critical infrastructure environment, USB storage should require explicit allowlisting by device serial number — exactly the serial number we recovered from USBSTOR.

MemProcFS dramatically accelerates memory forensics workflows — mounting a memory image as a filesystem and accessing registry hives, event logs, and process artefacts as files eliminates the sequential plugin invocation overhead of traditional Volatility analysis. For time-sensitive IR engagements, the ability to open event logs directly in Timeline Explorer without intermediate extraction steps is a meaningful efficiency gain.

Sysmon Event ID 11 (FileCreate) is essential for dropper detection — without Sysmon deployed, the DLL staging to AppData\Local\Temp would leave no persistent log artefact. The four simultaneous DLL creation events at identical timestamps is a high-confidence dropper execution signature. Sysmon deployed with a mature configuration (SwiftOnSecurity or Olaf Hartong baseline) provides the visibility required to reconstruct this activity.

Threat intelligence pivoting from a single IOC unlocks attribution — the C2 URL anam0rph.su and dropper filename Sahofivizu.exe were sufficient to connect this sample to published Andromeda/Gamarue analysis and ultimately to Turla/UNC4210 via the Mandiant report. Maintaining TI feed subscriptions and practising IOC pivoting on VirusTotal and open-source reports is a core DFIR skill that converts a malware sample into a full threat actor profile.

Masqueraded process names require context not just name matching — TrustedInstaller.exe running from E:\hidden\ is immediately suspicious, but a detection rule matching only on process name would miss it entirely since the name is legitimate. Detection rules must validate the full image path — legitimate TrustedInstaller.exe lives exclusively in C:\Windows\servicing\. Any instance of this process name running from a non-standard path should alert immediately.
